Draw Shape Features Point Cloud Task
*This feature is available in the Standard license level and above for LP360.
About the Draw Shape Features Point Cloud Task
The Draw Shape Features Point Cloud Task allows you to output Shapefiles from input geometry using the I/O Manager.
How to use the Draw Shape Features Point Cloud Task
1. Use the Add Files command to open the files that contain the data you want to use.
2. Use the Add Task command to create a new point cloud task. When you are selecting a Task Type in the Add Point Cloud Task dialog, select Draw Shape Features. Once you click OK, you should see the unique name that you gave your task selected in the list and the Draw Shape Features property page displayed on the Point Cloud Task tab.
3. Specify the settings for the Draw Shape Features operation in the Properties page that displays. Use the appropriate tool from the LP360 Point Cloud Tasks toolbar to create the desired shape.

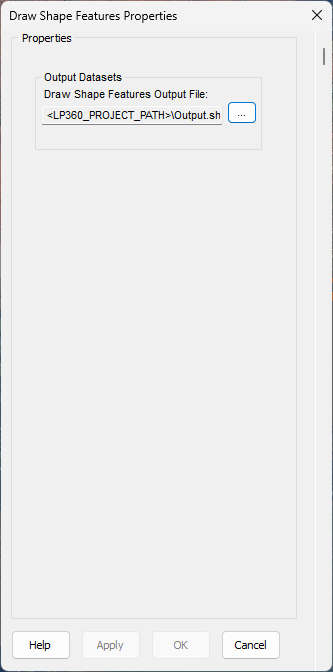

Overview of the Draw Shape Features Point Cloud Task
Output Data Sets
-
Draw Shape Features Output File - The input geometry are written to a shapefile. It can also be set within the I/O Manager by clicking the (...) button.
