Feature Layers Property Page

The feature layers property page allows the user to select feature layers within their map to draw within the profile and 3D viewers. Only feature layers are listed in the property page, and 2D layers must be accompanied by a field that defines the z value to use for drawing the geometry. If the layer is 3D the z values are obtained from the vertices in the geometry by default. The user can override this setting by selecting another field. Feature layers that are 3D are drawn automatically in the profile and 3D viewers unless the user turns off that layer in each respective viewer.

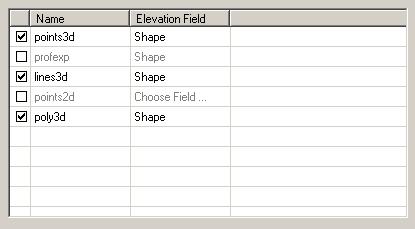

Picture of the Feature Layers Property Page

• Learn more about the source layers

  • How to toggle the use of a feature layer

  • Selecting an Elevation Field

  •
