Identify Tool

The Identify tool in LP360 can be used to identify attributes about LAS layers, Raster Layers, and features in an open project. To use this tool, select the Identify icon on the Navigation Bar, then select the point (or feature) you are interested in. This selection can be performed in all views within LP360 (3D View, Profile View, Map View, and Immersive View).

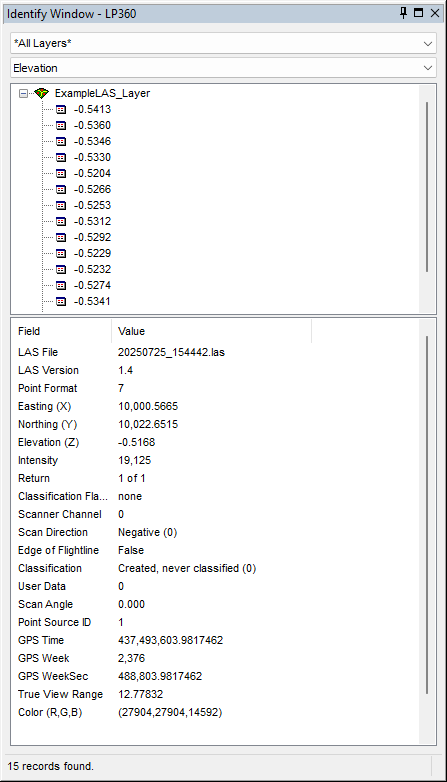

After selecting a desired data, the Identify tab (figure 1) will open. This tab can be located at the bottom of the Table of Contents.

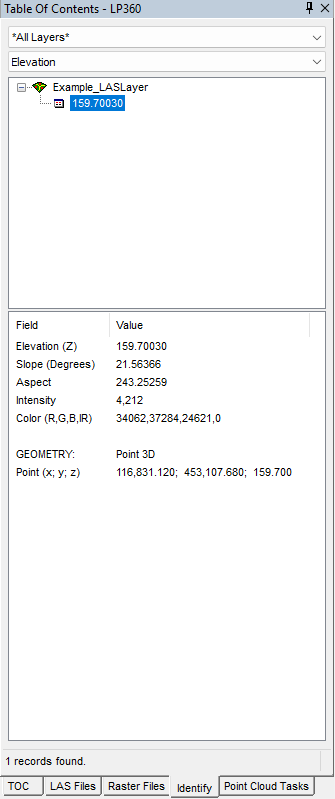

Figure 1: Identify Tab
