Toggling Hillshading

Hillshading of the TIN surface can be toggled on or off to produce the visual effect you wish to achieve. You typically will always use hillshading as it adds realistic visual results to the terrain surface. However, the position of the light source may create shadows that block the visibility of the terrain in some areas. Toggling the hillshading off or changing the sun position is an effective way to deal with shadow areas when performing QA/QC of the LIDAR data.

Learn more about hillshading

How to Toggle Hillshading

Hillshading Toggle for the Map View

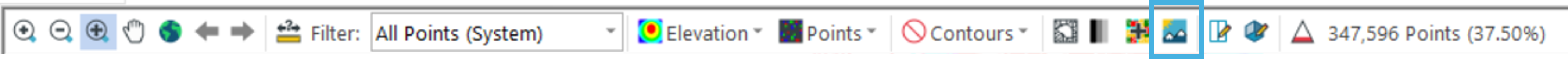

1. With the TIN surface displayed, press the Hillshade Toggle on the LP360 Map Toolbar to toggle the use of hillshading on or off in the Map View.

Hillshading Toggle for the 3D Window

1. Within the 3D Window, press the Hillshade Toggle to toggle the use of hillshading on or off in the 3D Window.

How to use Hillshading

Learn how to use Hillshading
