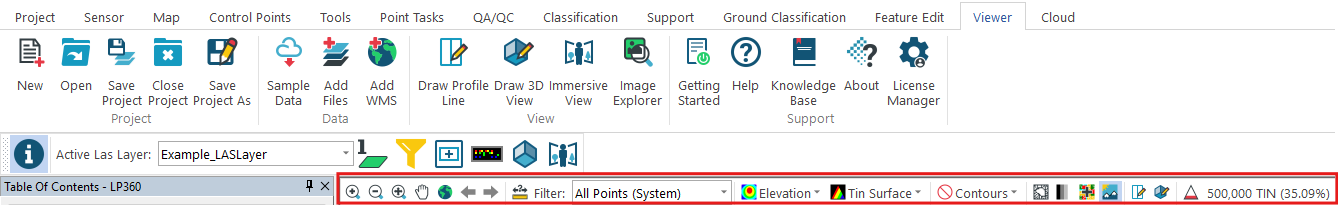

Map Toolbar
The LP360 Map toolbar allows the user to select tools to help quickly navigate around the Map View, as well as do things like measure the distance between features and identify features.
| Identify (left click to identify features in the map and see the intersections of map layers) | |
| Zoom In (zooms in about the point where the user clicks or draw a zoom box) | |
| Zoom Out (zooms out about the point where the user clicks or draw a zoom box) | |
| Continuous Zoom and Pan (left click to zoom the map in or out and right click to pan) | |
| Pan (by dragging the left mouse button) | |
| Full Extent (zooms to the full extent of the map) | |
| Measure (measures distances in the map by left-clicking to insert vertices) | |
| Zoom Previous (zooms to the previous extent of the map) | |
| Zoom Next (zooms to the next extent of the map) | |
| Active Las Layer |
| Draw Profile Line | |
| Draw 3D Viewer Extent | |
| Center Viewers | |
| Force 100% Resolution | |
| Number of Points and Resolution Label |
