Forcing the Draw of All Points

LP360 Support
  • Updated




Forcing Points to be Drawn at 100% Resolution



By default, a LIDAR Layer draws thinned points to the map. Due to the dense nature of LIDAR data, this greatly enhances browsing performance. However, if you need all points drawn in the map, you can use the Force 100% Resolution command to draw all points in the active LIDAR Layer to the map for the current extent.

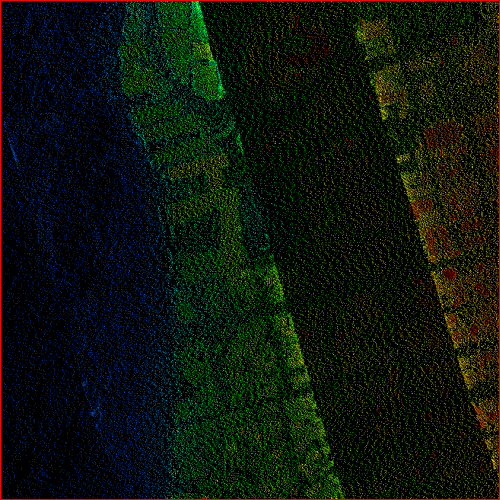

Thinned Points

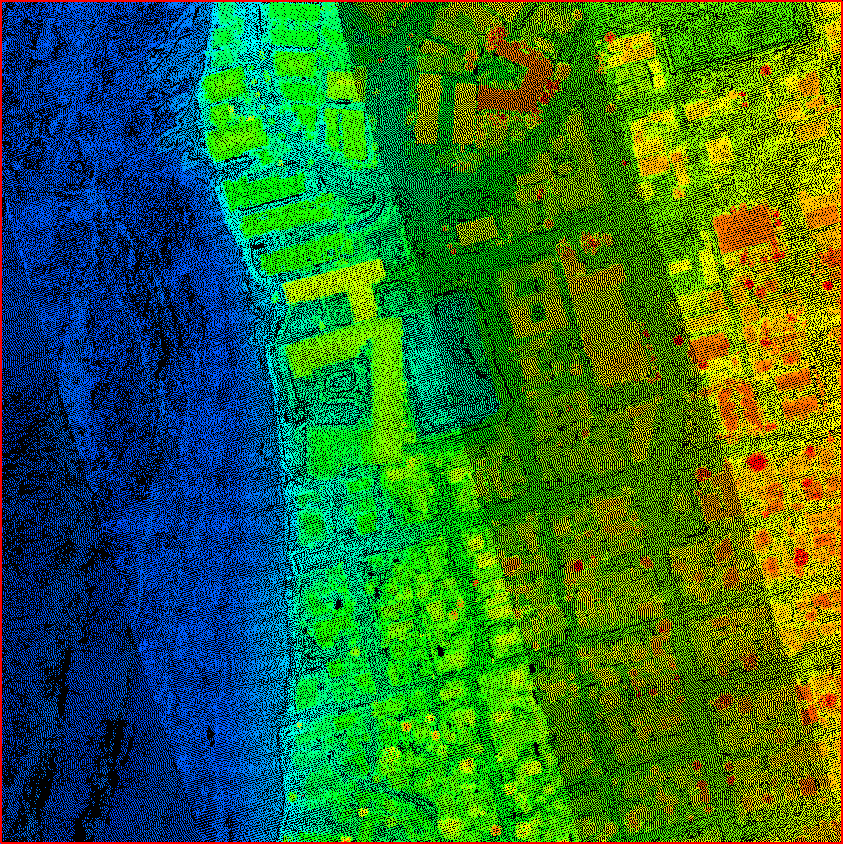

All Points



How to Force 100% Resolution

Click the Force 100% Resolution command forceallpoints.png on the LP360 toolbar. While Force 100% Resolution is active, all points will be automatically drawn in the map. When you click the command button again to deactivate it, the thinned points will again be drawn in the map for the active LIDAR Layer.

Tip  If the map is zoomed out too far, and too many points are being drawn, press Esc to cancel drawing. The maximum number of points drawn to the map will be limited to the maximum point cache size, a setting that you can modify on the Properties dialog box. For more information on display performance options, see Modifying LIDAR Layer Display Performance Options.
