The Calibration File dialog is used to define which Calibration file to use when Geocoding data or Photo Processing . The Calibration files imported with the Cycle file may not be the most recent one available for your sensor. LP360 automatically checks for an updated calibration file.

Use Latest Available Calibration File

Downloads the most recent calibration and applicable calibration file managed by Reckon. Recommended and default when available.

Diagnostic Only

Manually Select from Calibration Files on Reckon

Use to override the automatic selection of the calibration file and open the Select Calibration File dialog (Figure 2) to manually select the desired calibration file based on the date and/or description from the number of available files. Only files potentially applicable to the hardware series will be presented.

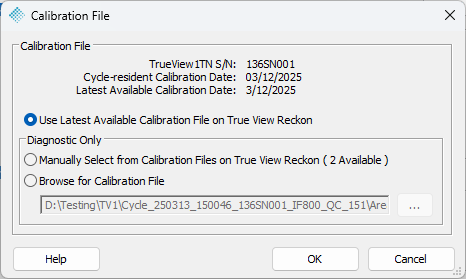

Figure 1: Calibration File selection dialog

Figure 2: Select Calibration File dialog

Browse for Calibration File

Select this option to use the file imported with the Cycle. Use this option when processing offline, or if there are no updates available via Latest Calibration Date, or if you have been provided by support with a special System Configuration file to use.

Overwrite the calibration file?

When executing Sensor Processing  jobs, you may be asked to Overwrite the Calibration File.
