Single Cycle Mode

Enabling Single Cycle Mode on the Sensor Tab will display layers relevant to the Active Cycle making for an efficient way to toggle view groups in the TOC for easier management of multi-Cycle processing.

The Single Cycle Mode is a shortcut configuration for the standard Use mode in Project Manager where, layers are live, and you can modify the display by changing the layers listed in the Table of Contents (TOC). Members of the active Cycle display group are configured automatically during Cycle Import but may be modified by using the Groups -> Build mode (Figure 1) on the Groups/Layers tab of Project Manager . The build mode allows one to set up new groups, edit existing groups, and delete groups you no longer need. You can also automatically create groups based on unique Cycle or temporal data. Use the Refresh button to update the Table of Contents to see any changes you have made. In build mode, select the group to modify on the left, then layers can be configured as Visible, Member, Base, and/or ImageExplorer.

Visible – The layer is enabled in the TOC and visible in the map view when the view group is selected when in the Use mode.

Member – The layer is part of the selected group and displayed on the TOC when the view group is selected when in the Use mode.

Base – Denotes the layer is a base layer, such as a WMS layer.

Image Explorer – Denotes the layer is suitable for use by Image Explorer . LP360 disables the photo layer when it creates the Retained Photos layer to remove the photos in turns and takeoff and landing from being displayed in Image Explorer .

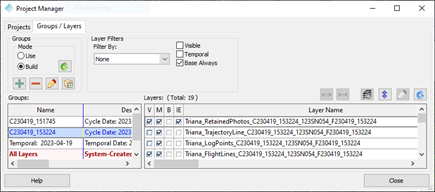

Figure 1 - Build Mode in the Groups/Layers tab of Project Manager
