Live Stream – LP360

The Live Stream tool in LP360 displays and records LiDAR data in real time from supported TrueView payloads or replays previously streamed data for review. It is commonly used for field verification, sensor checks, and validating coverage during flight.

Prerequisites

LP360 installed
A TrueView payload capable of LPLAS live streaming (e.g., TrueView 515vB with live stream firmware)
Computer connected to the payload’s network
Correct IP addresses and port configuration for the payload
Optional: LPLAS stream files for Replay mode

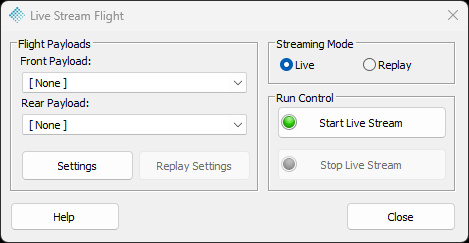

Live Stream Flight Window

Flight Payloads

Front Payload / Rear Payload: Select known payloads from the dropdown lists.
Settings: Opens the Live Stream Settings dialog to add or configure payloads.
Replay Settings: Opens settings for Replay mode.

Streaming Mode

Live: Streams LiDAR data directly from the payload.
Replay: Replays LPLAS stream files from disk.

Run Control

Start Live Stream: Begins live streaming or replay.
Stop Live Stream: Ends the stream and closes connections.

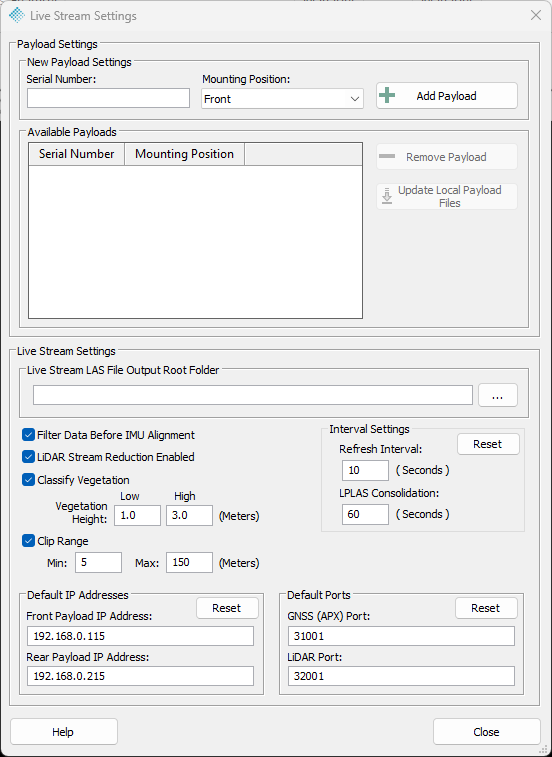

Live Stream Settings Window

Payload Settings

New Payload Settings

Serial Number: Enter the payload serial number.
Mounting Position: Choose Front or Rear.
Add Payload: Saves the new payload definition.

Available Payloads

Remove Payload: Deletes the selected entry.
Update Local Payload Files: Refreshes cached payload configuration files.

Live Stream Settings

Live Stream LAS File Output Root Folder

Select the folder where LPLAS stream files are written during live or replay operations.

Processing Options

Filter Data Before IMU Alignment: Reduces noise before alignment stabilizes.
LiDAR Stream Reduction Enabled: Downsamples data to lower processing load.
Classify Vegetation: Applies real-time vegetation classification using defined height ranges.
Vegetation Height Low/High: Height band (in meters) for classification.
Clip Range Min/Max: Discards points outside the specified distance range.

Interval Settings

Refresh Interval: How often the live display updates.
LPLAS Consolidation: Time interval for writing consolidated LPLAS files.
Reset: Restores defaults.

Default IP Addresses

Front Payload IP Address: Default network address for the front payload.
Rear Payload IP Address: Default address for the rear payload.
Reset: Restores standard values.

Default Ports

GNSS (APX) Port: Port used for GNSS/IMU packets.
LiDAR Port: Port used for LiDAR data.
Reset: Restores defaults.

Using Live Stream

Live Mode

Connect the computer to the payload’s network.
Open Live Stream .
Select Live mode.
Select the front or rear payload.
Confirm IP addresses and ports.
Press Start Live Stream.
Monitor live points, clipping, vegetation classification, and coverage.
Press Stop Live Stream when done.

Replay Mode

Select Replay mode.
Open Replay Settings and choose LPLAS folders.
Adjust playback options if available.
Press Start Live Stream to begin replay.

Saving Streamed Data

LPLAS stream files are automatically written to the selected output folder. These can be:

Loaded into LP360 for processing
Used for training or troubleshooting
Consolidated into standard LAS files
