Folders

The Folders  tool on the Cloud Tab of the ribbon opens LP360 Cloud in the default web browser, where you can manage, consult details and share your files with other users. Use the Folders  section to organize your data in the Cloud in the same manner you would organize them on your desktop. There are three special pinned folders, the LP360 Sample Data Folder, Cycle - Archive Folder, and the Support Folder, plus any Project Folders created using tools in LP360 Desktop. Selecting a folder will display the Cloud Layers contained therein.

All the data in LP360 Cloud Folders can be accessed by any user of an organization. This allows multiple users within the same organization to easily share and collaborate on data.

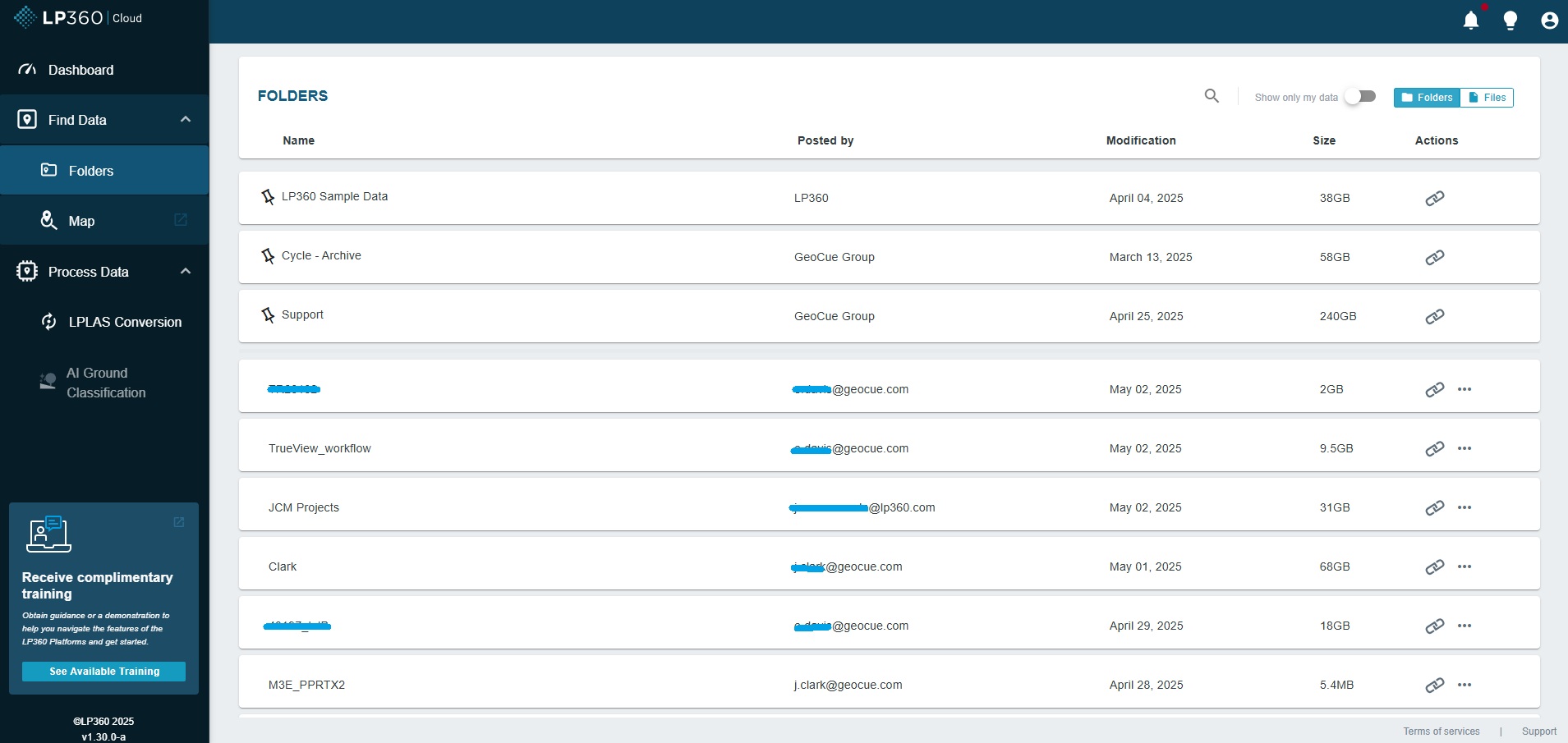

Figure 1: LP360 Cloud - Folders

LP360 Sample Data Folder

This folder contains sample data provided by GeoCue, which are free to download to help users get started with LP360. The folder contains a variety of data to choose from, such as raw cycles, LAS Data, or Storage packages (usually containing LAS data and other related files).

If you have any questions about the different datasets available, please check the associated metadata, tags and comments on the Cloud Layer -> File Details before reaching out to Support.

How to Download Sample Data

1. Use the Sample Data tool on the Viewer Tab of the ribbon or the Download from Cloud tool on the Cloud Tab of the ribbon.
2. Select the LP360 Sample Data folder.
3. In the Cloud Layers section, select the data you are interested in.
4. Select Download and provide a location to save the sample data.

Cycle - Archive Folder

This section contains only the raw Archived Cycle data from TrueView and microdrones sensors. This is a great way to efficiently store and share your raw field collected data.

Figure 2: The Cycle - Archive Folder in LP360 Cloud

How to Upload an Archived Cycle

Use the Archive Manager on the Sensor Tab to Copy a Cycle from a local archive to your LP360 Cloud "Cycle-Archive" folder. See Archiving TrueView Cycles to LP360 Cloud for more details.

Support Folder

This folder only contains data uploaded to the cloud using the Upload to Support tool or provided for you by the Support Team. This particular folder is used to provide data to the LP360 Support team for troubleshooting or training purposes. All data uploaded to this location can be downloaded by the user at a later time if need be. The Support

How to Upload Data to Support

Watch the tutorial on the Upload to Support Feature for Quickly Sharing Files.

Project Folders

This section contains all the individual folders created by users within a given organization. These folders may store processed data, such as LAS files, raster files, or shapefiles, which can be uploaded directly from an open LP360 Project. Additional files (such as ASCII, csv, etc.) can also be uploaded using the Upload to Cloud tool's Select Files using Windows Explorer option.

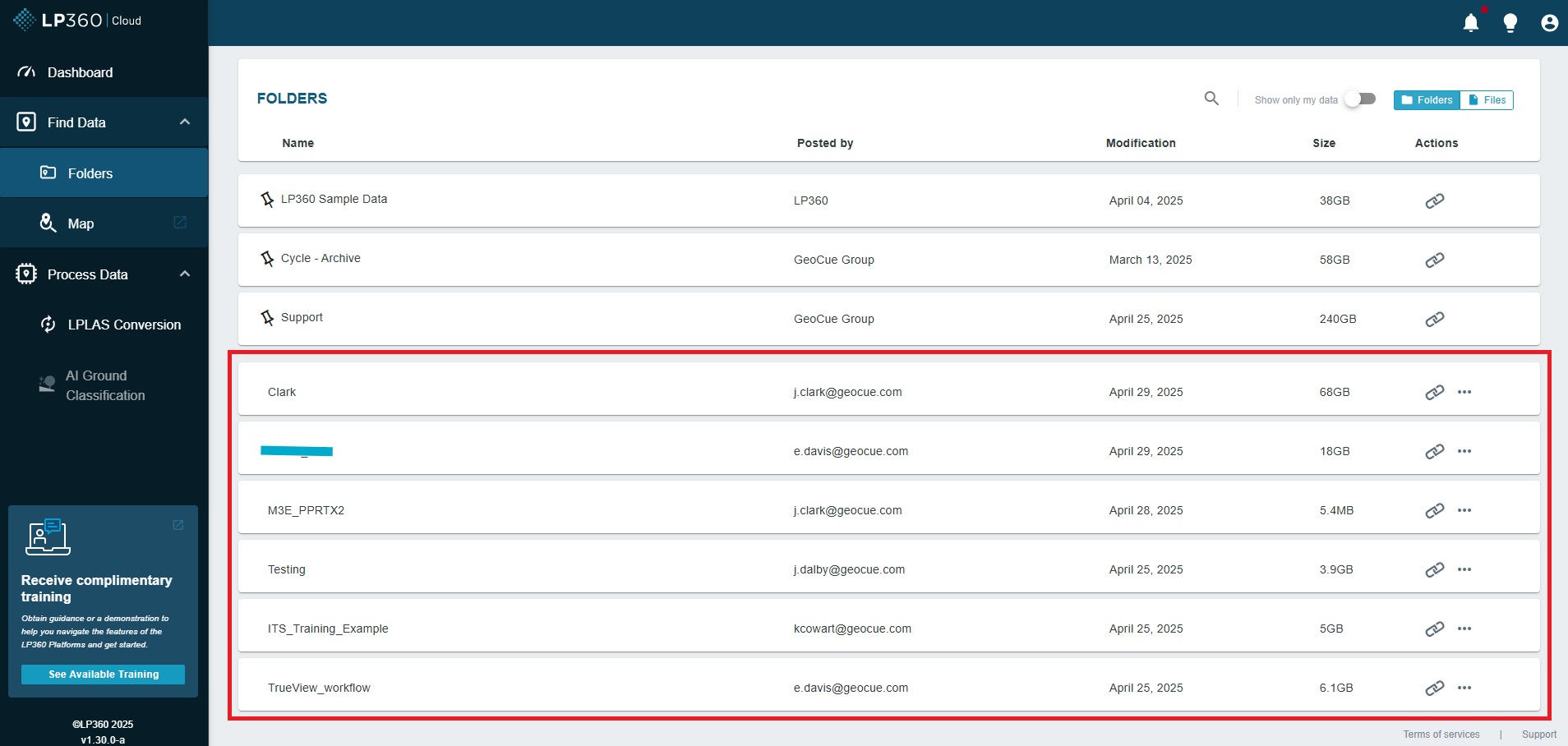

Figure 3: Project Folders in LP360 Cloud

Example, press “Clark” folder.

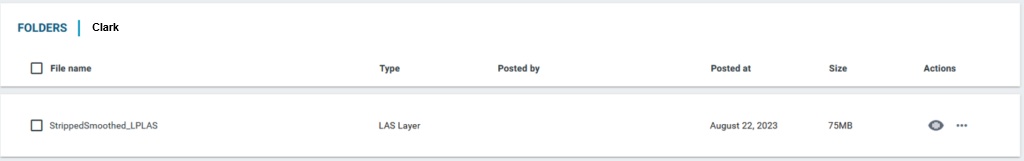

Figure 4: Example Cloud Layer for a Project Folder in LP360 Cloud

Once you open a folder, it displays all the processed data stored inside the folder. Note that the folder section can contain data from any source.

How to Upload Data to a Project Folder

Use the Upload to Cloud tool on the Cloud tab to publish data to LP360 Cloud or create a job in LP360 Desktop using one of the growing list of integrated tools, such as AI Ground Classification, which uploads data to LP360 Cloud, creates the Cloud Processing Task, and downloads the results back to desktop.

Folder Tools in LP360 Cloud

The Folder actions available are:

Copy link

Copy the web path to access the specific folder for downloading the data.

Rename

Rename the folder.

Delete

Delete the folder.

The Cloud Layer actions available are:

Rename

Rename a cycle.

Move file

Move a file between different folders.

Share

Creates a link to download the selected data.

• • Organization: Creates a link that can only be accessed by the users of the organization with credentials for LP360 Online.
  • Everyone: Creates a link that can be accessed by anyone with the link.
  • By email: Send an email with the link to access the data. Note: Create the list of e-mail recipients by pressing <enter> after typing in each e-mail address.

Stream

Requires a Cloud Collaborate Cloud add-on license assigned to your LP360 Online user.

Display the data selected or create streaming links to use in LP360 Desktop.

• • Stream: Displays the data in your web browser.
  • Get Stream Link: Creates a link that can be opened in any licensed LP360 Desktop without needing to download the data.
    • Use the Streaming Link in LP360 Desktop by selecting the Add Cloud Layer tool on the Cloud Tab of the ribbon or the Cloud LAS Tab of the Add Files dialog, enter the pre-signed S3 URL to create a Cloud LAS Layer.

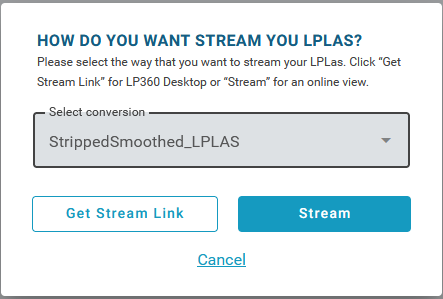

Figure 3: Stream Window

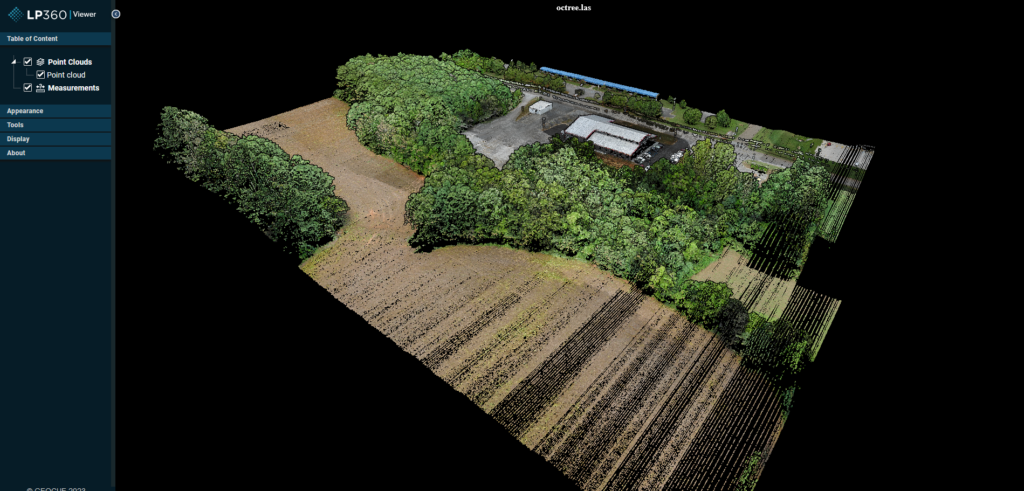

Figure 4: LP360 Cloud Viewer - Stream

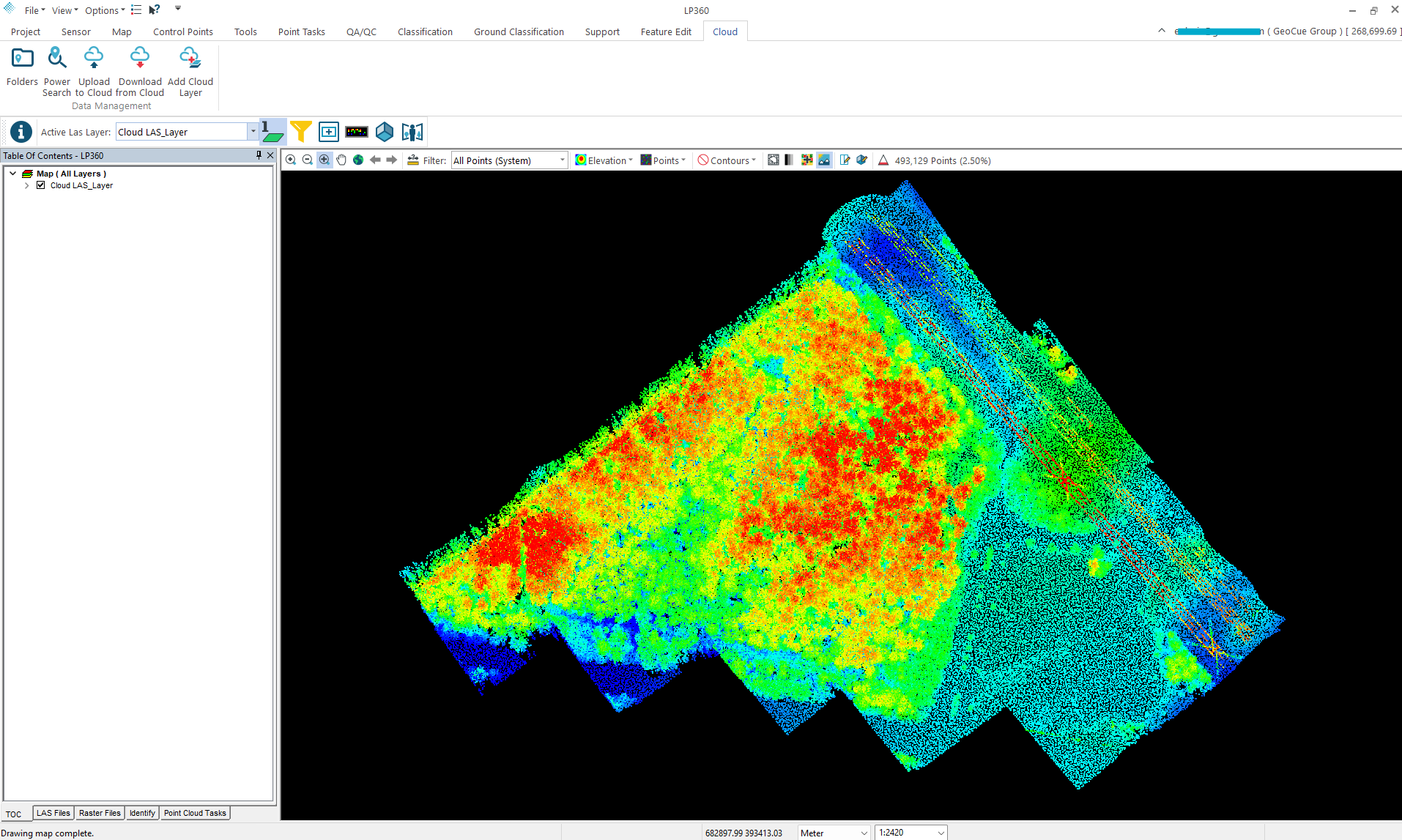

Figure 5: LP360 Cloud streaming to LP360 Desktop - Get Stream Link

How to Share and Stream Data from LP360 Cloud

Watch How to Make Your Geospatial Work Easier with LP360 Cloud

Follow along with the LP360 Cloud Training

File Details

Assign Tags

Assign tags created in the Top Bar of LP360 Cloud -> Resources -> Tags tool to your Cloud Layers.

Files

Lists the files found on the Cloud Layer.

Metadata

Lists associated metadata for the files on the Cloud Layer.

Comments

Users can view, post, edit, and delete comments on Cloud Layers.
