Once you have set clipping planes using the Set Clipping Plane tool , you can view the clipped results within the map using the Enable Clipping Plane in the Map View tool.

🆕How to Enable the Clipping Plane in 2D View

1. If you have not already done so, draw a Profile Line and display the Profile Window in order to set the clipping planes.

2. Select the Set Clipping Plane tool in the Clipping group of the Map Tab of the ribbon.

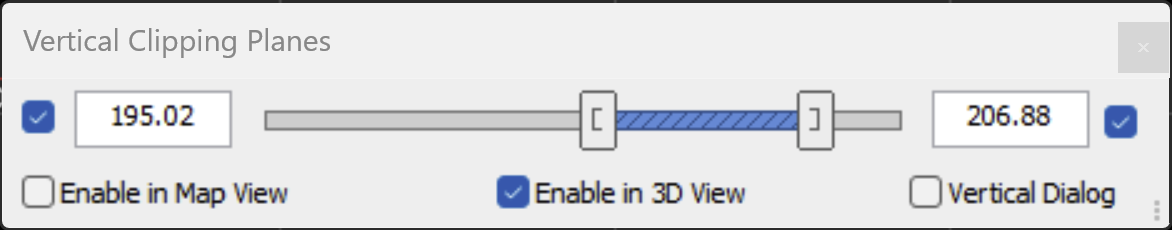

3. Press on Enable in Map View

Legacy Clipping Plane (before 2026.2)

1. If you have not already done so, set the Set Clipping Plane to view within the map window.
2. Select the Enable Clipping Plane in 2D View tool in the Clipping group of the Map Tab of the ribbon.

       3. If the button is pressed, the clipped results will display within the Map Window.
