Once you have set clipping planes using the Set Clipping Plane tool, you can view the clipped results within the 3D window using the Enable 3D View.

🆕How to Enable the Clipping Plane in the 3D Window

1. If you have not already done so, draw a Profile Line and display the Profile Window in order to set the clipping planes.

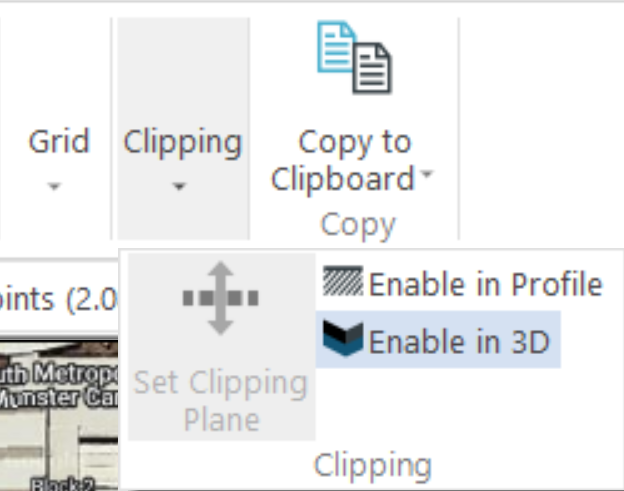

2. Select the Set Clipping Plane tool in the Clipping group of the Map Tab of the ribbon.

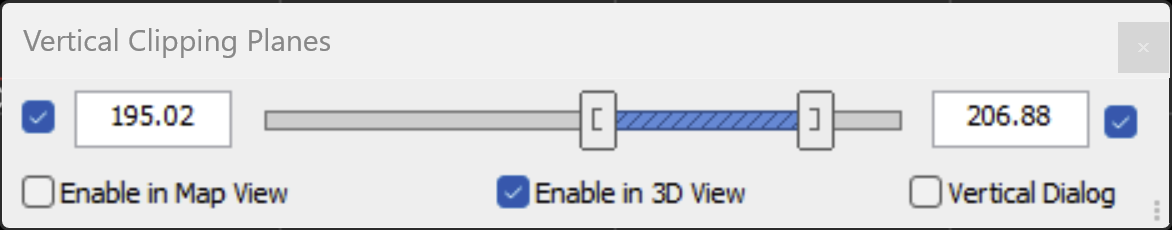

3. Press on Enable in 3D View

Legacy Clipping Plane (before 2026.2)

1. If you have not already done so, set the Set Clipping Plane to view within the 3D window.
2. Select the Enable Clipping Plane in 3D tool from the Clipping group on the Map Tab of the ribbon.
3. If the button is pressed, the clipped results will display in the 3D window.
