Modifying the Destination Classification (Profile Window)

About the Destination Classification

The Destination Classification determines the classification number to commit points to when using the editing tools of the Profile Window. The classification can be modified by selecting the desired classification in the box or pressing a number key to commit a set of selected points to the respective classification for the number pressed.

Note

If your LAS files are version 1.4 PDRF 6 or higher, 256 classes can be defined for a LAS point. Previous versions of LAS files (1.3 and below) allow 32 classes. The number of available classes is also based on the active layer.

How to Modify the Destination Classification

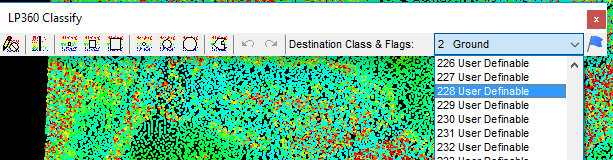

Destination Class box

Click the down arrow to expand the list of classes in the Destination Class box .
Click to select the desired classification number.

Press Number Key on Edit Commit

With a set of points selected using any of the edit tools, press a number key corresponding to the classification you wish to place the points on.
The points will be committed to the new classification, and the classification will be selected in the Destination Class box.
