Profile Export Properties

Requires an LP360 Geospatial Basic or higher, LP360 Drone, or the Business Intelligence Tools (BIT) add-on for LP360 Land Standard license.

About Profile Export Properties

Use the Export Settings or command in the Profile Window or Profile View group on the Map tab of the ribbon, respectively, to select an export file to export profiles to before exporting profiles using the Export Drape Line to File or command in the Profile Window or Profile View group on the Map tab of the ribbon, respectively. The current supported file formats are 3D Polyline shapefiles, AutoCAD DXF, Microstation DGN, and ASCII XYZ files.

If a pre-existing file is selected, profiles are appended to that file. Otherwise, a new file is created. If XYZ files are selected, each line concludes with an "end" statement in order to differentiate between profile lines in the file.

How to Setup Export Properties

Export Properties Command

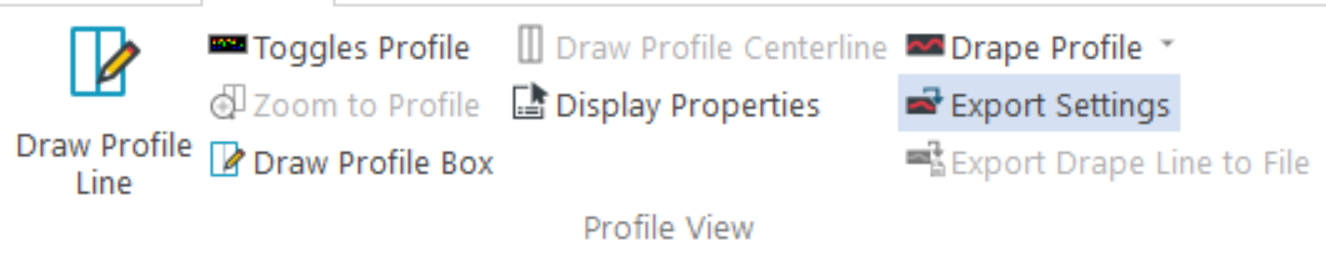

1. Press the Export Settings or command in the Profile Window or Profile View group on the Map tab of the ribbon, respectively.

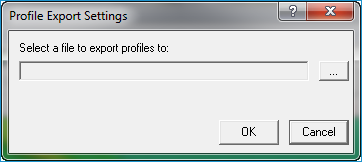

2. The Profile Export Settings dialog will appear.

3. Press the Browse (...) button and specify a file to export profiles to.

4. Select OK, to confirm the setup.

5. If the file is not already included in the map, select "Yes" to add the file to the map, or "No" to prevent the file from being added to the map.
