Add Issue Feature

Requires an LP360 Geospatial Basic or above, LP360 Drone, or LP360 Land Standard license.

Once an issue has been identified, you can add a feature surrounding the issue area as a rectangle, circle, or polygon. Once the feature is drawn, you may select or input a custom issue to assign to the feature. An active QA/QC layer must be selected before using the tool. Customize the content of the Issue Type list, as well as set the order and the default Issue Type using the QA/QC Issue Editor .

Issue features can only be added to the map when a map scale can be calculated for the map. In order to calculate map scale, the map must be set to a map unit other than "Unknown Map Units".

How to Add an Issue Feature

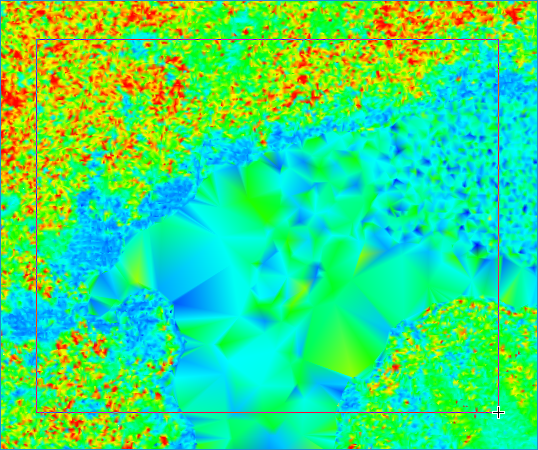

Add Rectangle Issue Feature Tool

1. Press the Add Rectangular Issue tool.

2. Click and drag a rectangle to cover the desired area. Release the left mouse button to complete the feature.

3. Select or input an issue in the dialog box and select OK.

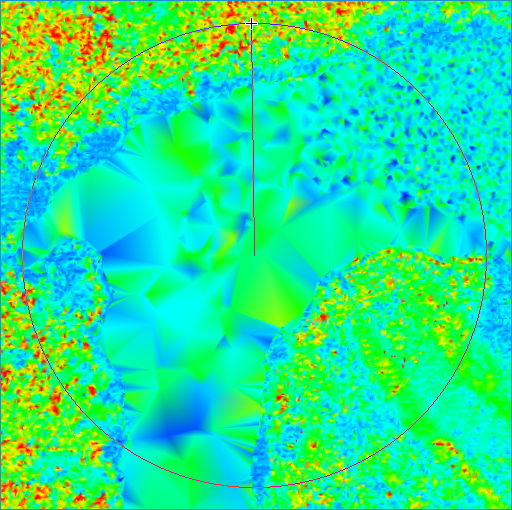

Add Circle Issue Feature Tool

1. Press the Add Circle Issue tool.

2. Click and drag a circle to cover the desired area. Release the left mouse click to complete the feature.

3. Select or input an issue in the dialog box and select OK.

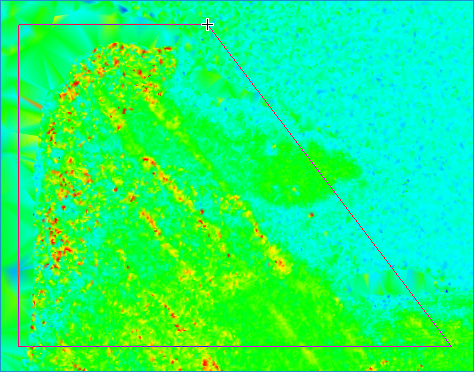

Add Polygon Issue Feature Tool

1. Press the Add Polygon Issue tool.

2. Click in the map to insert vertices into the polygon feature.

3. Double click to complete adding the feature.

4. Select or input an issue in the dialog box and select OK.
