About Inverting Color Ramps

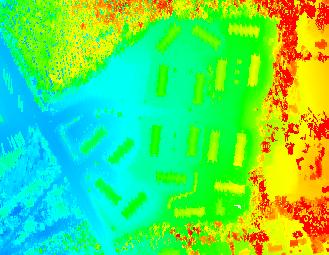

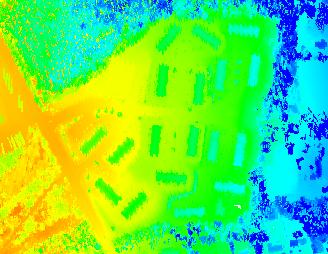

A color ramp can be inverted to reverse the colors usually associated with the minimum and maximum values. For example, if the chromodepth color ramp is inverted, then lower elevations are colored in red, and higher elevations are colored in blue.

How to Invert Color Ramps

Invert Check Box

1. Open the Properties dialog.

2. Select the 'Symbology' tab and the 'Elevation' or 'Intensity' tab within it.

3. Click in the box to toggle the invert value. Checked is inverted; otherwise the color ramp is not inverted.
