Elevation and Intensity Legend Property Page

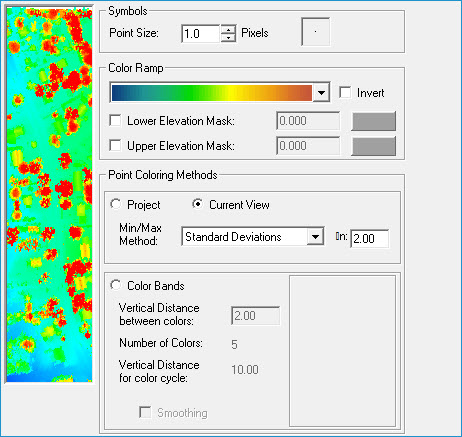

The Elevation Legend Property Page is used to control the symbol size and color of LIDAR points based on elevation values. The symbol colors based on elevation values can be calculated using values from all of the LAS files, current view, or in color bands that simulate contours.

The Intensity Legend Property Page is used to control the symbol size and color of LIDAR points based on intensity values. Intensity is a measure of reflected energy in the returns for a pulse and is similar to a black and white image. High energy or intensity values result in brighter colors where as low intensity or energy values result in darker colors.
Learn how to modify the point size

Learn about the symbol preview

Learn how to select a new color ramp

Learn how to invert a color ramp



Learn how to use elevation masks

Learn how to use the "Project" option

Learn how to use the "Current View" option

Learn how to use the "Color Band" option
