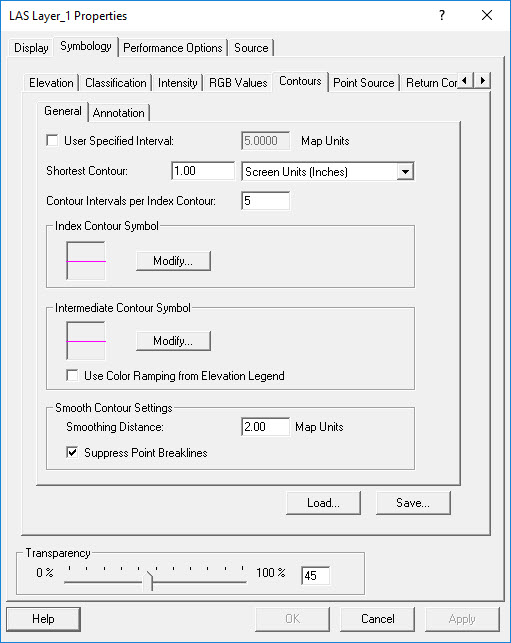

Contour Legend Property Page

The Contour Legend controls how the contours are displayed on the screen. Two symbols are used to describe the width and color of the index and intermediate contour lines. The colors of the intermediate lines can be assigned using the elevation legend properties yielding a ramp of colors based on elevation.

By default the system chooses an appropriate contour interval based on the contents of the current view. The system-chosen contour interval is designed to allow for fast browsing of the LIDAR data as the view is panned and zoomed in and out. You may override the system interval as well as modify the number of intervals between index contours.
Learn how to modify the shortest contour to display

Learn how to modify the index and intermediate contour line symbols

Learn how to modify the contour interval

Learn how to modify the intervals between index contours

Learn how to modify the smoothing distance

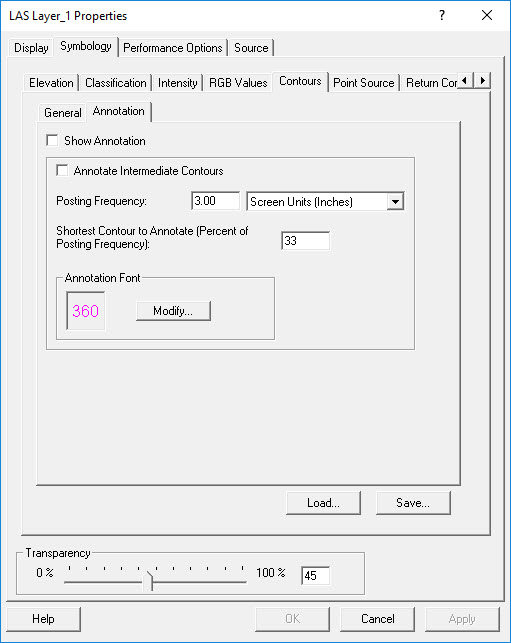

Learn how to toggle annotation visibility

Learn how to toggle intermediate annotation visibility

Learn how to modify annotation frequency

Learn how to modify the shortest contour to annotate

Learn how to modify the annotation font   Learn how to modify the transparency
