Line of Sight Dialog

(Only available in ArcGIS)

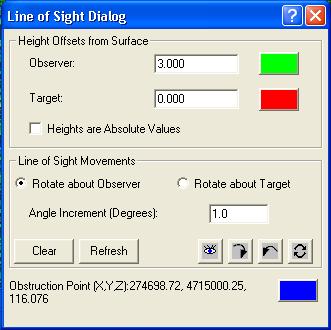

The Line of Sight dialog is used to control inputs into the line of sight analysis as well as visualization components displayed on the screen after the analysis is complete.

The inputs that affect the analysis of the line of sight are the heights of the observer and target. You may input the height of the observer and target as a relative value to the LIDAR surface or as an absolute height.

Visualization components include the colors used to mark the location of the observer, target, and, if necessary, an obstruction point. The dialog also allows you to rotate the line of sight about the observer or target, as well as flip the observer and target positions.

Learn how to modify the observer and target heights

Learn how to modify the marker colors

Learn how to clear the current line of sight

Learn how to refresh the current line of sight

Learn how to rotate the current line of sight

Learn how to flip the current line of sight

Learn how to set the 3D window's eye to the observer location

Opening the Line of Sight Dialog

Click on the Line of Sight command on the Viewer Integration toolbar (ArcGIS).
