Drawing the Profile Box in 2D View

After a profile line has been established using the Draw Profile Line tool  in LP360 Standalone for Windows, you may display or hide the resulting profile box from the 2D map view.

How to Draw the Profile Box in 2D View

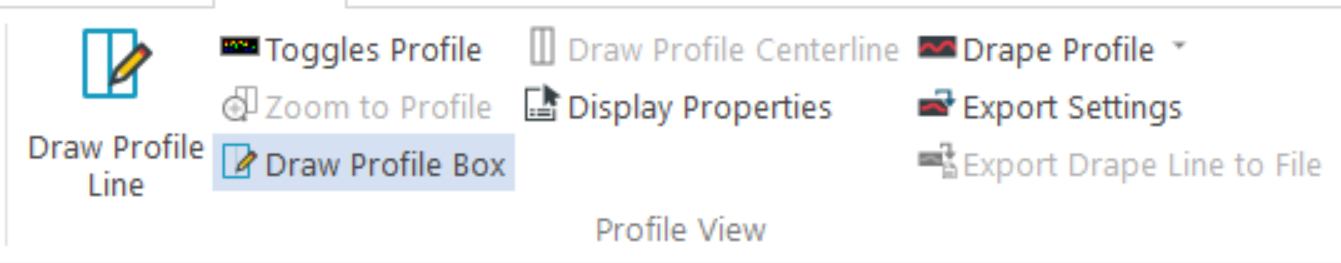

1. Click the Draw the Profile Box in 2D View tool (LP360 Standalone) on the Viewer Integration toolbar.

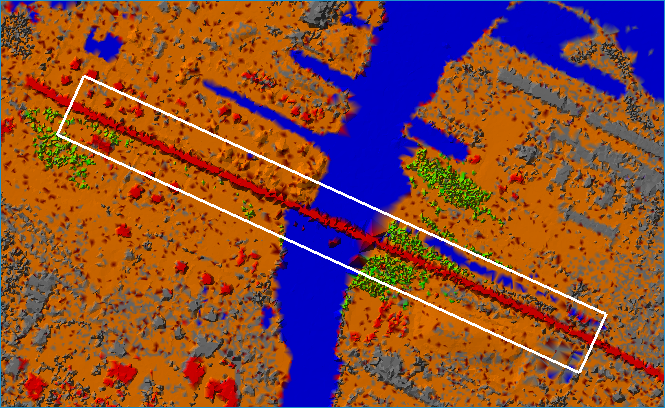

2. If the button is pressed, the profile box is displayed on the 2D map view.

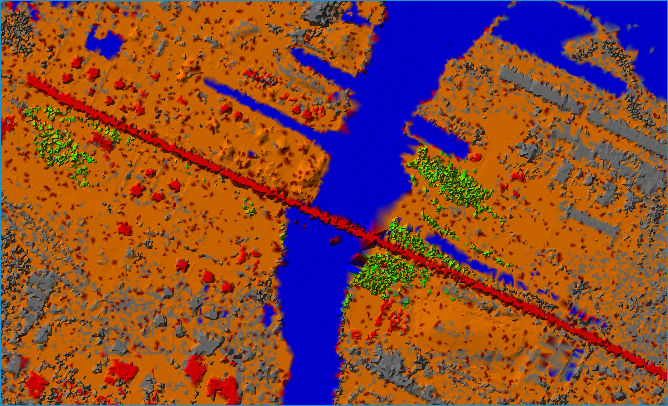

If the button is not pressed, the profile box is hidden.
