LAS File Analyst

About LAS File Analyst

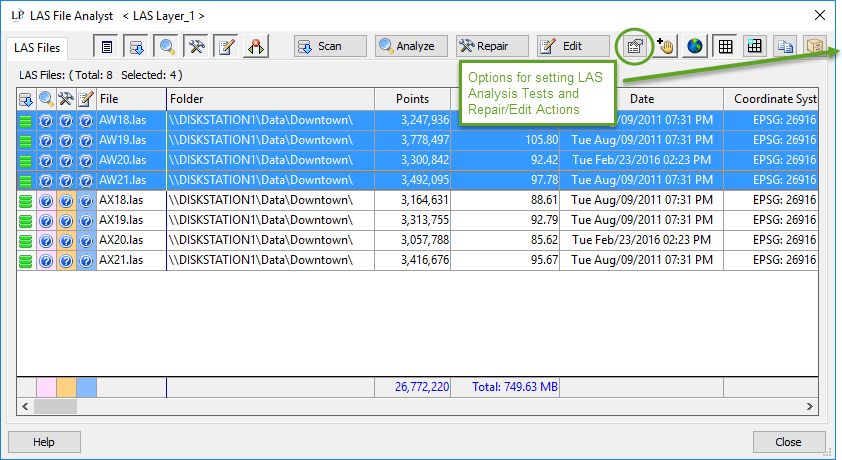

LAS File Analyst (LFA) provides the user the user with tools for analyzing LAS files for compliance with industry standard American Society for Photogrammetry and Remote Sensing (ASPRS) specifications and an associated set of tools for repairing and editing those that are defective. LFA is invoked by right clicking on a LAS layer in the TOC and selecting it from the menu or by clicking the button on the LP360 Toolbar. The dialog displays all of the file header metadata available for the LAS files on the layer in sortable columns. This data is immediately accessible upon adding LAS data to a project. There are Window Centering and Fitting tools for LAS Files, as well as copying rows to the clipboard , and a Move/Copy button for copying certain files to a target folder. The Move/Copy button is helpful when a user wants to "quarantine" certain files by excluding them from the project. The LFA dialog is non-modal, so it may remain displayed even while performing unrelated actions in LP360.

In addition, LFA has three-way synchronization between the TOC LAS files tab, rows (files) selected in the LFA dialog itself, and LAS file boundaries selected in the map view.

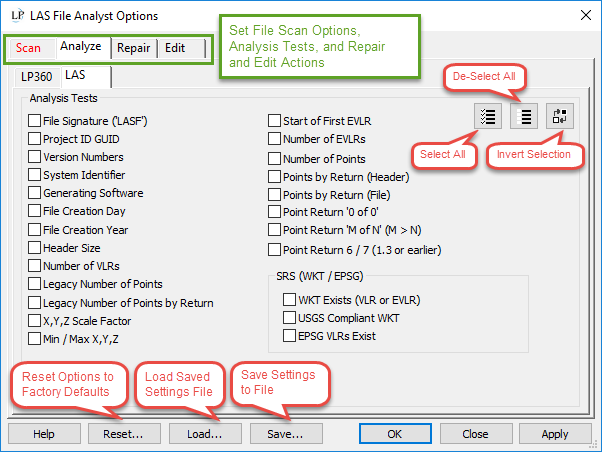

Learn more about LAS File Analyst Options

'Show/Hide...' Buttons

The Show/Hide buttons control which columns the user sees in LFA. The Show/Hide LAS File Header columns button controls the header file columns. These are commonly needed, so this button is enabled by default. The Full Scan Info column button controls the columns for a full LAS file scan. This button adds many more (full file) columns, which are populated for the selected files upon clicking the 'Scan' button . The Show/Hide Analyze Test columns button controls whether the columns for the Analyze Tests chosen in LFA Options are shown or not. Similarly, the and buttons are for toggling the columns for Repair and Edit actions chosen in LFA Options, respectively. The Show/Hide Descriptive Headings button toggles between descriptive headings for Analyze Test columns or simplified headings:

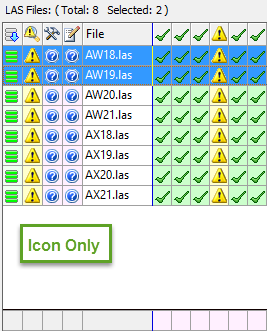

Icon Only: Shows only the Pass/Fail/Warning icons in the Analyze columns.

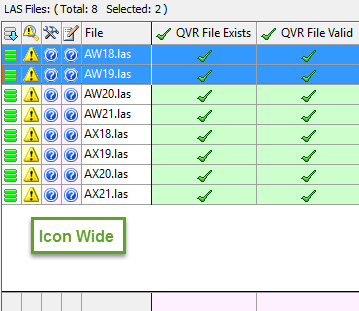

Icon Wide: Widens columns so as to show the column name in addition to the Pass/Fail/Warning icons.

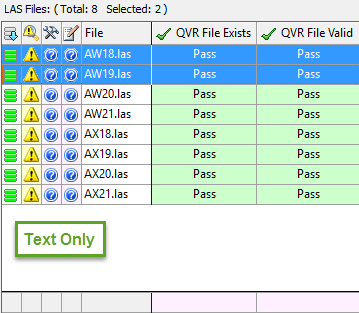

Text Only: Shows Pass/Fail/Warning text.

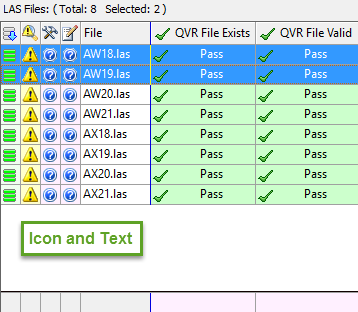

Icon and Text: Shows the both the icons and the text.

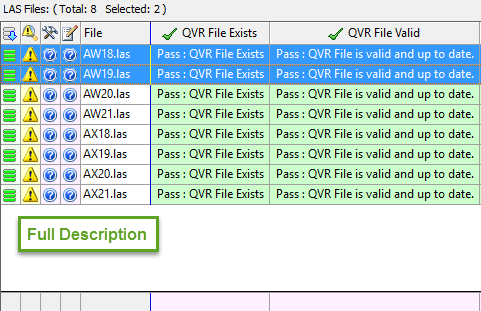

 Full Description: Shows Pass/Fail/Warning text as well as a full description of the test result.

LAS File Map View Synchronization

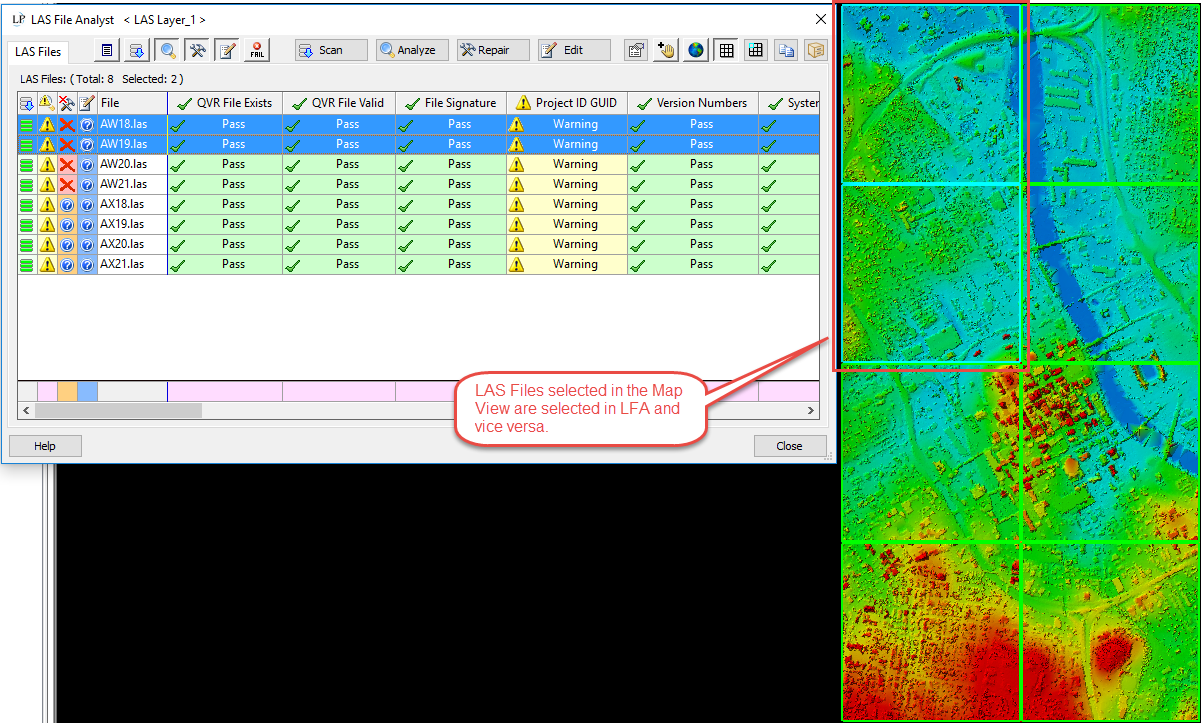

The 'Display Boundaries' and 'Select LAS Files Graphically' buttons allow the user to conveniently turn on and select LAS files boundaries in either the Map View, the LFA dialog, or the LAS Files tab of the Table of Contents, and have them selected in the others.
