Specifying a File Naming Method

If you are tiling the export area, a file naming method to define how the base filename will be created for each file must be provided. The following describes each available file naming method:

Increment Number from S-N then W-E (Start Number = 0)

2	5	8
1	4	7
0	3	6

Increment Number from W-E then S-N (Start Number = 0)

6	7	8
3	4	5
0	1	2

File Name from Row and Column (Row_Col)

2_0	2_1	2_2
1_0	1_1	1_2
0_0	0_1	0_2

File Name from Column and Row (Col_Row)

0_2	1_2	2_2
0_1	1_1	2_1
0_0	1_0	2_0

File Name from Lower Left Corner (X_Y)

Each tile's lower left corner x and y coordinates are rounded to the nearest whole number and concatenated into the filename.

How to Select a File Naming Method

Open the Export Wizard and complete the first two steps required in the Export Wizard. See Export Format (Step 1 of 3) and Export Extent (Step 2 of 3) for instructions on starting the Export Wizard and completing the initial step.

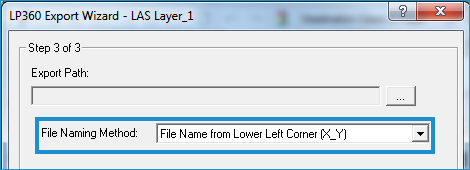

On the Step 3 of 3 page, click the arrow next to the File Naming Method list and select one of the listed methods.
If you select an Increment Number... method, enter a start number greater than or equal to zero.

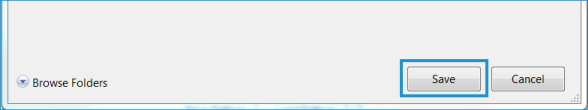

Click Save.

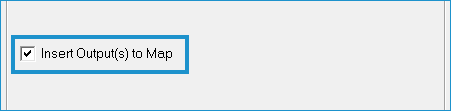

To display the created output file in the Map view, click Insert Output(s) to Map.
Click Finish.
