Exporting RGB

RGB images are created by coloring a point cloud using the corresponding RGB values collected via images addition to the LIDAR scanner data.

How to Export LIDAR to RGB Images

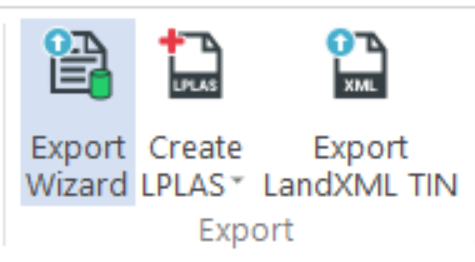

1. Open the LP360 Export Wizard by clicking the Export LIDAR Data command on the LP360 toolbar. The Export Wizard dialog will open with the Step 1 of 3 page displayed.



2. Click the arrow in the Export Type list, and select Surface.

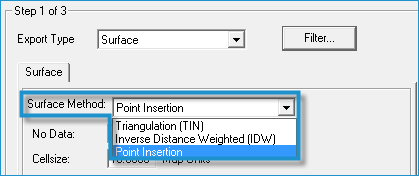

3. Click the arrow in the Surface Method list and select Point Insertion.

   Learn more about surface methods

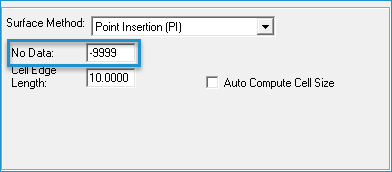

4. Enter a No-Data value for the output TIFF files.

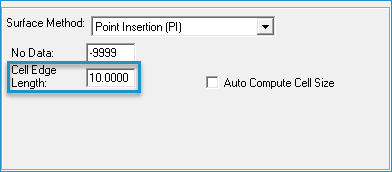

5. Enter a Cell Edge Length greater than zero Map Units.



6. Under Surface Attribute(s) to Export, select RGB.



7. Click Next.
