The Profile Box/Profile Centerline are not visible in LP360 Map View. You are only able to see where you are drawing the profile as you draw it. Once you've finished, it disappears from the map view.

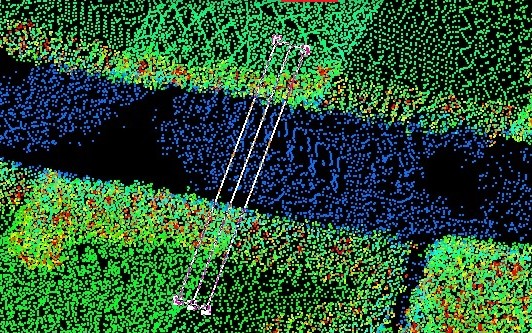

Figure 1: The Profile box appears while drawing a profile line
âś… Probable Resolutions
Draw Profile Box disabled
The Draw Profile Boxcan be found in the Profile View group of the Map tab of the ribbon. This needs to be enabled in order to see the Profile Box when selecting profiles. The "Profile Box" must be active to toggle "Profile Centerline" on and off using the Draw Profile Centerline toggle.

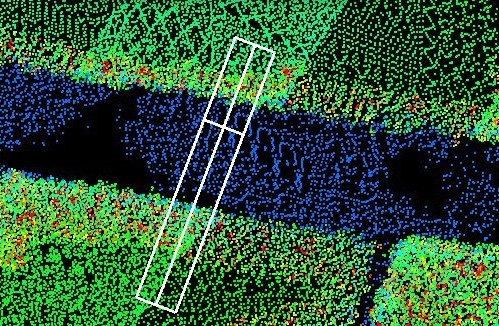

Figure 2: "Draw Profile Box" is active and Profile Box remains visible in the Map View.
