DJI L1/L2 Processed workflow Import Advanced Settings

Requires an LP360 Drone license.

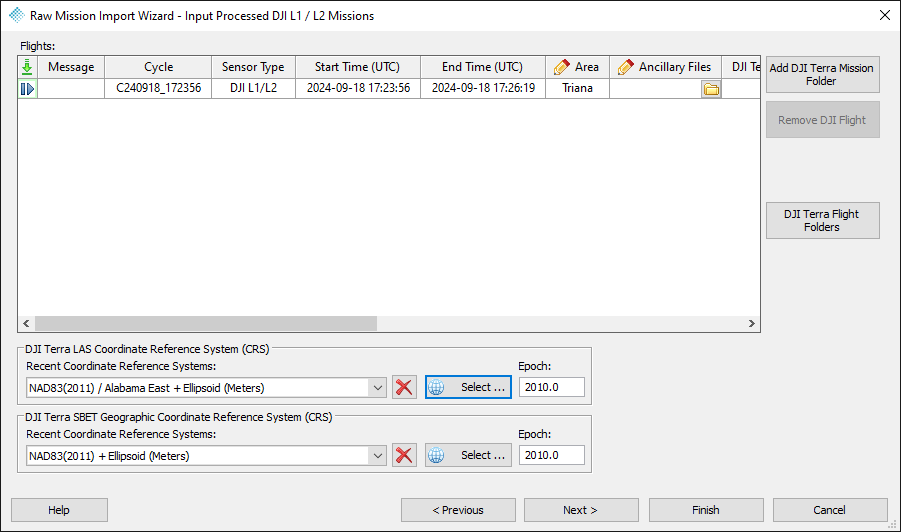

While importing a new DJI L1/L2 Processed flight, extra advanced settings are available in the Raw Mission Import Wizard - Input Settings.

Add DJI Terra Mission Folder: Select the DJI Terra Mission Folder. This folder is generated by DJI Terra desktop software, and should not be altered.

Remove DJI Flight: Removes a flight from the list

DJI Terra Flight Folders: The Default folder of DJI Terra software

DJI Terra LAS Coordinate Reference System (CRS): Select the CRS selected during the DJI Terra Pre-Processing.

DJI Terra SBET Geographic Coordinate Reference System (CRS): Select the Geographic CRS from DJI Terra, it is usually the same CRS as the LAS but in Geographic coordinates.

Note: If the user has moved the DJI Terra Mission Folder from the default DJI folder location or has moved the Raw data from the place used during the DJI Terra pre-processing. LP360 will ask the user to manually select the location of the Raw data, since LP360 will not be able to automatically located.
