LP360 2014.1 Service Pack (SP1) Release Notes

Modifications of Existing Features

• Default Raster Overview Resampling Method Change
  The default Raster Overview Resampling method has been changed from CUBIC to AVERAGE in LP360 for Windows. This is now also the default Resampling Method when exporting images.



•  Added a Licensing Prompt giving users options for selecting a license when Using LP360 for ArcGIS, instead of being prompted for Admin Credentials
  When using LP360 for ArcGIS and a license is not granted, a dialog is now displayed allowing the user to select a different license level, or check on licensing via the LP360 License Administrator. This resolves the situation of having an incorrect license type for improperly-configured License Server installations, or having no license available, and minimizes the need for an administrator to intervene.


  Defect Fixes



• Fixed an issue in which LP360 would crash upon exit on a VM. (LP360 for Windows did not crash and all functionality within LP360 worked fine otherwise.) (3738)
• Fixed an issue in which Classify by Features would classify all points within a polygon even when you specified only "within a distance of 1". (3800)
• Fixed an issue in which selecting Display by Classification would toggle off the point display. (3806)
• Fixed a memory leak in the TIN code. (3752)
• Fixed an issue in which LP360 would crash when attempting to open a LAS file with Read/Write setting when the LAS file was open for read in another application. (3361)
• Changed the behavior of the Control Point dialog so that it no longer requires an LAS Layer. (3370)
• Fixed an issue in which a floating license server aut file that has an expired license would fail to load that license file to the license server. (3395)
• Fixed an issue in which the Define LAS Projection command was assigning an incorrect EPSG code for ESRI Authority PRJ's. (3275)
• Fixed an issue in which the Define and Reproject tools was not writing the vertical reference system in the header. (3277)
• Fixed an issue in which the option to use a specified contour interval was not staying checked upon exiting the dialog box. (3188)
• Fixed an issue in which overwriting an existing file that is displayed in the map using the I/O manager was not writing attributes correctly. (3436)
• Fixed an issue in which executing a macro in the preview window that doesn't have the output dataset defined would do nothing and not provide information. (3446)
• Fixed the default conflation tasks so that the classification option is not checked. (To perform buffer classification at the same time as compiling is bad form as then the compiler cannot adequately QC their work as they go.) (3459)
• Fixed an issue in which running a license on a Spanish OS would prevent the registration buttons from working. (3489)
• Fixed the Labels Property page, which would appear truncated when using a 125% display on the monitor. (3504)
• Fixed the Raster Layer Properties page, which would appear truncated when using a 125% display on the monitor. (3505)
• Fixed an issue on the User License Level Combo Box in which the scroll bars were difficult to see. (3510)
• Fixed an issue in which the Define/Reproject Arc Tools in LP360 should output the Vertical Coordinate System and Unit EPSG codes as well as the Horizontal Coordinate System Linear Unit. (3526)
• Fixed an issue in which the Statistics Point Cloud Task should report Vertical EPSG codes when Citation is not available. (3529)
• Fixed an issue in which the Reproject LAS Files tool was not writing GeoTiff tag information into the header for linear units. Even though this tag is not a requirement of the spec, the tool to create a LAS Dataset in ArcGIS requires it to be present. (1220)
• Fixed an issue in which the ASCII XYZ dialog box was truncated if a monitor display was set to more than 100%. (3079)
• Fixed an issue in which the Statistics Extractor Point Cloud Task resulted in the SRS field being too narrow. (3279)
• Fixed an issue in which the Statistics Extractor Point Cloud Task results showed unknown instead of user-defined. (3280)
• Fixed an issue to have corrupt QVR files that are encountered during the Add Files operation flagged as out-of-date and then regenerated automatically. (3611)
• Fixed an issue with the Volumetric Point Cloud Task in which Input Geometry and Output Files could not be entered in the I/O Manager. (3418)
• Fixed an issue on the User License Level Combo Box in which the scroll bars were difficult to see. (3510)
• Added Horizontal Unit EPSG code to the "SRS" field when running the Point Statistics PCT. (3533)
• Fixed an issue in which the Statistics Extractor was not indicating when certain CRS information was not available. (3560)
• Fixed an issue in which a Basic Viewer License was incorrectly granted when a user was unable to get a license from a floating license server. (1961)
•

  LP360 2014.1 Release Notes

  New Features

  • The following features that were only available in LP360 for ArcGIS are now available in LP360 for Windows.

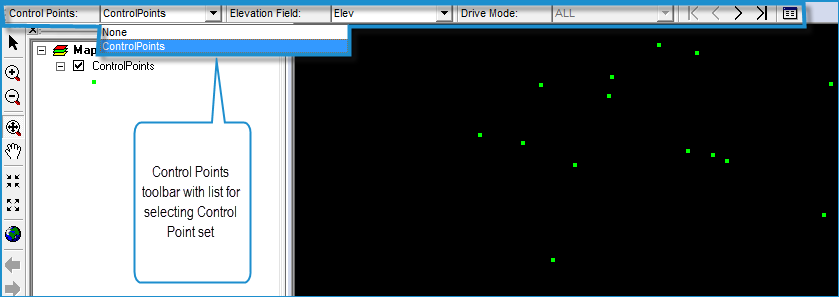

  • • Control Point Tools
      The Control Point toolbar allows you to manage feature classes that have control points.

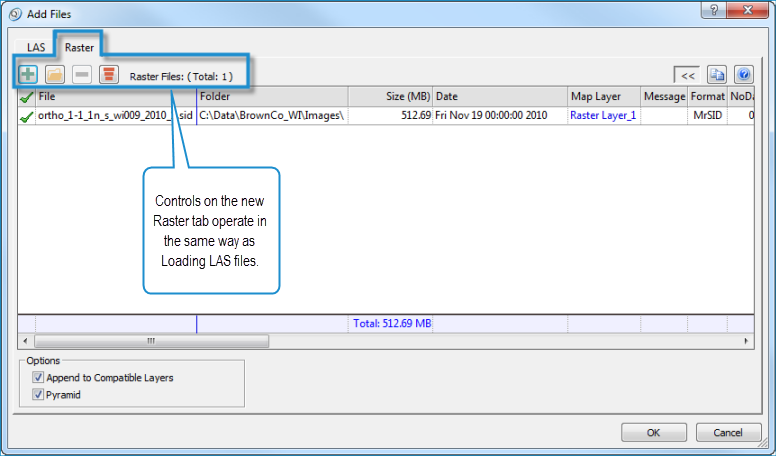

    • Image Load Dialog Box
      The Add Files dialog has been enhanced in LP360 for Windows to include an interface for opening image files. Thus you now open both LAS files and Image files using the red Add LAS/Raster files button  on the LP360 toolbar.

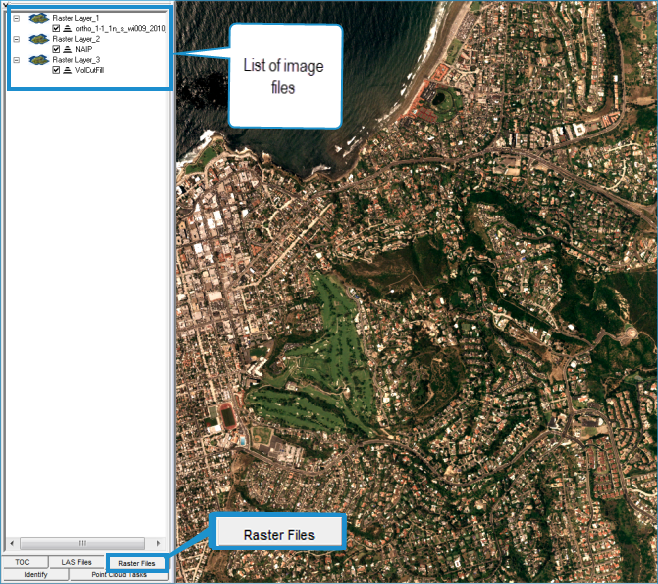

    • Image Files Tab
      The left pane in LP360 for Windows has always been an important part of LP360 that helps manage your LAS Layers and data. It now includes a Raster tab for managing image files. Images are automatically aggregated into compatible layers (just as LAS files are) and the Table of Contents display allows you to view the image list and the layers to which they belong. This new approach to managing image files allows easy organization of hundreds of individual images (such as tiled ortho-mosaics) into a single image collection in the Table of Contents.

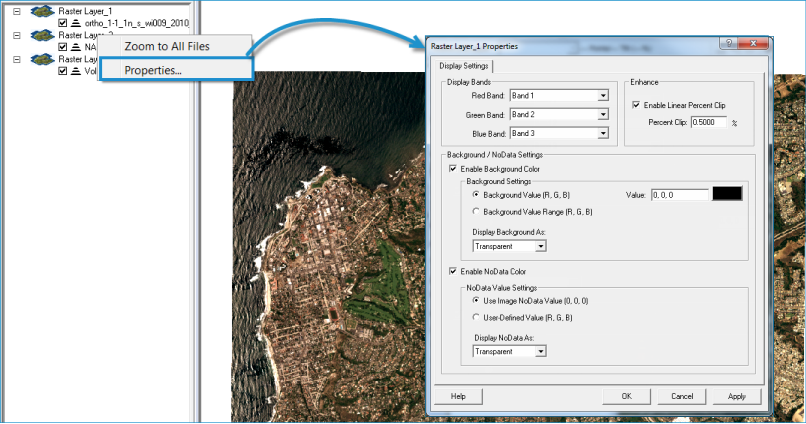

    • Image Properties
      You can manage certain properties of the new image display, such as displaying the color band order, enhancing the image display using a Linear Percent Clip, setting the image background display, and setting a color fill using your choice of color where no data is available.



    • Image Pyramid Generation on Import
      The option to pyramid image files when opening them is also available in LP360 for Windows.

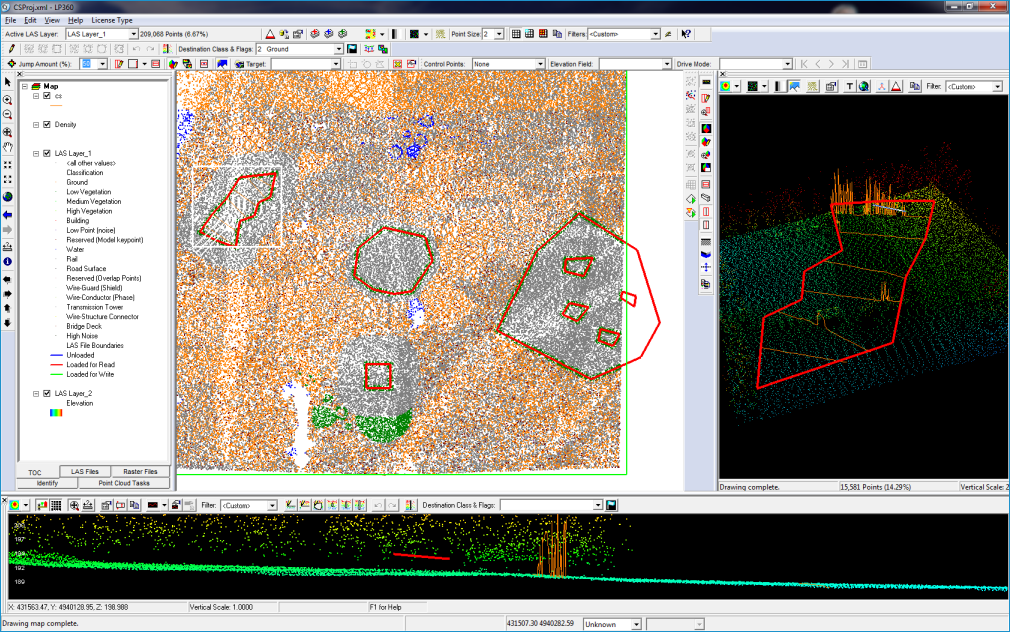

    • Vectors (3D) Display in Profile and 3D Views
      The Profile and 3D windows are now able to display 3D vectors.

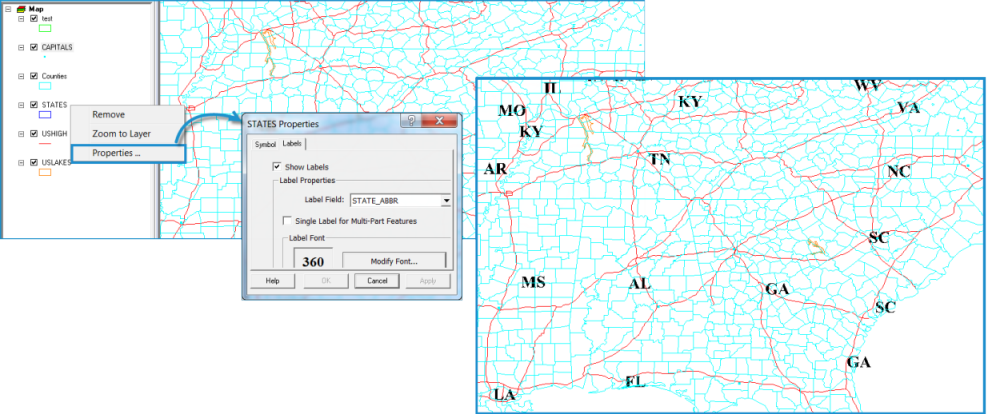

  • • Display Labels on Features
      The option to show labels for features on the map is also now available in LP360 for Windows. A new Labels tab on the shape file Properties dialog gives you options for managing which labels to display and how to display them.



  • The following are new features available with this release in both LP360 for Windows and LP360 for ArcGIS.

    •  Smooth Contours Option
      The Smooth Contours option is an enhancement of the previous Contours display feature. Contours can still be displayed in the same way as before (shape edges where crossing TIN facets), but now you have the option to display contours with smoother corners. You will likely only see this when you use a considerably zoomed in extent.

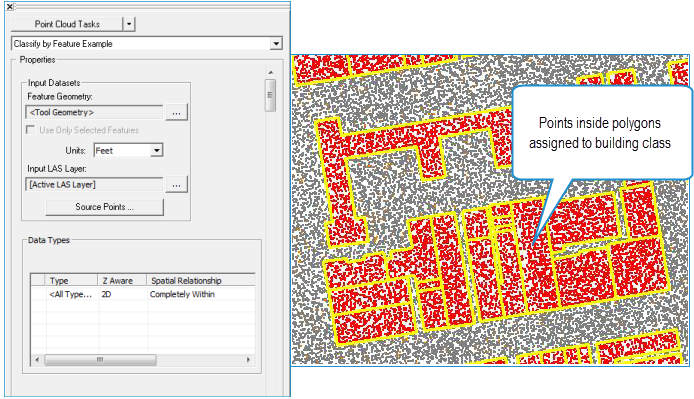

    • Classify by Feature Point Cloud Task
      The Classify by Feature command is now a Point Cloud Task. It is a useful way of assigning classifications to points within a spatial relationship to other features. This adds powerful new classification capability since a Point Cloud Task can be chained into a processing "macro".

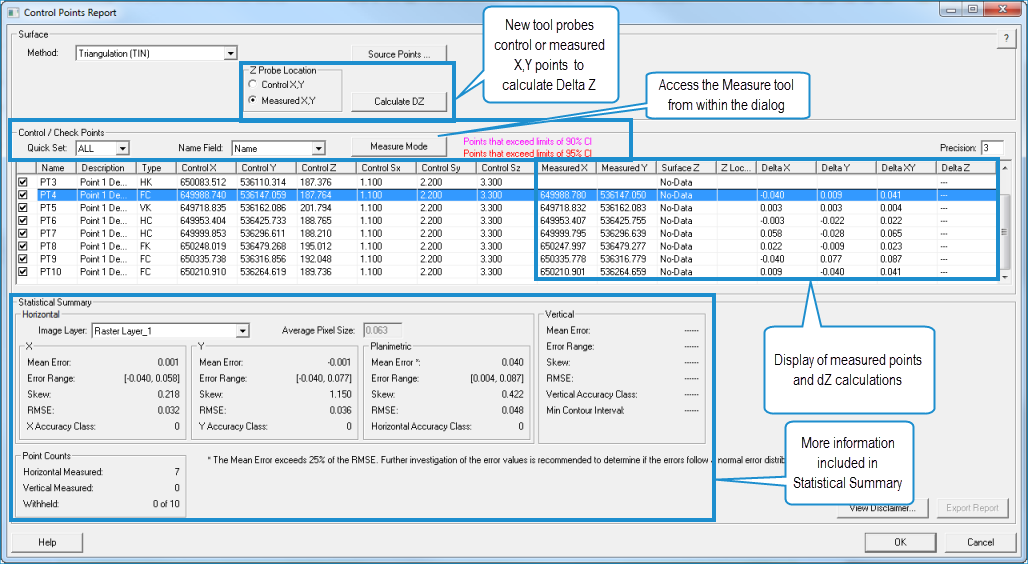

    • Planimetric Control Point Analysis in Control Tools
      Tools allowing you to measure and probe control points are now available in the Control Points Report dialog box. In addition to the automatic probing of vertical control, the ability to measure planimetric control has been added. This makes LP360 (particularly LP360 for Windows) the ideal platform for measuring the accuracy of digital orthophotos. The control points data table then displays the values of the measurements, and the map will display the differences between the control point locations and the measured points. The new reporting fields and accuracy statements are based on the draft 2014 ASPRS Accuracy Specifications expected to be adopted by December 2014.

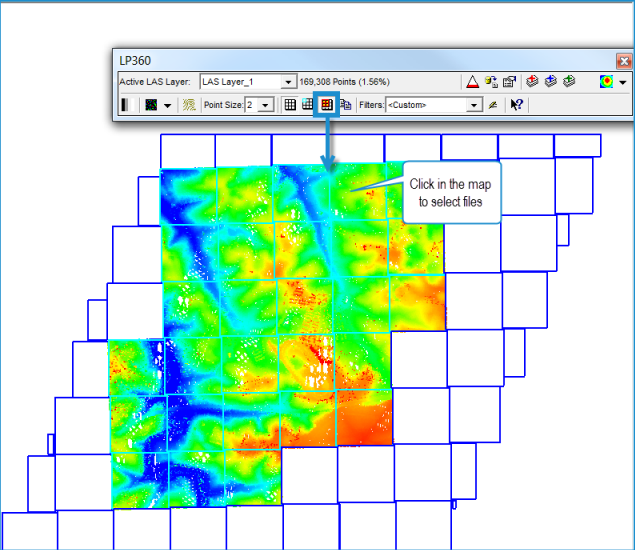

    • Dynamic Load and Unload of LAS Files
       The new Select and Load Files Graphically command allows you to dynamically control the display in the map by simply clicking on the file/area that you want to display. This tool is useful for managing very large data sets such as those generated by mobile laser scanning (MLS) systems.



    • Rail Extraction
      The new Rail Extraction Point Cloud Task allows you to define properties that will locate and extract the rail centerline vectors (the "alignment") and to optionally classify top of rail points.

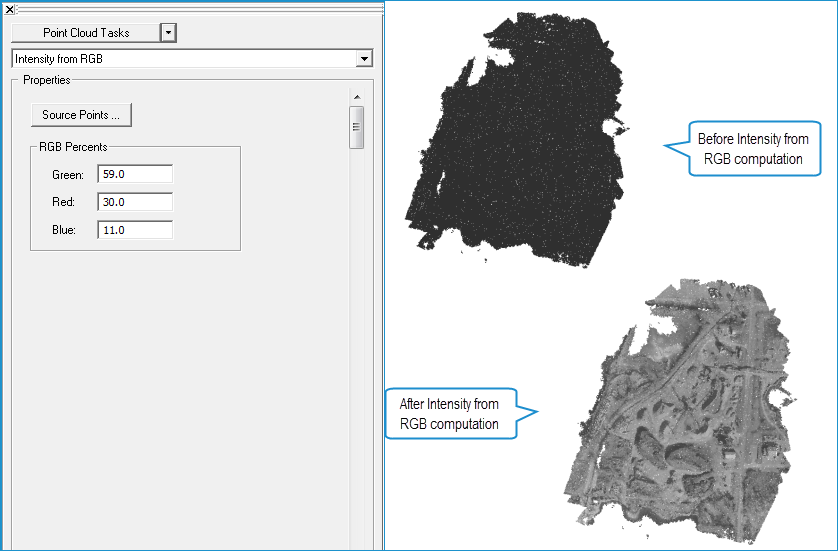

    • LAS Intensity from RGB Point Cloud Task
      The new LAS Intensity from RGB Point Cloud Task generates intensity values that may be missing from certain LAS files. The red, green, and blue values from the files are used to generate the intensity values. This is a common problem with point clouds derived from correlated images; the RGB fields have been populated from the image, but the Intensity values have been set to zero. Having the intensity field populated makes visualization during point Classification possible.

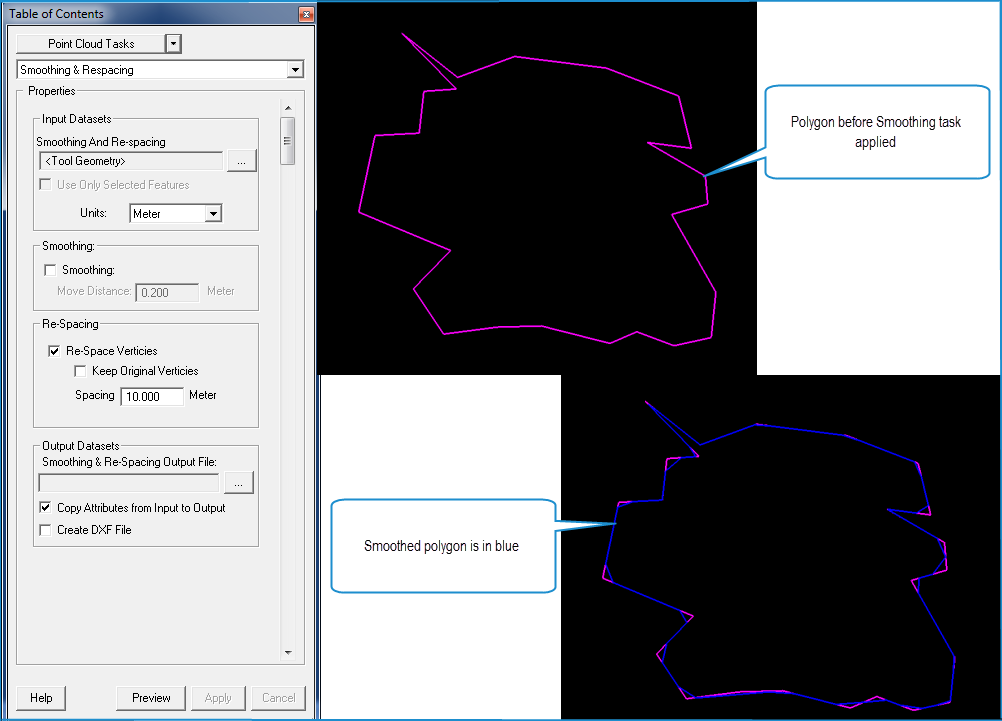

    • Densify and Smooth Line Polygon Point Cloud Task
      The new Smoothing and Respacing Point Cloud Task gives options for respacing a geometry by adding and/or removing points. Using this PCT, you can densify geometry by adding points or smooth the geometry by removing points.



    • Ability to Turn Off Points Display in the Profile View
      The Profile Window now has a No Points display option, which is useful for viewing vectors.

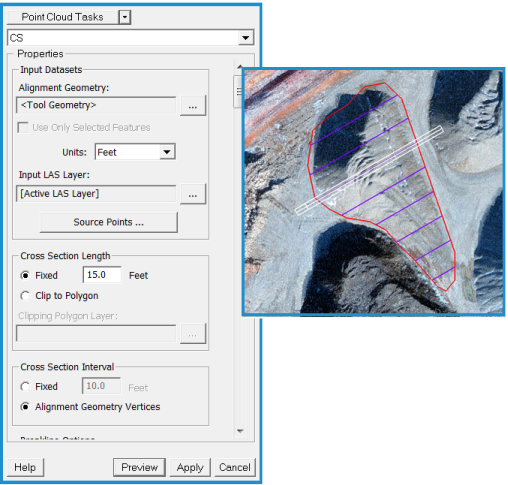

    • Cross Sections Tool now Available as a Point Cloud Task
      This new Point Cloud Task is an enhanced version of the previous Cross Sections tool. It generates vertical cuts (cross-sections or profiles) of the point cloud at an interval that you specify along a line. Polygon clipping and optional DXF output options are also available.

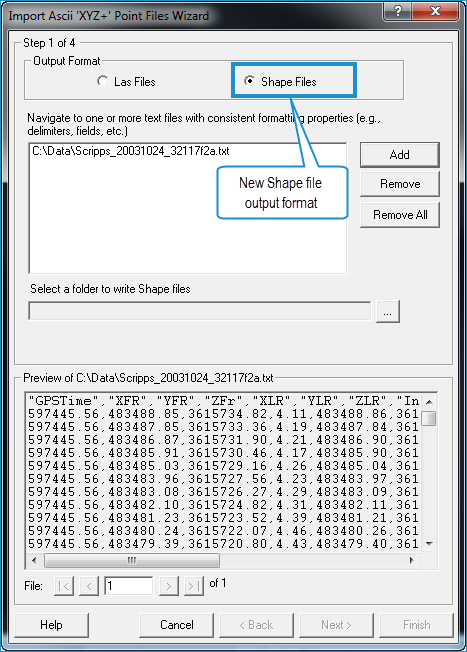

    • Import ASCII to Shape
      The Import ASCII XYZ command now allows you to import ASCII data into a shape (.SHP) file.  This provides a way to load control points that are in ASCII format.

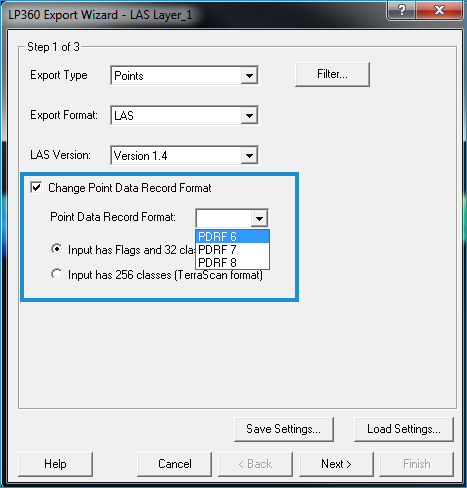

    • Change Point Data Record Format when Converting LAS Versions
      LP360 now has the ability to not only promote LAS version numbers (for example, from version 1.2 to version 1.4) but also to change the Point Data Record Format when going from LAS 1.0-1.3 to LAS 1.4 versions. This will be important when using a mixture of tools for LIDAR data processing with a deliver format requirement for LAS 1.4 Point Data Record Format 6 and above.

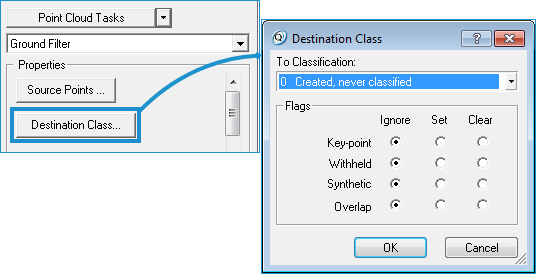

    • Point Cloud Tasks Add Flags Options
      All talks that can alter the classification of a point (including Point Cloud Tasks) now have the option to set flags where classifications can be changed.  In addition, an option is included to set flags only without modifying the source class.  This is very important for new delivery requirements that require preservation of the original class but flagging specific states such as �Ground point� in the Overlap region.

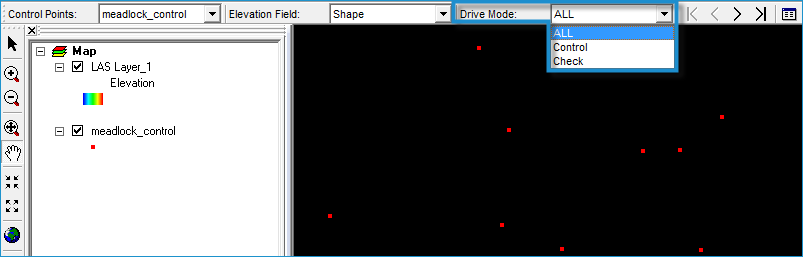

    • Drive Mode option on Control Points Toolbar
      The new Drive Mode list determines to which type of points the adjacent panning controls will jump when they are used (Control points, Check Points or All points).



    • Save upon Exit
      LP360 for Windows now asks if you want to save a project before exiting.

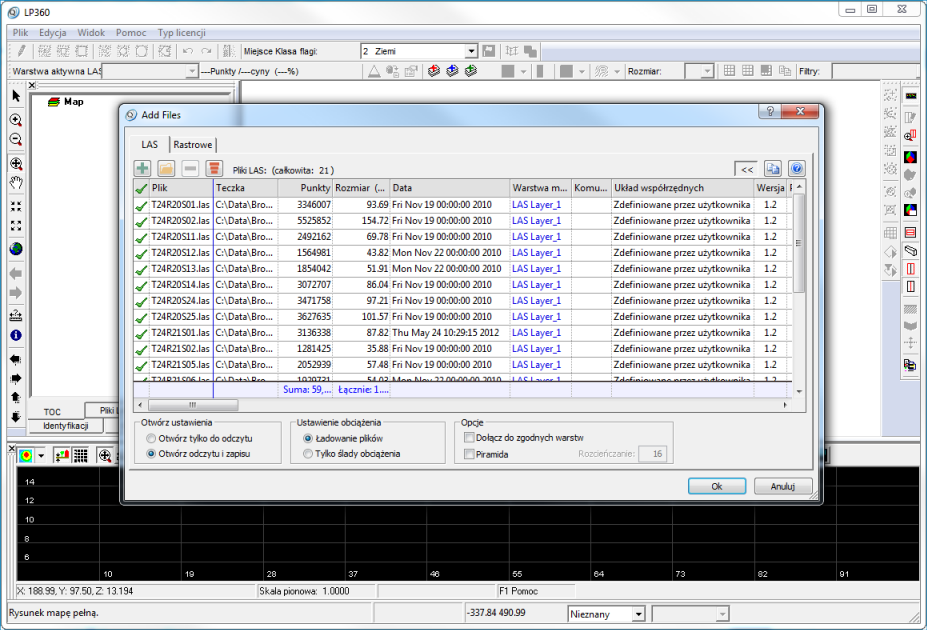

    • Polish Language Version
      LP360 is now available in Polish. This is the third localized version of LP360. Spanish and Japanese became available in 2013.



    • Non-Georeferenced Image Display
      Non-Georeferenced images can now be displayed in LP360 for Windows.

Modifications to Existing Features

• Volumetric Analysis tools have been simplified. You can now use the tools with minimal, if any, adjustments to the parameters. The options to customize your Volumetric task are still available; however, the simplified macros allow you to use a Volumetric task as they are with the default settings.
•

• Volumetric Analysis licensing level requirement has been reduced from Advanced to Standard.
•

• The Force All Points option is now available in the LP360 3D Viewer.
•

• The No Points option is no longer a selection in the LIDAR Layer Draw Tools. A no points display is now accomplished by simply toggling the LIDAR Layer Legend button on or off. This is also the case for the 3D View, The Profile View, and the Preview window.
•

• The LAS filename is now displayed when using the Identify tool.
•

• Point SHP Layers now support basic point symbols, triangle, square, circle, and cross, for display in LP360 for Windows.
•

• The error message that is displayed in the Import process when an invalid format is specified is now more informative.
•

• The Execute Active Task error message when a <Project Path> has not been set has been clarified.

• The Add Data Layer command on the LP360 toolbar in LP360 for Windows now exclusively adds shapefile layers.
•

• A new 'Use Base Polygon' checkbox on the Hull tab of Volume Point Cloud Task has been added. It disables the Hull perimeter and automatically uses the Base Polygon for the Hull Polygon.
•

• A new warning message displays when you attempt to execute a Point Cloud Task and new or changed parameters have not been saved or 'applied' with the Apply button.
•

• LP360 now remembers the Active Control Point Layer, Elevation Field, Drive Mode, and Pixel Size (ArcGIS only) between sessions in the project settings.
•

• Horizontal and Vertical graticules in the Profile View are now set to ON by default.
•

• The Pyramiding LAS Files status bar now displays the file count.
•

• The Cell Size is now automatically calculated based on point spacing when exporting surface models.
•

• The Draw Profile Line command has been modified so that a double-click at the end of the line drawn will use the current Profile depth. With a single click at the end of the line, you can still define a new Profile depth for the line.
•

• The default Profile Line Depth has been changed to 5 map units rather than 100.
•

• The default Graticules has been changed to 5/10 LINES rather than 5/10 map units in the Profile View for new projects.
•

• A new message in the TOC of LP360 for Windows now alerts you if a shapefile does not exist.
•

• 'Append' has been changed to 'Output Mode' in the I/O Manager.
•

• Feature layer display is now available in the 3D and Profile Windows in LP360 for Windows.
•

• Boundaries are now turned on by default when adding LAS files with the Footprint Only option.
•

• The output SHP file group is now available on all tabs in the Point Statistics Extractor PCT.

• The File Header check box list is now always enabled on the Point Statistics Extractor PCT.

• The Conflate PCT now requires a Standard license.

• A non-existent project Layer Name can now be entered in the I/O Manager.

• Shape files can now be created by importing ASCII text files.

• The rectangular stamp size has been modified so that it is no longer too small and restrictive.

• The speed of adding a large number of files to the Add LAS Files dialog has been increased.
•


• The ASCII XYZ command has been changed so it can handle descriptions with spaces between the comma delimiters.

• 'Buffer' has been changed to 'Classify' in Conflation dialogs to clarify the action taken by setting this option.

• The single task execute command for a Point Cloud Task now runs the active task in the PCT tab.

• The control point name is now loaded using a drop-down menu on the Control Points toolbar.

• Modified the length of the Profile cursor location bar to 10 screen pixels. This makes the location of the profile cursor visible in the Map View regardless of how narrow the profile line.
•

• Clarified the title bars of the Scale toolbox tool to be more accurate.

Defect Fixes

• Fixed an issue in which attempting to remove a layer when a shape file was missing resulted in an exception and layer removal failure. (3199)
•

• Fixed an issue in which attempting to Fit the Map when a shape file was missing resulted in an error message reading unable to open shp file and the map failing to update. (3200)
•

• Fixed an issue in which the Class Count value was incorrect in the Point Cloud Statistics Extractor for a large dataset. (3110)
•

• Clarified a confusing error message that was displayed when the source points filter in the Volumetric PCT caused no points to be included in the output LAS file. (3151)
•

• Fixed an issue in which opening files that did not have pyramids would crash when in read/write mode. (3154)
•

• Fixed an issue in which the Building undo/reclass did not always work. (2217)
•

• Fixed an issue in which the Undo class was not reverting flags. (2740)
•

• Fixed an issue in which selecting the Ground PCT with advanced settings was displaying the standard mode. (3124)
•

• Fixed an issue in which unloading or loading a LAS layer to a saved ArcMap project was crashing ArcMap. (3047)
•

• Fixed an issue in which files would not pyramid if Load Footprints only was selected in Load Settings. (3052)
•

• Corrected the Export wizard to read filter instead of source points. (3072)
•

• Fixed an issue in which the Conflation task would continually turn on if a field was unchecked. (3005)
•

• Fixed an issue in which LP360 was inserting random characters in the name of a file when trying to use a shapefile to clip raster grids. (2775)
•

• Fixed the ctrl-click Property dialog shortcuts, which were broken on certain keyboards.(2922)
•

• Fixed an error that occurred when running PCT conflation by project. (2923)
•

• Fixed the wording on the Conflation task dialog to read Classify instead of buffering. (2924)
•

• Fixed an issue in which the Run by Project command in LP360 for ArcGIS was not working. (2930)
•

• Fixed an issue in which a delay occurred in showing that files were being pyramided. (2931)
•

• Fixed Spanish version Volumetric Analysis property pages which were still reading Subtrahend and Minuend. (2390)
•

• Fixed an issue in which the conversion from LAS 1.2 to 1.4 was writing synthetic flags if 256 classes (TerraSolid) option was used. (2825)
•

• Fixed an issue in which Hillshading in the map was not honoring the Illumination Parameters defined for the 3D Viewer in LP360 for Windows. (2891)
•

• Fixed an issue in which creating a new QAQC shapefile was not being auto-selected in the target QAQC layer toolbar drop-down list. (2892)
•

• Fixed issues with missing tool tips, Add LAS Files dialog text, I/O Manager text, License Admin, and all other values defaults in LP360 Spanish version. (1691, 1696, 1697, 1705, 1712)
•

• Fixed an issue in which having an invalid path would throw COM exceptions and prevent access to ArcGIS. (2110)
•

• Fixed the Save to text file option that failed when requesting an evaluation license for LP360. (2385)
•

• Fixed an issue in which the Classification tab on the Symbology/Layer Properties dialog would allow duplicate classes using the Add button. (2828)
•

• Fixed an issue in which symbol markers were not being drawn for symbol sizes larger than 1 on the Classification tab on the Symbology/Layer Properties dialog. (2813)
•

• Fixed the title bar in the Export dialog box so that it now displays the active LAS layer. (327)
•

• Fixed an issue in which pyramiding LAS files using the right-click menu in the TOC did not update the pyramid icon in the LAS files tab. (2756)
•

• Fixed an issue in which pyramiding LAS files in ArcGIS using the right-click menu would cause ArcGIS to crash. (2757)
•

• Fixed an issue in which running Stats by the selected features tool would only extract one feature as an output despite multiple features being selected for the input. (177)
•

• Fixed an issue in which there was no clear indication that a software license had expired when a newer version of LP360 was installed. A message now informs users if the software is newer than the maintenance on the available licenses on the server. (1764)
•

• Fixed an issue in which exporting contours would cause a crash if enough memory could not be allocated. (1765)
•

• Fixed an issue in which the triangulation code was crashing with breaklines. (2599)
•

• Fixed an issue in which Volumetric Analysis was computing incorrect surface areas for larger denser datasets. (2717)
•

• Fixed an issue in which the Rail Extractor was not running in LP360 for Windows when the LAS Layer did not have a coordinate system. (2674)
•

• Fixed an issue in which Zoom did not work correctly when the 3D Viewer was open with direct drive. (1940)
•

• Fixed an issue in which clearing the Point Size field on several tabs of the Symbology tab (Layer Properties Dialog) caused LP360 to crash. (1946)
•

• Fixed an issue in which all features in a 3D polygon shapefile were not processed in a custom Volumetric Analysis task. (1970)
•

• Fixed an issue in which switching from the PCT tab to the TOC tab with invalid PCT values unnecessarily prompted you to save changes when switching back to the PCT tab. (1981)
•

• Fixed an issue in which selecting 'None' for the Conflation method and clicking Apply would crash LP360. (1982)
•

• Fixed the Retaining Wall method in the Conflation PCT, which was not working. (1984)
•

• Fixed instances in which pyramids were being created even though the 'Do not create pyramids' option was checked. (1979)
•

• Fixed the pyramid status icon, which did not appear correctly in LP360 for Windows. (163)
•

• Fixed an issue in which running a Volumetric Analysis on a complex shape would crash LP360. (1971)
•

• Fixed an issue in which Volumetrics would not honor a Point Filter. (1987)
•

• Fixed an issue in which the Map view would flash when points were selected in manual classification with an image layer, making the view unusable. (1988)
•

• Fixed the Exporting the Elevation Difference command, which was not producing the output difference file or deleting temporary files. (1989)
•

• Fixed the Zoom In and Zoom Out commands on an image layer, which caused LP360 to crash. (1983)
•

• Fixed an issue in which Volumetric Analysis with circles and polygon only surfaces was not working. (1848)
•

• Fixed an issue in LP360 for Windows in which switching from PCT tab to TOC tab and back to PCT tab would lose the selected task. (2017)
•

• Fixed an issue in which the Volumetric Analysis Cut-Fill image was not created when a Cut-Fill output directory did not exist. (2015)
•

• Fixed an issue in which LP360 would crash if the input shapefile specified for the Conflation PCT did not exist. (2016)
•

• Fixed an issue in which exporting using Cut by Polygons with a DGN was not naming correctly. (503)
•

• Fixed an issue in which the autoregistration email was not handling accented characters. (1092)
•

• Fixed an issue in which loading footprints only from the Add LAS Files dialog was very slow over a network drive.  (2098)
•

• Fixed an issue in which the Project Point Cloud Task tool was disabled in LP360 for Windows Volumetric task. (2078)
•

• Fixed an issue in which running Volumetric Analysis in LP360 for Windows would result in empty outputs if the polygon was drawn counter-clockwise. (1969)
•

• Fixed a issue that would cause a crash when an MXD document was saved in ArcMap with the LP360 extension enabled and then LP360 was disabled, then ArcMap was shut down and re-opened with the MXD document. (2076)
•

• Fixed an issue in which LP360 would crash when running the Control Report if the Control Report did not have an ID field. (2106)
•

• Fixed an issue in which opening files for read/write would cause a COM exception. (2111)
•

• Fixed an issue in which the Identifying Tool would not flash when selecting a point in the list for the feature layer in LP360 for Windows. (2113)
•

• Fixed an issue in which the execute error message was incorrect for Point Cloud Tasks when the output file had not been set. (2155)
•

• Fixed an issue in which the Help button was not working for the Point Statistics Extractor PCT. (2175)
•

• Fixed an issue in which the Clip to Polygon option was failing in LP360 for ArcMap. (2186)
•

• Fixed the Pyramid the LAS Files option, which was broken. (2187)
•

• Fixed an issue in which the breakline enforcement did not recognize SHP files in Windows 8. (2188)
•

• Fixed an issue in which breakline enforcement was not working on Windows 8 64-bit. (2220)
•

• Fixed an issue in which 'Use Only Selected Features' option was not working on selected features but on all features in ArcMap extension. (2240)
•

• Fixed an issue in which the LD Data (LDPyramid.exe) error was truncated due to I18N work resulting in no message being displayed. (2214)
•

• Fixed an issue in which running the pyramid command via the command line program would display I18N-related issues when running in Spanish on an English Windows operating system. (2192)
•

• Fixed an issue in which importing ASCII in Spanish would cause a crash. (2193)
•

• Fixed an issue in which reloading a saved project XML would not set the map units. (2210)
•

• Fixed an issue in which the clean up toolbar on the Planar point filter was half hidden. (2215)
•

• Fixed a COM exception that occurred when navigating to the last control point. (2248)
•

• Fixed spelling typos in the Open LAS Files Warning dialog and the second section of the Execute Point Cloud Tasks project dialog. (765, 1303)
•

• Fixed an issue in which the Volumetric Help button opened the incorrect Help topic. (1378)
•

• Fixed the incorrectly displayed icon for the Display by Files command in the Profile and 3D windows. (1569)
•

• Fixed an issue in which the Add Point Cloud Task drop-down menu would always display in English, even when using a different language resource file. (1692)
•

• Fixed an issue in which an invalid folder location removal would cause a crash. (2234)
•

• Fixed an issue in which LP360 would crash if an invalid file was added in the Add LAS Files dialog. (2264)
•

• Fixed an issue in which a saved MXD would crash ArcMap. (2131)
•

• Fixed an issue in which running a height filter on a single tile of data would cause a crash. (1809)
•

• Fixed an issue in which Windows 8 registration would appear the software update information page as Unknown. (1959)
•

• Fixed an issue in which the Execute Point Cloud Task command in the Preview window would cause a crash. (1962)
•

• Fixed an issue in which applying changes to parameters in Building Extraction would cause a crash. (2044)
•

• Fixed an issue in which in a Conflate PCT computing one or more Z values for the input geometry as a whole (Min Z and Max Z) within a distance of 3m of a 2D polygon would crash ArcMap. (2109)
•

• Fixed an issue in which flashing the coordinate of the line in the Identify command in LP360 for Windows would fail in Windows 8.1. (2123)
•

• Fixed an issue in which clicking a row in the Control Point report would not center the Profile view. (2347)
•

• Fixed an issue in which the toolbars and child windows were not remembered between sessions in LP360 for Windows. (2352)
•

• Fixed an issue in which clicking Cancel on the Point Cloud Task tab would not reload the original settings in the tab. (2389)
•

• Fixed an issue in which the Summarize Z option in the Conflation task would fail with multi-part geometry. (2407)
•

• Fixed an issue in which the Export command was showing all 256 classes irrespective of active layer type. (878)
•

• Fixed an issue in which there was a COM exception scrolling with the Control Point toolbar. (1209)
•

• Fixed an issue in which the properties on a shapefile in 64-bit would do nothing. (1300)
•

• Fixed an issue in which no license message had characters in the string. (1363)
•

• Fixed an issue in which contours were not turning off in the wireframe display. (1366)
•

• Fixed an issue in which the Map scale would change in resize but the indicator would not reflect the changed scale until a display refresh was performed. (1464)
•

• Fixed an issue in which errors created and returned by the LPImageLayer class were being ignored, such as when an unsupported image type was encountered. (1469)
•

• Fixed an issue in which the legend for Point Density didn't match the settings. (1523)
•

• Fixed an issue in which the legend didn't change for Point density or Dz imagery. (1524)
•

• Fixed an issue in which the ability to automatically add outputs to the map was missing for surfaces. (1626)
•

• Fixed an issue in which automatic Export Profile by feature or graphic would work with a basic license when it should be a standard license. (1752)
•

• Fixed an issue in which setting and getting classification on LAS 1.0 files was incorrect. (2429)
•

• Fixed an issue in which LP360 would crash when trying to get the component category grids. (2436)
•

• Changed seed grid shapefile name from 'sed' to 'seed'. (1298)
•

• Fixed an issue in which Corrupt LAS files would cause the Add Files dialog (old and new) to crash when exiting or attempting to remove the corrupt file from list. (2457)
•

• Fixed an issue in which placing the cursor in the title bar of the Profile or 3D window would blank the display if the windows were floating. (2396)
•

• Fixed an issue in which the Volumetric LAS output did not match the TIN subtraction. (2424)
•

• Fixed an issue in which exporting contours with Cookie Cut by Polygon using 3D was failing. (2516)
•

• Fixed an issue in which setting a new class was failing with LAS 1.0. (2570)
•

• Fixed an issue in which importing an ASCII text file as a shape file would fail with many spaces in it. (2566)
•

• Fixed an issue in which incorrect volume was computed when using Constant Z Surface Generation method in Volumetric Analysis task. (2701)
•

• Fixed an issue in which stockpile volumes were changing significantly for different size bounding polygons outside the point coverage. (2702)
•

• Fixed method of Volumetric Analysis (should not use Fast TIN method). (2703)
•

• Fixed an issue in which a Basic Viewer License was incorrectly granted when a user was unable to get a license from a floating license server. (1961)
•
