New Features

• Feature Edit Toolbar
  The Feature Edit Toolbar in LP360 for Windows® / Topolyst now offers a group of tools that allows you to create, delete, move, and edit features at the individual vertex level. Vertices can be edited in both the map window (for planimetric editing) and in the profile window (for vertical editing). The Feature Edit tools integrate seamlessly with the point cloud task (PCT) Z conflation tools, allowing for automatic assignment and adjustment of the Z value of individual vertices, groups of vertices, or entire features.

  These include commands for: Selecting Feature Layers, Saving Feature Edits, Discarding Feature Edits, Creating Feature Layers, Creating Features, Selecting Features, Moving Features, Editing Vertices, Adding Vertices, Deleting Vertices, Reshaping Geometry, Splitting Geometry, Simplifying Geometry, Respacing Geometry, Reversing Geometry, Showing the Vertex Properties Dialog, Showing the Feature Edit Options Dialog, Undo/Redoing Feature Edits, and Deleting Features.

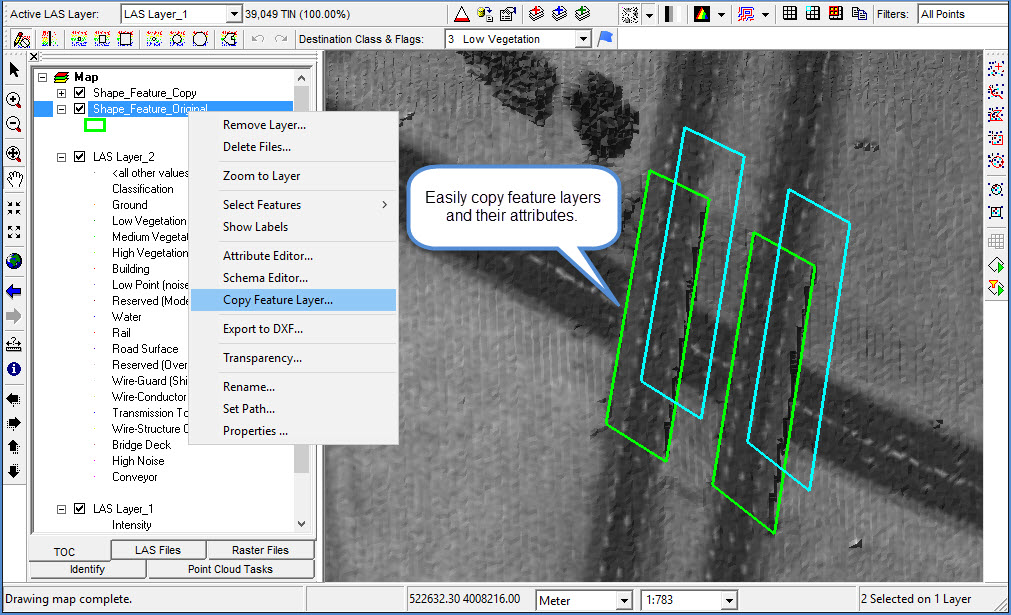

• Copy Feature Layers
  In LP360 for Windows / Topolyst, you may easily copy features and their attributes using the Copy Feature Layer dialog.



  Options to append to an existing shapefile, copy attributes, and add to the map window are available in the dialog, as well as a text box for naming the copy layer.

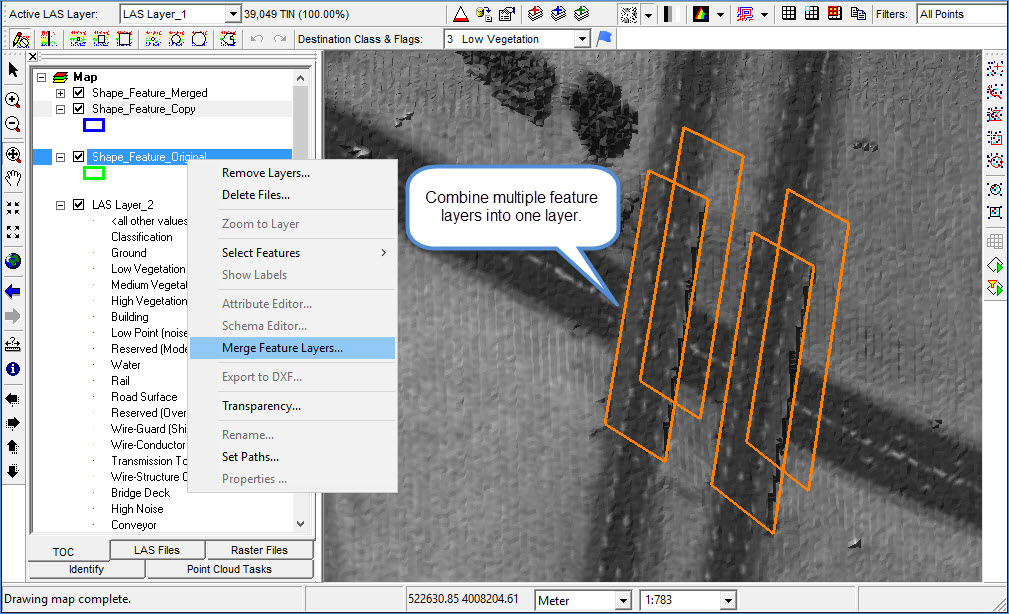

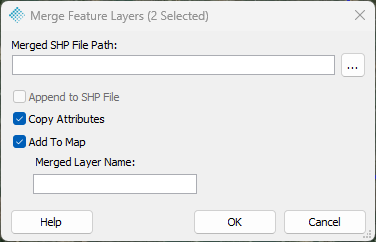

• Merge Feature Layers Dialog
  In LP360 for Windows / Topolyst, you may combine multiple shape layers into one shapefile by using the Merge Feature Layers dialog.



  Options to append to an existing shapefile, copy attributes, and add to the map window are available on this dialog, as well as a text box for naming the merged layer.

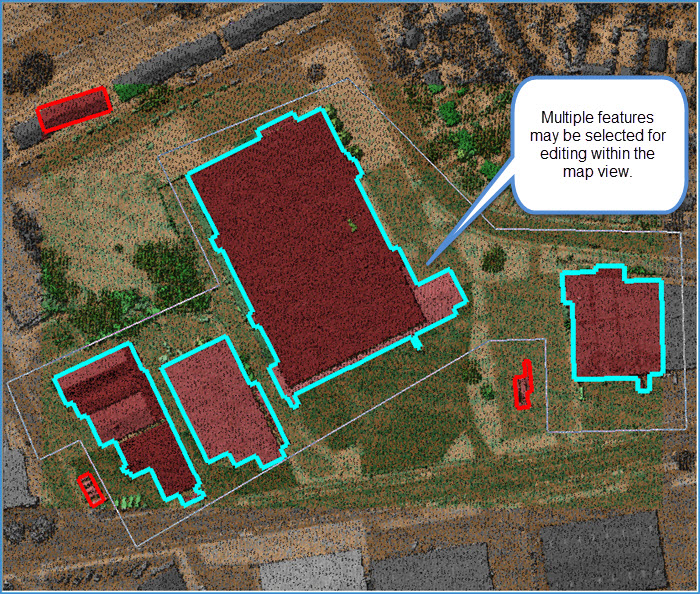

• Select Features
  In LP360 for Windows / Topolyst, one or more features may now be selected for editing within the map view. A feature must be selected before a feature level edit (move, delete, Auto Z, Interactive Z, etc.) can be applied. You can choose among a lasso tool, a drag select tool, or a digitize polygon tool for selecting features. Single clicking the edge of a feature works with all three tools.

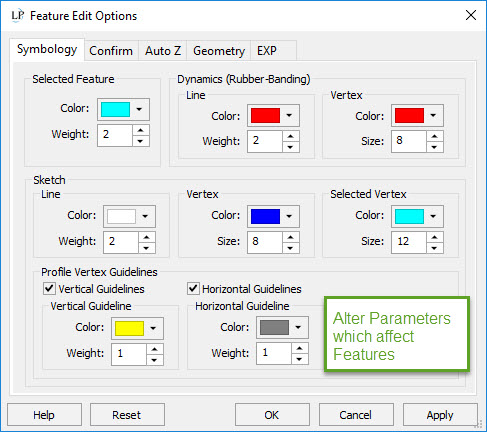

• Feature Edit Options Dialog
  In the Feature Edit Options dialog in LP360 for Windows / Topolyst, you may alter parameters affecting feature symbology, confirmation dialogs, Auto Z settings, and geometry settings.

• Symbology – Configures the symbology for the various Feature Edit display modes.

• Confirm – Enables / disables confirmation dialogs for certain feature edit operations.

• Auto Z – Configures the methods for automatically assigning Z values to the vertices of features.

• Geometry – Configures processing parameters for tools such as Simplify Geometry and Respace Geometry.

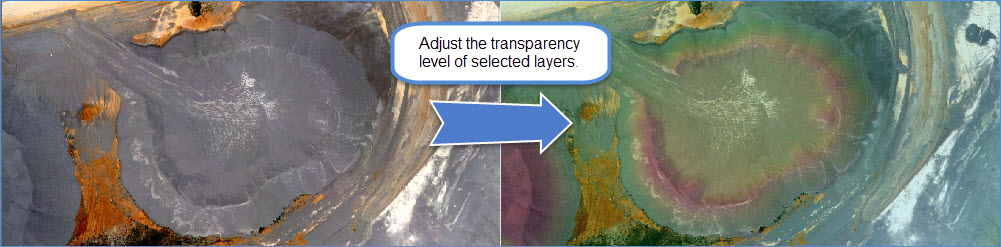

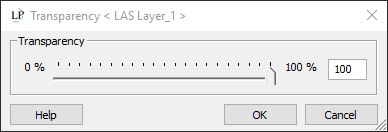

• Transparency
  In LP360 for Windows / Topolyst, the Transparency dialog allows you to change the transparency level of a selected layer from between 0% (no transparency) and 100% (invisible) by dragging the slider in the slider control to the left or right to decrease or increase transparency respectively. Alternatively, you can enter an integer value between 0 and 100 into the text box to the right of the slider area to set an exact percentage of transparency.

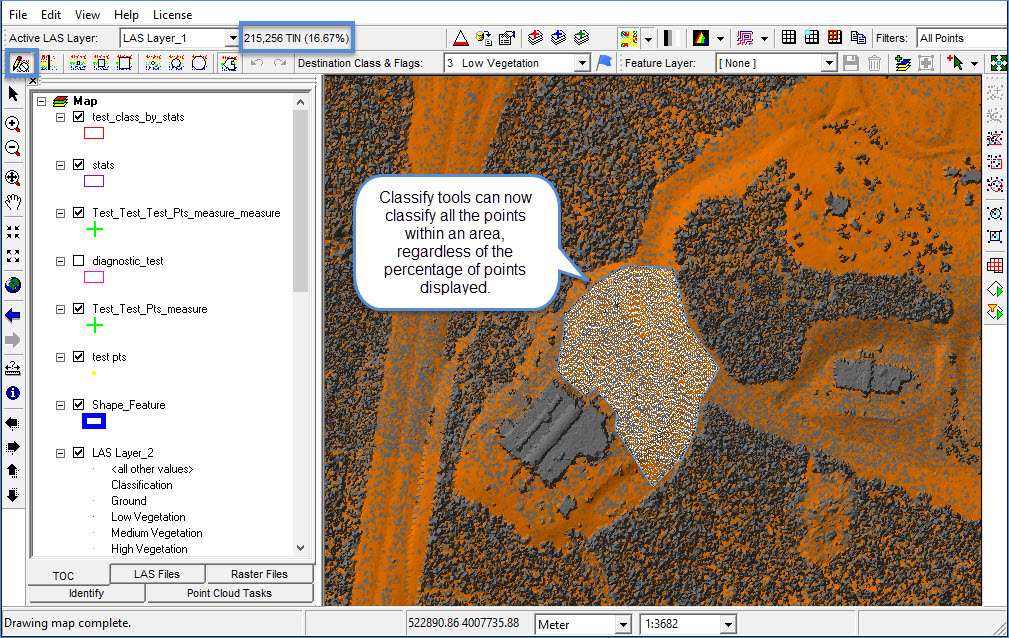

• Classify Non-visible Points
  The Classification Toolbar Edit button has been repurposed to Classify non-visible points when pressed. With LP360 2016.1, the user can choose to classify points using the Classify Non-Visible Points command. This allows users to either classify OR not classify points turned off in the display filter. This also includes the Profile View.

• Point Classification at less than 100% resolution In addition, the 2D Map View now allows classification at less than 100% point resolution. This capability allows the user to edit point classifications without needing to load an entire point cloud.

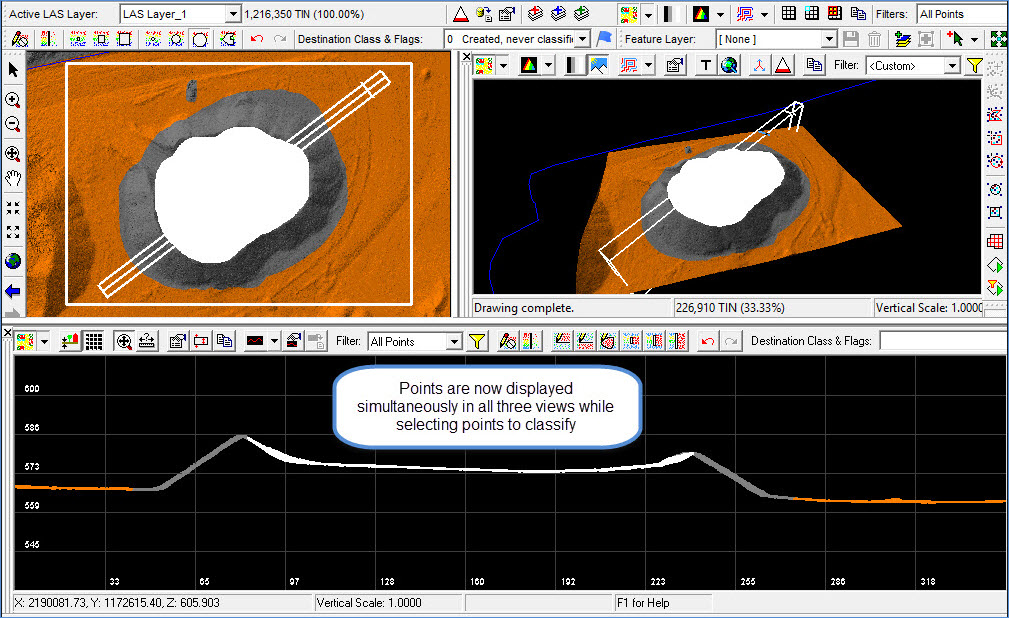

• Classification Selection Displayed Across Views
  Now when classifying points with the classification tools on the Classify toolbar, selected points will display on the 2D map view, 3D, and profile views. Selected points are updated simultaneously on all three views. This allows the user to have a sense of context when they are selecting points in a data set.

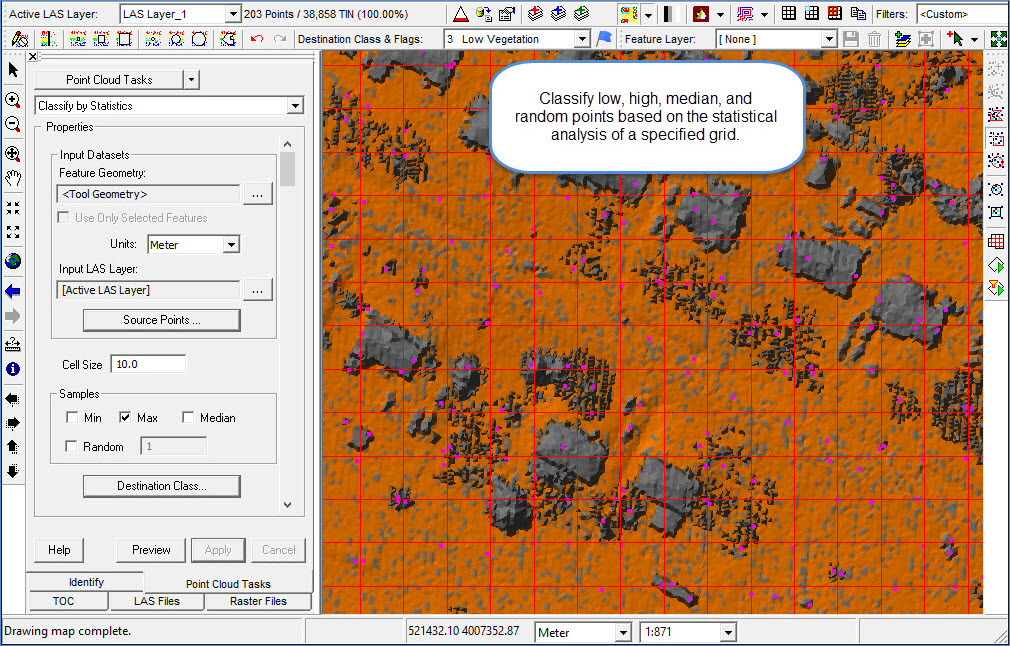

• Classify by Statistics Point Cloud Task
  The new Classify by Statistics point cloud task allows for the classification of points based on the statistical analysis of a gridded area of interest. If you wish, you may produce a shapefile of your grid during the process of this point cloud task.

  Statistics supported by this point cloud task at this time include: Low Point, High Point, Median Point, and Random Points.

  This task is primarily useful for thinning points based on these statistics.

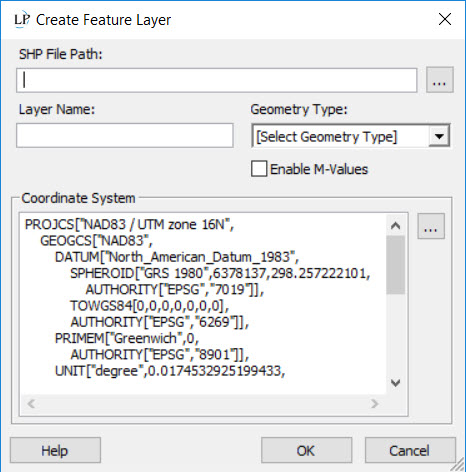

• Create Feature Layers
  In LP360 for Windows / Topolyst, you may now create feature layers, give them a geometry type, and set their coordinate systems using the new Create Feature Layers dialog. Geometry types include 2D points, lines, and polygons as well as 3D points, lines, and polygons. Once created, you may use the new Create Feature command on the Feature Edit toolbar to add features to your new feature layers.

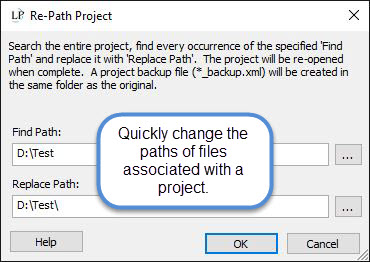

• Re-Path Projects
  In LP360 / Topolyst, you can set a default data path for your current project by setting a project path. If you wish to change the path of a project you have been working on, you can use the new Re-Path Project dialog to find all instances of the specified path and replace it with a new one. When the program is finished, the project will be re-opened and a project backup file (*_backup.xml) will be created in the same folder as the original path.

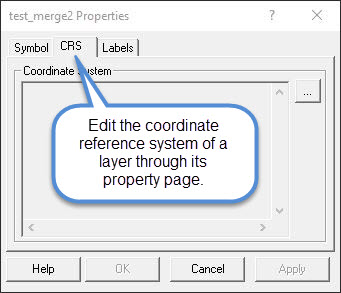

• Coordinate System Property Page
  In LP360 for Windows / Topolyst, you can check and alter the coordinate reference system (CRS) of a layer through its property page. In the property page's "CRS" tab, you can open the Select Coordinate System dialog, where you can set or change a layer's coordinate system and datum.

• Breakline Enforcement Button Shortcut
  There is a new button shortcut to enable breaklines in the Map, Profile, and 3D views with one click.

LP360 Main Toolbar:

3D Viewer:

Profile View:

Modifications to Existing Features

• The "New" option on the Save/Update Stored Filter dialog, accessed through the Live View dialog, allows you to create additional filters based upon existing filters.

• The LAS Layer Properties window now indicates within the header which LAS Layer it is in reference to.

• When exporting point cloud tasks, an "Overwrite File" confirmation had been added.

• The Import Task command has been modified so that the imported point cloud task then becomes the current task.

• The "Select Feature" cursor has been changed to a cross-hair to clarify single-click selection.

• A new version of the OpenGL display has been designed and implemented to improve performance and to utilize the video card’s GPU where available.

• The “Window Center” and “Fit Selected” buttons on the Attribute Editor dialog have been changed from single-click buttons to toggle switches.

• An option has been added to set the Project Coordinate System on the Project Settings dialog.

• The “Name” attribute value is now added from the input layer/file to the output volume shapefile.

• When selecting features through the attribute editor, the 3D window syncs with the Map window.

• If a field exists in a shapefile called “Name” (case insensitive), the program will now default the labels to this field.

• In LP360 for Windows, there is now a show/hide labels option accessed by right clicking a feature layer in the Table of Contents.

• If an input geometry has an ID for a volumetric task, that ID value is then copied to the output volume shapefile.

• The Destination Flags button image on the Classify toolbars now shows a checkmark if any flags are set.

• Fields for “Direction” and “Points” have been added to the Identify dialog.

• An option to “Select Clockwise Features” has been added to the right-click Table of Contents menu.

• A Reverse Geometry command has been added to the right-click Table of Contents menu which works on lines and polygons.

• The Profile Window can now be driven like the 3D Window when enabled in the Attribute Editor.

• The profile right-click menu items “Persist Edit Geometry” and “Auto Commit” now work independently.

• The classify toolbar buttons now remember the destination classes set.

• On the LP360 Export Wizard dialog, the output folder now defaults to the “Project Path” when it is set. Browsing for a folder will also default to this location.

• Now you can press CTRL+R while opening LP360 to reset the application layout.

• There is now “Select Coordinate System” support for the LAS, raster, and feature Layer Properties dialogs.

• You can delete files by right clicking on a heterogeneous group of selected layers. If you multi-select layers in the Table of Contents (TOC) and at least one of those is a feature layer (.shp), then the Delete Files command enables on the right-click.  This command will not delete associated Raster or LAS files.

• In the 3D Window, the feature layer now overlays on top of the TIN display.

• A text box for Sun intensity has been added to the “3D View” tab of the 3D window’s Viewer Properties dialog, allowing you to input a percentage between 0 and 100%.

• New Options have been added to the Volumetric Analysis point cloud task allowing you to select “Cut,” “Fill,” and “Diagnostic” attributes to be outputted.

• The Run by Feature layer will default to the layer that has selected features when possible.

• The setting of profile graticules has been enabled for the viewer license.

• The contour string building algorithm has been improved such that the display performance of contours based on Model Key Points and TINs is much better.

• Multi-Select “Use” toggle capability has been added to the Control Points Report dialog. Also, all combinations have been added to the Quick Set box.

• The ability to set the path of a Feature Layer has been implemented as a right-click Table of Contents command.

• A right-click menu has been added to the Raster Files pane of the Table of Contents in LP360 for Windows, allowing for the selection and removal of files and the setting of paths.

• On the Control Points Report dialog, a “clear” option has been added to the Quick Set options.

• The ability to change license levels in the ArcMap extension has been added.

• The License Administrator runs under a non-administrator login.

• The Resolve Layer Selection dialog has been implemented to be used by commands that require that features be selected on a single layer only.

• An option has been added to enable or disable the logging of “System Events” to the Project Settings dialog.

• Shift and Control key behavior have been implemented for the selection of vertices and geometry.

• Added "Select/Unselect All Vertices" options to the menu when user right-clicks on a selected feature to edit.

• Added a right-click table of contents command for renaming a selected layer in LP360 for Windows.

• Identify is now defaulted to “All Layers” instead of “Top Most Layer”.

• You can still navigate in the map view after using shift override (pressing the Shift key), similar to the profile view.

• Display filters display red text if a filter is in play, applying to all “Viewer Properties” and “Source Points” dialogs.

• You are allowed to navigate in the profile window while using the shift key for any tool.

• Filter buttons now display “<<Source Points>>…” when a point filter is actually set.

• For the categories a user has selected in the Manual Classification Filter, points are displayed that fall into those categories while you are selecting points to classify.

• An option has been added to the profile window, allowing one to move vertices in the XY directions relative to the angle of the profile window.

• Total and selected vertex counts are now added to the status bar when a single feature is selected in LP360 for Windows.

• Breakline Enforcement now displays “<<Breakline Enforcement>>” when enabled and at least one layer is used.

• Surface buffer settings, used to buffer blocks in the export process, are added to the Project Path in Project Settings. Now, you can save buffer settings as settings unique to the currently opened project in both LP360 for Windows files and ArcMap project files.

• The project area has been added to the Project Settings dialog with selectable units open.

• On the Control Points Report dialog, the default selection order for a unique name attribute has been changed to the following order: 1. “Name,” 2. “ID,” and 3. “FID.”

• Increased the performance of LP360 for Windows in drawing shapefiles with thousands of polygons.

• Fixed an issue in which the conversion of LAS version 1.2 files to version 1.4 would drop the scanner number.

• In LP360 for Windows, renaming a feature layer in the Table of Contents automatically renames its associated SHP/DBF/PRJ/SHX/SBN/SBX files to match it.

Defect Fixes

• Fixed an issue in which the "save" and "load" buttons shown on the "DZ" tab under the Symbology tab on the Active LAS Layer Properties dialog were "hidden" in the English version of LP360 for Windows. (2200)

• Fixed an issue in which the cursor would disappear while digitizing using the conflation point cloud task on a TIN with points whose symbology were gray. (2209)

• The default color for the "High Noise" classification has been changed from black to purple to increase visibility. (2222)

• Fixed an issue in which creating new macro tasks would make the properties pane display dysfunction, showing a blank task list in the upper section but displaying the bottom section of whatever the previous active point cloud task was before creating the macro. Selecting one of the buttons in the bottom section would crash the application. (2224)

• Fixed an issue in which the previously available export types in LP360 for Windows were hardly visible in the Windows version of LP360. (2225)

• Fixed an issue in which toggling between the advanced and standard modes for the Adaptive TIN Ground Filter would leave the "Use Automatic Parameters" option unselected. (2242)

• Fixed an issue in which the LAS files tab on the Table of Contents did not refresh until after a forced refresh. (2735)

• Fixed an issue in which the map view was not zooming the display to the control point profile location when selecting a control point from the control point report. (3089)

• Fixed an issue in which points would not display in the 3D window in certain cases when displaying by elevation or intensity and drawing points on a TIN. (3832)

• A note has been added within the Attribute Editor dialog to clarify that a double-click within a cell is required to enable edit mode. (3950)

• Fixed an issue in which the legend would disappear from the Table of Contents. (4038)

• Fixed an issue in which inserting a new task into a copied macro would crash the application. (4079)

• Fixed an issue in which the import command would only partially import something if it encountered blank spaces. (4328)

• Fixed an issue in which clicking between buttons on the Tool Palette drop-down menu would sometimes lock up LP360. (4411)

• Fixed an issue in which clicking the "Filter" icon on different views, while the Live View remained displayed, was not updating the "Apply" check-box. (4433)

• Fixed an issue in which the 3D view was not clipping vectors to the extents of LAS data and was showing all the vectors that were outside of the clipping box. (4434)

• Fixed an issue in which cursors in the Profile or 3D Windows were virtually invisible on a gray background. (4440)

• Fixed an issue in which both the 32 bit and 64 bit versions of the LDReorder executables were crashing. (2434)

• Fixed an issue in which the Load Export Settings dialog said “Save” instead of “Open” when trying to read in a saved export settings XML file. (3759)

• Fixed an issue in which LDDump.exe would not display Well Known Text (WKT) info and instead showed "no overall EPSG code" for LAS v1.4 files. (4068)

• Fixed an issue with the Height Filter in which the decimal portion of a range value would get erased after restarting LP360 for ArcGIS. (4194)

• Fixed an issue with the Live View Returns tab, in which the Return Number/Number of Returns buttons were "sticking" in the "Hot Tracked" color giving a “pressed" look. (4445)

• Fixed an issue where the application was crashing when trying to run the “Volumetrics” point cloud task with a base shapefile. (4450)

• Fixed an issue in which the application was crashing when one would click on a preview window for a building macro. (4453)

• Fixed an issue in which the Basic Filter would not work if there were more points for the edit manager. (4456)

• Fixed an issue in which the distance reading was not disappearing from the profile window after the Measure tool had been exited. (4464)

• Fixed an issue in which the Modify Profile Depth dialog was cut off in the profile window when running LP360 on Windows 10. (4465)

• Fixed an issue in which the Attribute Editor dialog would display on top of other applications. (4474)

• Fixed an issue in which the Full Extent command would not work when there were empty feature layers. (4477)

• Fixed an issue in which duplicate measurement shapefiles were being created if there were no active project loaded. (4478)

• Fixed an issue in which when a measurement file was removed, an error message would display “Failed to get Use attribute index” instead of displaying that the measurement file was not found. (4479)

• Fixed an issue in which the application was crashing while adding LAS Layers. (4481)

• Fixed an issue in which the summarize conflation method was broken in the Conflation point cloud task using tool geometry. (4485)

• Fixed an error in which creating features was causing duplicate IDs to be generated on SHP file features. (4488)

• Fixed an issue in which volumetric analysis would fail if the “Name” attribute was not present in the input shape layer. (4490)

• Fixed an issue in which the application would crash if the Attribute Editor was closed by clicking the top right "X" during editing. (4494)

• Fixed an issue in which the Control Point Report would become corrupted if the dialog was cancelled and the points measured after navigating from the control point toolbar. (4496)

• Fixed an issue in which polygon labels were sometimes either not drawing or they were drawing in the wrong place for feature layers. (4497)

• Fixed an issue in which users would occasionally get an Error Initializing dialog when trying to display the Live View dialog. (4502)

• Fixed an issue in which dynamic rotation and zoom in the 3D and profile windows were very slow when large SHP files were loaded in LP360 for Windows. (4503)

• Fixed an issue in which LDDump.exe was not displaying Extended Variable Length Records (EVLR) data. (4508)

• Fixed an issue in which the Export wizard allowed the writing of LAS 1.4 PDRF more than or equal to 6 with blank well-known text (WKT). (4509)

• Fixed an issue in which CRS WKT strings in LAS files output by GeoCue were not recognized by the LP360 Select Coordinate System dialog. (4514)

• Fixed an issue in which the Grid Size Eye Dropper on the Toe Extractor would display an error when the sample area was drawn in the counterclockwise direction. (4520)

• Fixed an issue in which exporting contours would fail if the LAS files were in a user defined coordinate system. (4521)

• Fixed a bug on the Export command where the "Finish" button would not enable when the "Cookie Cut" output files option was selected. (4523)

• Fixed an issue in which the “pure drape” option was broken in the Conflation point cloud task. (4524)

• Fixed an issue in which the Conflation point cloud task would not let you classify points within closed lines. (4525)

• Fixed an issue in which loading export settings, cancelling the Export Wizard, and then re-opening the Export Wizard would cause the application to crash. (4527)

• Fixed an issue with the Project Settings dialog, in which the Browse for Folder window would not start at the current folder. (4528)

• Fixed an issue in which the Points Statistics filter was returning “garbage” for standard deviations in areas with only 1 point. (4529)

• Fixed an issue in which there were errors writing a coordinate reference system to large LAS files. (4532)

• Fixed an issue in which LP360 was not reading the correct EPSG codes out of GeoTiff Headers. (4536)

• Fixed an issue in which the Ground Cleaner seed points did not snap to LAS points by default. (4539)

• Fixed an issue in which the Identify command would report negative areas for counterclockwise polygons. (4541)

• The destination classes are now remembered for each classify tool when selecting the class from the drop down menu. (4543)

• Fixed an issue in which thinning by stats was not classifying the pyramid points. (4546)

• Fixed an issue in which thinning by stats was very slow in writing shape files. (4547)

• Fixed an issue with the Control Points Report dialog, where sorting by any column would break measured points afterwards. (4548)

• Fixed an issue in which the Control Points Report dialog would corrupt measurements when duplicate control point names existed. (4550)

• Fixed an issue in which several error messages would occur when displaying the Export dialog if LAS 1.4 files were in the active layer. (4551)

• Fixed an issue with the Jump Map commands displaying the wrong tool tips. (4552)

• Fixed an issue in which drawing a new profile line while auto commit classify was enabled in the profile view would crash LP360. (4553)

• Fixed an issue in which the Low/Isolated Point Filter “Isolated Class” setting would always remember the “Rail” class. (4559)

•  Fixed an issue in which the Export dialog would not write the EPSG codes of selected coordinate reference systems when possible and selected. (4563)

• Fixed an issue in which the Control Points Report dialog was crashing while measuring points in LP360 for Windows. (4567)

• Fixed an issue on the LP360 Export Wizard dialog in which the “Add to Map” option would not work for inverse distance weighted (IDW) surfaces. (4570)

• Fixed an issue in which the application would crash if the layer was turned off and one was trying to do manual classification. (4571)

• Fixed an issue with the Import ASCII ‘XYZ+’ Point Files Wizard dialog in which the class combo was displaying when selecting the LAS version incorrectly. (4572)

• Fixed an issue in which the “Generate shape file” option on the point cloud task dialog had synchronization issues. (4573)

• Fixed an issue in which the Classify by Statistics point cloud task would sometimes skip a cell and not classify all of the points. (4591)

• Fixed an issue in which the default preview window size was too narrow for tools. (4611)

• Fixed issues with the execution of the Ground Cleanup Filter. (4614)

• Fixed an issue in which the Classify by Statistics point cloud task would run very slowly if “Run by Polygon” was selected and the polygon was very complex. (4619)

• Fixed an issue in which the retaining wall method was not working in the Conflation point cloud task. (4620)

• Fixed an issue in which exiting ArcMap with the preview window displaying would prevent the preview window from displaying in the future. (4621)

• Fixed an issue with the Add Files dialog, which would crash when adding large (1500+) numbers of LAS files. (4622)

• Fixed an issue in which the application was crashing while updating a status message. (4635)

• Fixed an issue in which LP360 was exporting LAS files with the .las extension twice. (4640)

• Fixed an issue in which the coordinate reference system for LAS layers were not initialized with the first LAS file added to a layer. (4672)

• Fixed an issue in which the project coordinate reference system was not initialized with the coordinate reference system of the first LAS file added to the project. (4673)

• Fixed an issue in which the application was crashing while trying to get the context menu. (4674)

• Fixed an issue in which selection did not work on feature layers that had zero vertex shapes. (4675)

• Fixed an issue in which breakline enforcement was always set once you had it set on the Volumetric Analysis task. (4683)

• Fixed an issue in which Summarize Z with constant Z was not working with shape layers or files. (4700)

• Fixed an issue in which the unit combo was not initializing correctly with 1.4 LAS well-known text files. (4726)

• Fixed an issue in which the application was crashing while trying to update the LAS files window. (4727)

• Fixed an issue in which the application was crashing while generating TIN surfaces. (4739)

• Fixed an issue in which multi patch shapefiles did not display in LP360. (4744)

• Fixed an issue in which the constant Z option was failing in interactive cases. (4750)

• Fixed an issue in which linear units were not set correctly in output .prj files if the LAS file had linear units in it apart from overall epsg codes. (4757)

• Fixed an issue with the Attribute Editor dialog in which it would not sync selected records with new the “Select Feature TOC” commands. (4765)

• Fixed an issue in which the application would crash while trying to show labels. Crash reports would show that annotation text was null. (4766)

• Fixed an issue in which the Draw Profile command would stop responding if interrupted by another digitizing command. (4769)

• Fixed an issue in which LP360 was crashing when trying to run a project. (4770)

• Fixed an issue in which the profile was not centering correctly when selecting the first or last two vertices within a closed polyline. (4912)

• Fixed an issue in which raster images were misaligned with map data while zoomed in. (4921)

• Fixed an issue in which clipping plane lines were not showing up in the profile window when selecting the clipping plane button. (4922)

• Fixed an issue in which the zoom image would get “squeezed” on the 2D window. (4923)

• Fixed an issue in which the Japanese Add Files dialog would crash when adding LAS files into LP360. (4937)

• Fixed an issue in which the TIN code would crash with the Longview North data set. (4939)

• Fixed an issue in which the Add Class Values dialog was chopped off on the right side of the dialog. (4940)

• Fixed an issue in which LP360 was crashing when conflating in interactive mode. (4941)

• Fixed an issue which the application was crashing after pyramiding LAS files. (4953)

• Fixed an issue in which the background color change was causing a color shift on the backing store image during pan and dynamic zoom. (4962)

• Fixed an issue in which raster images would sometimes look coarse when zoomed in. (4959)

• Fixed an issue in which the Web Map Service (WMS) was not displaying. (4989)

• Fixed an issue in which point cloud tasks that didn’t rely on point density would still spend time computing this information before starting to run, becoming time consuming. (4408)

• Fixed an issue in which the point dropper from the toe extractor property page was not using the toe extractor’s current point filter. (5024)

• Fixed an issue in which some Web Map Service Layers appeared to be upside down with inverted text. (5027)

• Fixed an issue in which the preview window was not displaying results from the building extraction point cloud task after a macro was run. (5049)

• Fixed an issue in which LP360 would fail to open some 1.4 LAS files with very large Extended Variable Length Records (EVLR). (5065)

• Fixed an issue in which attempting to check for updates from within the License Administrator would give an error saying “Unable to check for updates. Currently not licensed (24271)”, even if the software was licensed and able to run. (4799)

• Fixed an issue in which the ArcMap Point Cloud Task Preview dialog was not setting the map extents in its 3D window control so the display was blank. (5069)

• Fixed an issue in which the Point Cloud Statistics Extractor was failing while creating temporary filenames for appending. (5080)

• Fixed an issue in which the application was crashing when it was trying to set icons on the Live View. (5082)

• Fixed an issue in which there was a performance slowdown on Model Key Points with Dynamic Contours. (4969)

• Fixed an issue in which changing the “Quick Set” option on the Control Point dialog would cause multiple map updates for each point in the list. (5088)

• Fixed an issue with the Control Points dialog, where the windows didn’t drive when the “Use” check box was toggled. (5089)

• Fixed an issue in which running a ground classification routine in LP360 for Windows (64-bit) was resulting in an error message that said that there wasn’t enough memory resources available and to try using the 64-bit version. (1296)

• Fixed an issue with the Control Points Report dialog in which the arrow keys would not work and measurements would drive to the wrong point. (5103)

• Fixed an issue in which the “Set Paths” right-click table of contents command for LAS files did not work in LP360 for Windows. (5125)

• Fixed an issue in which when attempting to re-project LIDAR files, the files were not being written out. (4955)

• Fixed an issue in which the application would not add LAS Layers to the table of contents. (5140)

• Fixed an issue in which the application was crashing due to LAS files with zero points. (5197)

• Fixed an issue with the performance of draping a line over a TIN.

• Fixed an issue in which an exported hole on an export raster FLT file with Breaklines on a large data set was not correct. (5224)

• Fixed an issue in which you were allowed to digitize line polygon geometry for an unsaved point cloud task. (5257)

• Fixed an issue in which volumes were incorrectly computed for LAS files that did not contain CRS info. (5266)

• Fixed an issue in which the point dropper and draw window tools were not working. (5270)

• For classification within the profile window, the second mouse click to commit “Above/Below the line selection” has been removed. (5295)

• Fixed an issue in which there were funny characters in the license request form for e-mail IDs. (5299)

• Fixed an issue in which LP360 would fail to open Pix4D generated LAS files. (5303)

• Fixed an issue in which the profile line drape by point ID was not using the correct colors. (5304)

• Fixed an issue in which creating a DEM that was breakline enforced would result in "no data" values within the breakline. (1976)

• Fixed an issue in which one would lose the ability to scroll in the profile view and instead the map window would scroll. (3861)

• Fixed an issue in LP360 for ArcMap, in which the layer coordinate reference system would remain “Unknown” after importing a LAS file containing well known text coordinate reference system information. (5357)

• Fixed an issue in which the Add Files dialogue would display “unknown coordinate system” for LAS 1.4 PDRF6 with a coordinate reference system in well-known text. (3038)

• Fixed an issue in which when using the ArcToolbox tool to define LAS file projection with a LAS v1.4 file, the well-known text would not be inserted into the header. (5292)

• Fixed an issue in which EPSG codes were not written correctly when exporting LAS v1.4 files. (4066)

• Fixed an issue in which scrolling in the profile window was very slow when the active control point layer contains a large number of points. (5405)

• Fixed an issue in which an incorrect value was assigned for GeoTiff key 2050. (5411)

• Fixed an issue in which NULL was written for the linear units GeoTIFF tag when exporting LAS files. (5412)

• Fixed an issue in which LP360 WKT was not version 1.4 compliant. (5426)

• Fixed an issue in which the application was crashing after running volumetric tasks and adding layers to the map. (5446)

• Fixed an issue in which the Add Files dialog was not displaying the vertical units tag. (5452)

• Fixed an issue in which exporting ASCII XYZ data from the Export Wizard while using class 11 would cause the progress bar to stall and nothing would happen. (1756)

• Fixed an issue where the 3D View in ArcMap was not displaying the fusion of LAS points on top of TIN correctly in either shader or wireframe modes. (5511)

• Fixed issue where context-sensitive help was not displaying correctly for most tools on the 3D Window toolbar. (5514)

• Fixed issue where incorrect context-sensitive help IDs were being requested for some tools on the Profile toolbar. (5518)

• Fixed an issue in which the Identify command was crashing on very large contour shape files. (5475)

• Removed the 100% point resolution restriction on breakline enforcement in the 2D and 3D displays. (5522)

• Fixed an issue where LP360 crashed during a point cloud task due to a bug in point density calculation code. (5553)

• Fixed an issue where zooming in the 3D Window was very slow due to a very small zoom scale factor in the 3D zoom code. (5557)

• Fixed an issue with the 'PntCnt' field in Statistics Extractor. Before the width value was 11, which could cause the user not to be able to store the value for all points. Now, it is a width value of 19 and the total number of discrete points is able to show (and for very large projects). (5558)

• Fixed six buttons on the Viewer Integration toolbar which were not mapped to context-sensitive help. (5560)

• Fixed an issue where context-sensitive help IDs did not exist in LP360 for 'Add WMS Layer', 'Copy to Clipboard', the entire Control Points toolbar, and the entire Display and Navigatioin toolbar. (5571)

• Fixed an issue where Visual Basic Command line tools LP360ExpLAS.exe, LP360PntDen.exe and LP360Stats.exe were not honoring wild cards (asterisks to save time in manually typing filepath) in the folder path. (5613)
