LP360 2017.1 Service Pack A Release Notes

Defect Fixes

• Fixed an issue with LDexport.exe failing to create .shp file

• Fixed an issue with adding a Height Filter to a Macro not prompting user to save and clearing settings when forgetting to hit apply.

• Fixed an issue with LP360 crashing when a shape file layer did not contain the file name.

• Fixed an issue with LP360 crashing when reopening a project with a measured control points file.

• Fixed an issue with some orthometric datums missing Geoid12B.

• Fixed an issue with the cursor causing a mismatch between graticule labels and coordinate readout in profile view.

• Fixed an issue with the Profile graticule display to be incorrect compared to coordinate readout and points displayed.

• Fixed an issue with user modified filters not prompting to save when used in a macro.

• Fixed an issue with Ground Cleanup not working in the Standard license level.

• Fixed in issue in the Japanese version of LP360 that caused LP360 to crash when adding raster files to a project.

• Fixed an issue with Stockpile Extractor crashing when set to parameters of Maximum Size: 40,000 and Grid Size: 0.5.

• Fixed an issue in Feature Analyst that caused the selection count to be incorrect when selecting a feature immediately after deleting a feature.

• Fixed an issue with DEM export failing to use breaklines in portions.

• Fixed a issue with LP360 crashing while executing a group trace in the Preview window.

• Fixed an issue with opening an MXD project file when LP360 is unchecked in ArcMap.

• Fixed an issue that would allow you to execute by stamp while an execute PCT on Project is running.



Modifications to Existing Features

• Added VC++ redistributable to setups.



LP360 2017.1 Release Notes



New Features

• New Contour Smoothing Algorithm

The new and improved contour smoothing algorithm removes noisy data which causes contour jaggedness by interpolating the Z elevation around contour levels, thereby smoothing the surface and creating much better contours. This display works for both the Map View and 3D view when the user has turned on this setting via the usual Smooth Contours button  on the LP360 Toolbar or Contour Settings in the Export Wizard.

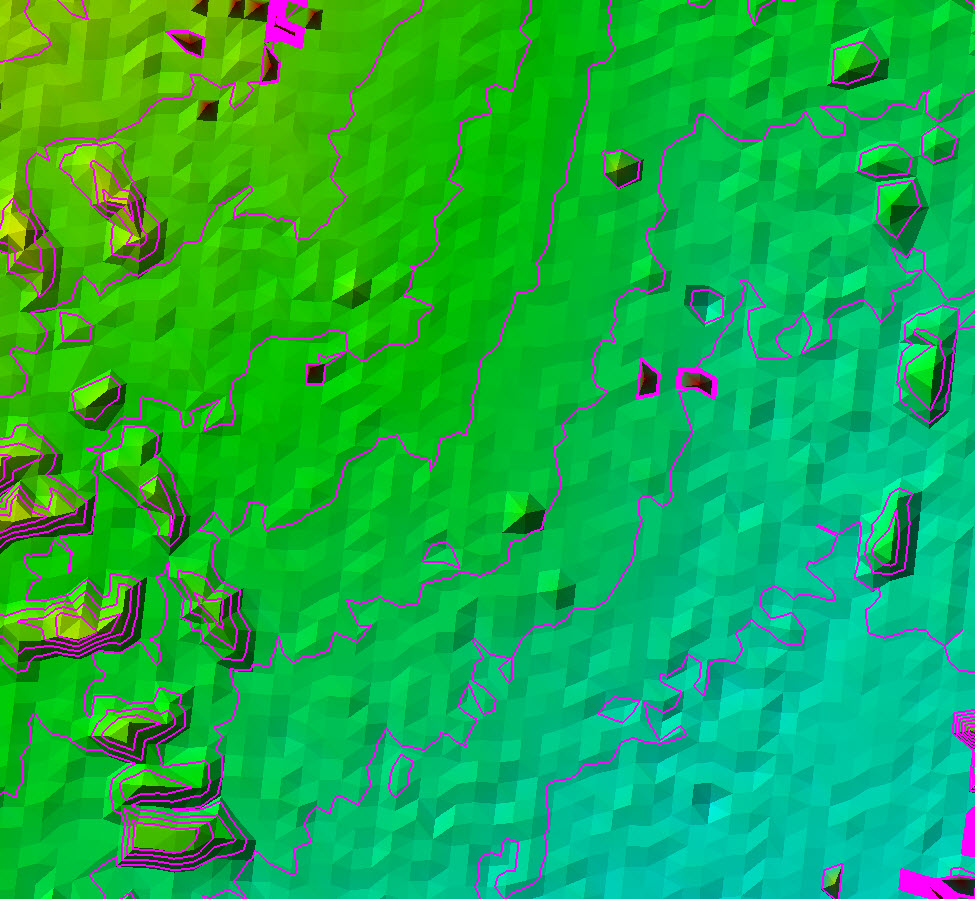

Non-smoothed Contours:

Smooth Contours with less jagged areas as a result of the new smoothing algorithm:

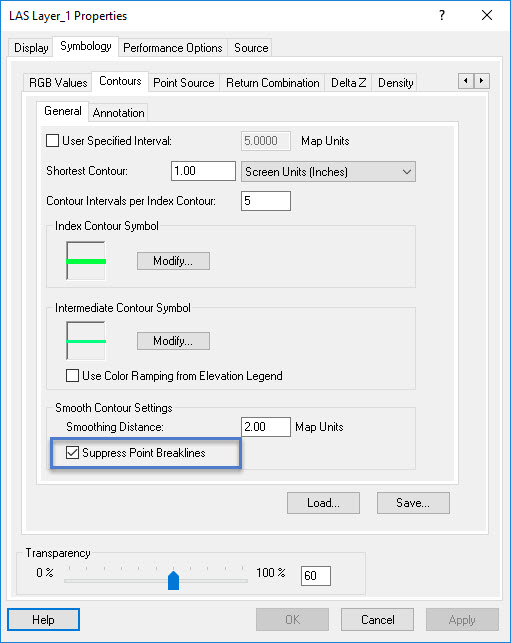

• Suppressing Breakline Points

Users can now suppress point breakline features (ex. mass point, point constraints) when in smooth contour mode. It is located in the Contour Smoothing section of the Contour Properties page of the Layer Properties and Export Wizard dialogs. This feature can be particularly useful when there is very little point data left in an area after cleaning out unwanted points (such as heavily vegetated areas). Contours can become broken due to "rogue" breakline points in the contour smoothing band pulling tin triangles in its direction. That is, any Breakline (constraint) point with a Z within the contour smoothing band (smoothing distance) is "smoothed" out.

Example of broken contours due to sparse TIN data (breakline points in cyan):

After smoothing the breakline points out of the contour smoothing bands (points still shown):



• Revamped and simplified method of adding data to LP360.

Users can now add LAS/Raster/Feature data via one simple button on the LP360 Toolbar.

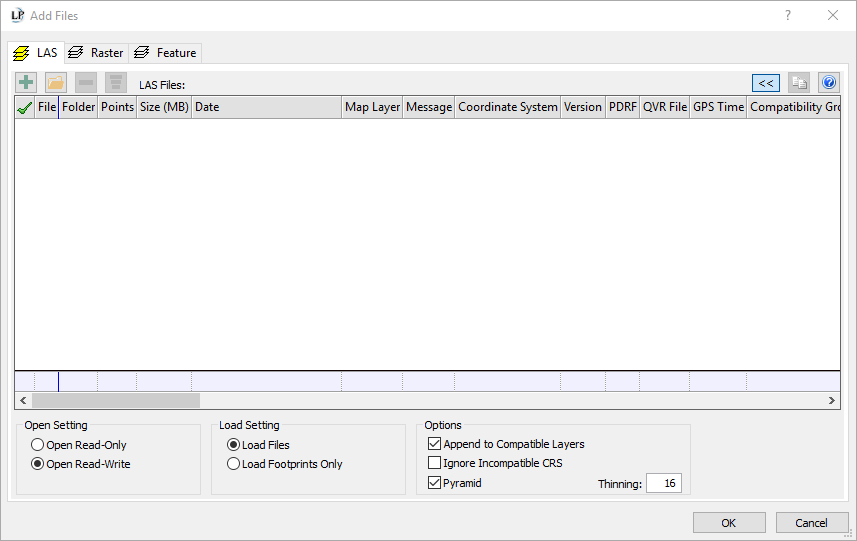

• Clicking this button brings up the Add Files dialog where there is a tabular selection method for adding data. A new Feature tab has been added to allow users add shapefiles from this dialog. In addition, the currently selected tab (data type) is pronounced for easier viewing. Note that an "undefined" Project SRS will be automatically set by the Add Files dialog when only LAS, Raster or Feature layer is added . If all three types are added at the same time, the priority used to set the Project SRS is: 1. LAS 2. Raster 3. Feature.



• Performance Improvements to 3D Zoom

There have been some changes to the 3D Display Properties -> 3D View tab to improve performance to 3D zooming. The two zooming methods are:

1. Allowing the user to set the Zoom Rate to a value between 0.05 and 0.25. This is the traditional LP360 fixed rate zoom. However, the user is now able to change the rate of the zoom which controls the distance the eye point moves per zoom update. The zoom will always move with the same fixed percentage value (5% to 25%) offset the Z axis.

2. Automatic Rate Adjustment. This allows the rate to change more fluidly based on the user's mouse movement data. Small mouse movement means a small zoom rate, and vice versa. It is toggled on and off with a checkbox and does not use the Zoom Slider setting above.

• Schema Editor shortcut

There is a Schema Editor shortcut button included on the Feature Edit Toolbar.



• Reproject/Shift LAS Point Cloud Task

This new Point Cloud Task supports LAS Shift/Reproject operations to a new output file. It supports reproject as well as all of the various options which can be seen in the dialog. These include converting the SRS to one defined by clicking '...' and a Shift/Scale option which allows the user to apply X, Y, Z shifting or scaling to a LAS layer. A new LAS layer with the newly shifted or scaled points will then be added to the TOC upon completion.

• Show Feature Analyst Shortcut

Here, a user may now conveniently launch Attribute Editor to edit attributes, as well as feature vertices, from the LP360 Feature Edit Toolbar using this new shortcut.

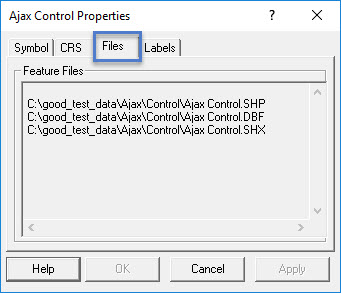

• Files tab for viewing existing feature files

Users can now find the file location of feature files via a new 'Files' tab on the Feature Layer Properties dialog.

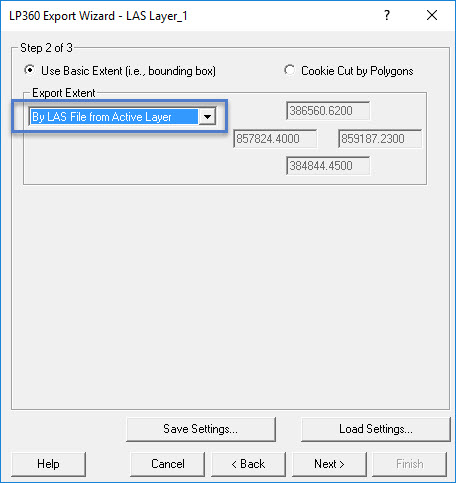

• Option to 'Export by File' in Export Wizard

Users now have the option to 'Export by File' in the Export Wizard. It is found on the Export Extent drop-down menu on page two of the Export Wizard dialog. Due to the new USGS requirements for converting point data to LAS 1.4, this is a very useful and important new feature when exporting point products by file.





• New and Improved GUI Style

As LP360 no longer supports Windows XP, Windows styles have been moved to support Windows Vista and above. This improves GUI appearance and clarity and could lead to performance improvements as well. The new GUI buttons and styles are sharper and less flat than the old style.

• Old Style:



• New Style:





• Graphics Card AutoSelect

Now, high-end graphics cards are able to be automatically selected by LP360 for use on nVidia® and AMD® notebooks with both integrated and discrete graphics cards. The default system setting is usually for this graphics auto-select feature to be enabled, however, if the user has set the application to specifically use an integrated graphics card, then the auto-select capability is not used and the card selection made by the user is honored.



• Define Map Spatial Reference System (SRS) in Project Settings

In project settings, the user can set the Map SRS to be the SRS defined in the Project Spatial Reference System box, or use the SRS of the active LAS layer. This allows the map or WMS backdrop to reproject based on the option chosen.



• View File Footprints and Selections while Zooming/Panning in the Map View

The user now has the ability to still see file footprints and highlighted selections while zooming and panning about the Map View. Before, the footprints and selections disappeared, only to reappear upon finishing zooming and panning actions.



• Special Marker Point Symbols Display in True 3D

Users select point marker types in the Symbol and Labels Property Pages for feature data. To this point, only the default symbol was rendered in proper 3D. Now, special shapes are drawn in proper 3D as well, and they do not "float" above the surface as the user rotates the 3D window. Instead, the symbols stay connected to the surface model in their proper place.



• 'Input Datasets' Group Added to Point Cloud Task Dialogs

Certain point cloud task dialogs (ones that take geometries and LAS layers as input) now allow the user to explicitly define the input geometries (polygon or shapefile) and LAS layers that will be used to execute the tasks.



• Grid Generator Point Cloud Task

A new Point Cloud Task called Grid Generator has been added, allowing the user to impose a cell grid over an input geometry and/or LAS layer based on input parameters and output the result to a shapefile.

• Feature Edit Toolbar
  The Feature Edit Toolbar in LP360 for sUAS now offers a group of tools that allows you to create, delete, move, and edit features at the individual vertex level. The toolbar allows the user to do directly begin a feature edit session in the Map and Profile views. Vertices can be edited in both the map window (for planimetric editing) and in the profile window (for vertical editing). The Feature Edit tools integrate seamlessly with the Point Cloud Task (PCT) Z conflation tools, allowing for automatic assignment and adjustment of the Z value of individual vertices, groups of vertices, or entire features.

  These include a host of new capabilities and commands for: Selecting Feature Layers, Saving Feature Edits, Discarding Feature Edits, Creating Feature Layers, Creating Features from other Feature Geometries, Selecting/Editing Features, Moving Features, Selecting/Editing Vertices, Adding Vertices, Deleting Vertices, Reshaping Geometry, Splitting Geometry, Simplifying Geometry, Respacing Geometry, Reversing Geometry, Showing the Vertex Properties Dialog, Auto-Z Mode Palette, Showing the Feature Edit Options Dialog, Feature Analyst Dialog (View/Edit Attributes), Schema Editor, Undo/Redoing Feature Edits, and Deleting Features. Please see the Feature Edit Toolbar help topic for more information on these tools.

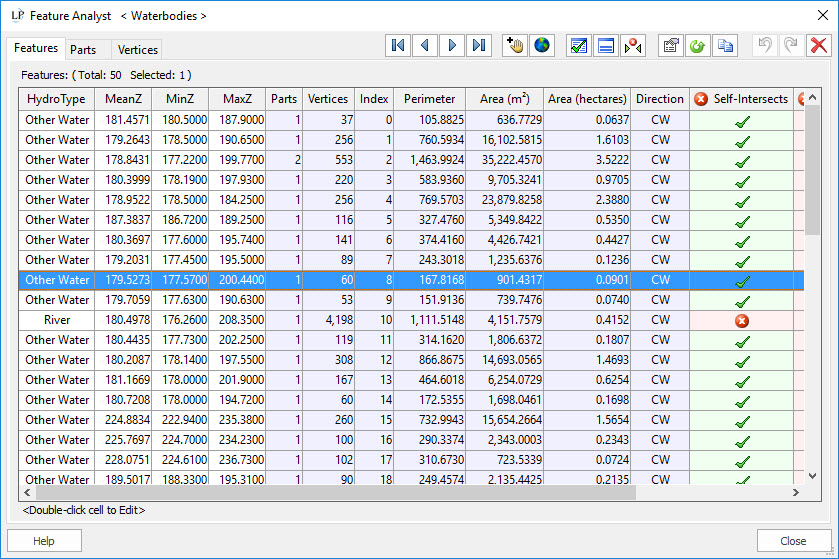

• Feature Analyst Dialog

An exciting and powerful aspect of the new Feature Edit toolbar is Feature Analyst. The Feature Analyst Dialog button allows users to view/edit the attributes of features, parts and tabs on the current layer. Feature Analyst links feature analysis directly to editing features, so that any errors found in the user's data may be immediately corrected with the editing tools. The user simply double-clicks the appropriate feature's cell he wishes to change on the Features, Parts, or Vertices tabs. The user can sort on a particular column by clicking it. If a user selects a row (or rows) on a particular tab, then that row's corresponding features, parts, or vertices (whichever may apply) will be auto-selected in the other tabs and also in the Map View. So, there is total synchronization between the Map View and each of the tabs on the Feature Analyst Dialog. Feature Analyst also synchronizes based on Auto-Z and shift geometry right-click commands accordingly. The user can also create, save, and load analysis tests in Feature Analyst Options and see the Pass/Fail results of those tests in the Feature Analyst main dialog via added columns to each for each type of test.

• Analysis Testing

The user can also create, save, and load analysis tests in Feature Analyst Options and see the Pass/Fail results of those tests in the Feature Analyst main dialog via added columns to each for each type of test.

• Support for Web Mapping (Tile) Services (WMS/WMTS)

New support has been added for WMS/WMTS services (e.g. Image backdrops) in LP360. There are several pre-populated in the 'Add WMS Layer'  Dialog, including the Reckon WMS server. These backdrop layers are reprojected on the fly to the appropriate Spatial Reference System (SRS) as the active LAS layer is switched to a layer containing a different SRS.

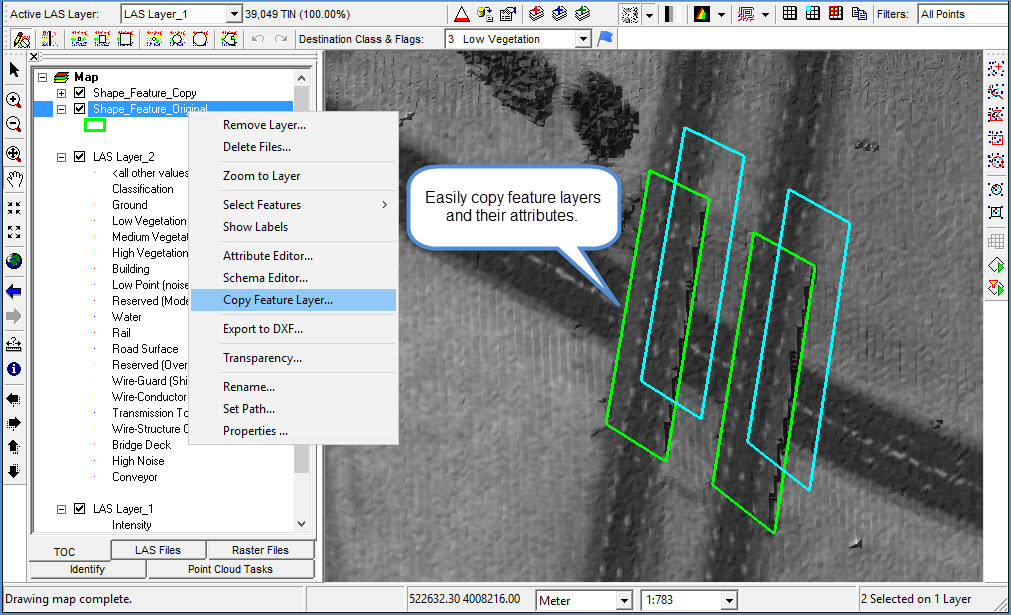

• Copy Feature Layers
  In LP360 for sUAS, you may easily copy features and their attributes using the Copy Feature Layer dialog.



  Options to append to an existing shapefile, copy attributes, and add to the map window are available in the dialog, as well as a text box for naming the copy layer.



• Merge Feature Layers Dialog
  In LP360 for sUAS, you may combine multiple shape layers into one shapefile by using the Merge Feature Layers dialog.



  Options to append to an existing shapefile, copy attributes, and add to the map window are available on this dialog, as well as a text box for naming the merged layer.



• Select Features
  In LP360 for sUAS, one or more features may now be selected for editing within the map view. A feature must be selected before a feature level edit (move, delete, Auto Z, Interactive Z, etc.) can be applied. You can choose among a lasso tool, a drag select tool, or a digitize polygon tool for selecting features. Single clicking the edge of a feature works with all three tools.



• Feature Edit Options Dialog
  In the Feature Edit Options dialog in LP360 for sUAS, you may alter parameters affecting feature symbology, confirmation dialogs, Auto Z settings, and geometry settings.

• Symbology – Configures the symbology for the various Feature Edit display modes.

• Confirm – Enables / disables confirmation dialogs for certain feature edit operations.

• Auto Z – Configures the methods for automatically assigning Z values to the vertices of features.

• Geometry – Configures processing parameters for tools such as Simplify Geometry and Respace Geometry.

• EXP - Setting an Outline Contour allows just a single contour at a specific elevation value to be created. Create Feature from Identified Feature allows the user to Identify a feature and create a feature from that feature on the selected destination layer.

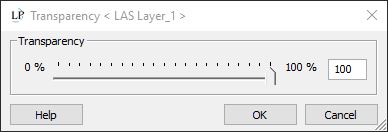

• Transparency
  The Transparency dialog allows you to change the transparency level of a selected layer from between 0% (no transparency) and 100% (invisible) by dragging the slider in the slider control to the left or right to decrease or increase transparency respectively. Alternatively, you can enter an integer value between 0 and 100 into the text box to the right of the slider area to set an exact percentage of transparency.

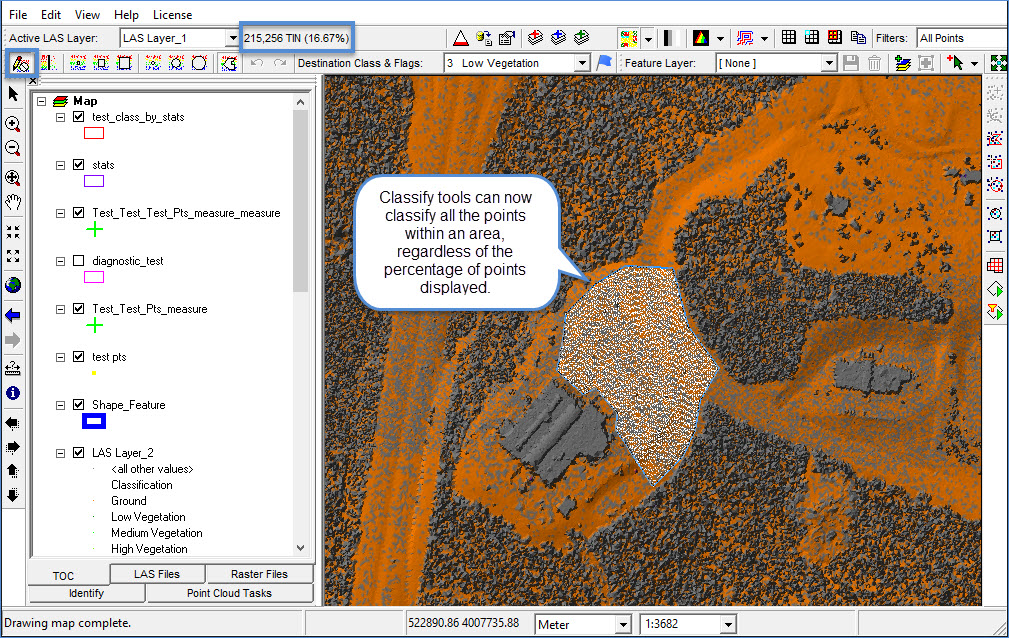

• Classify Non-visible Points
  The Classification Toolbar Edit button has been repurposed to Classify non-visible points when pressed. With LP360 2016.1, the user can choose to classify points using the Classify Non-Visible Points command. This allows users to either classify OR not classify points turned off in the display filter. This also includes the Profile View.

• Point Classification at less than 100% resolution In addition, the 2D Map View now allows classification at less than 100% point resolution. This capability allows the user to edit point classifications without needing to load an entire point cloud.

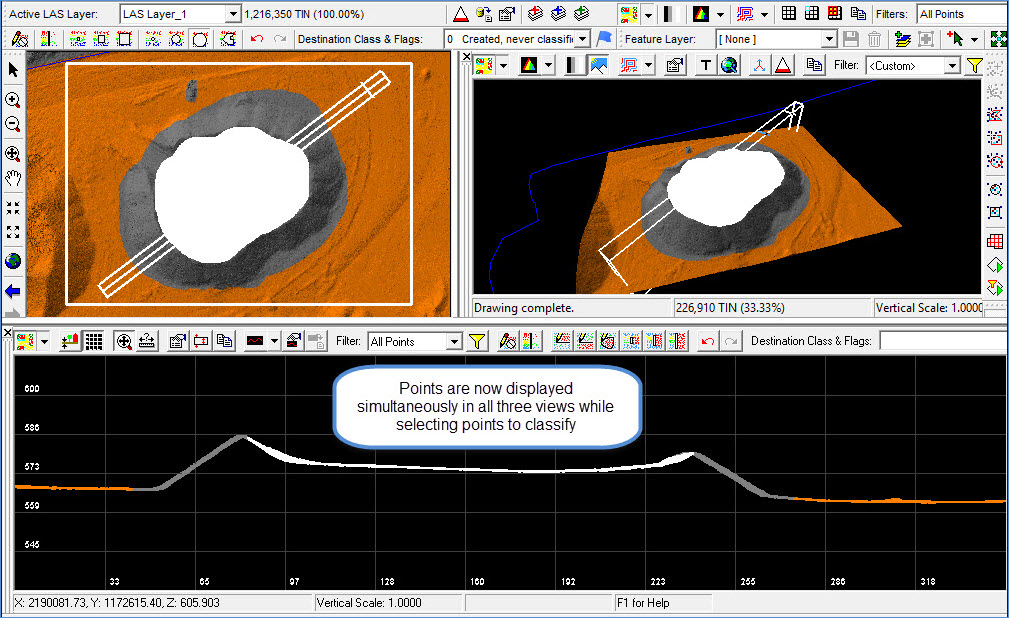

• Classification Selection Displayed Across Views
  Now when classifying points with the classification tools on the Classify toolbar, selected points will display on the 2D map view, 3D, and profile views. Selected points are updated simultaneously on all three views. This allows the user to have a sense of context when they are selecting points in a data set.



• Classify by Statistics Point Cloud Task
  The new Classify by Statistics point cloud task allows for the classification of points based on the statistical analysis of a gridded area of interest. If you wish, you may produce a shapefile of your grid during the process of this point cloud task.

  Statistics supported by this point cloud task at this time include: Low Point, High Point, Median Point, and Random Points.

  This task is primarily useful for thinning points based on these statistics.



• Create Feature Layers
  In LP360 for sUAS, you may now create feature layers, give them a geometry type, and set their coordinate systems using the new Create Feature Layers dialog. Geometry types include 2D points, lines, and polygons as well as 3D points, lines, and polygons. Once created, you may use the new Create Feature command on the Feature Edit toolbar to add features to your new feature layers.

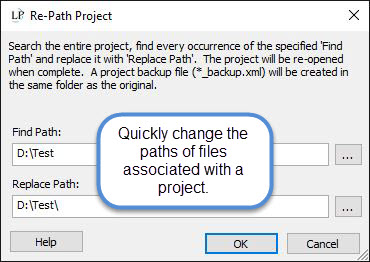

• Re-Path Projects
  The user can set a default data path for your current project by setting a project path. If you wish to change the path of a project you have been working on, you can use the new Re-Path Project dialog to find all instances of the specified path and replace it with a new one. When the program is finished, the project will be re-opened and a project backup file (*_backup.xml) will be created in the same folder as the original path.

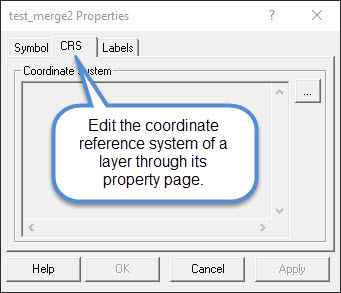

• Coordinate System Property Page
  A user may can check and alter the coordinate reference system (CRS) of a layer through its property page. In the property page's "CRS" tab, you can open the Select Coordinate System dialog, where you can set or change a layer's coordinate system and datum.


• Breakline Enforcement Button Shortcut
  There is a new button shortcut to enforce breaklines in the Map, Profile, and 3D views with one click. In addition, the user can immediately access the Breakline settings dialog by holding down the Ctrl key when clicking this button.

LP360 Main Toolbar:

3D Viewer:

Profile View:



Modifications to Existing Features

• Changed the GUI in LAS Layer Properties (Contours) tab to reflect new Smooth Contour method by changing "Vertex Spacing" to "Smoothing Distance". Note: The Vertex Spacing smoothing method has been removed entirely from LP360 in favor of the new and improved algorithm, but contours are still toggled with the same toolbar buttons as before.

• Added Diagnostic TIN Display option to the Project Settings dialog.

• As a result of the Feature tab being added in the Add Files dialog, the Add Feature Layer toolbar button has been removed from the LP360 Main toolbar.

• Added a QVR (pyramid) File column to the Add Files dialog attribute list showing Yes/No on file exists state.

• Added capability for Import Point Cloud Task(s) to allow the user to select multiple files for import.

• Changed Export Selected Point Cloud Task so that the filename defaults to the PCT Task Name (.xml).

• Changed the Select Features by Feature/Polygon/Lasso tools on the Feature Edit toolbar to enable users to move features about the Map View using these different methods.

• Removed the Move Feature button on the Feature Edit Toolbar due to its functionality being added to the Select Features by Feature/Polygon/Lasso tool.

• Adding a QA/QC Layer now creates an associated .prj file with the coordinate system of the active LAS Layer.

• Users now have the option to bring up the Display Properties dialog with the Breakline Enforcement tab already selected via a "Ctrl+click" on the Use Breakline Enforcement button on the LP360 Main Toolbar.

• Upon right-clicking a Feature Layer in the table of contents and clicking Delete Files, "missing" files are no longer shown (only existing ones).

• Improved performance by turning off the spinning globe animation on the status bar, due to it being an unnecessary use of CPU resources.

• Set the License Level to Advanced for the Stockpile (Toe) Extractor Point Cloud Task.

• Modified 'Auto Compute Z' such that, when Auto Z is turned on with a conflation method selected, anytime a geometry is modified the conflation method is executed on that geometry. For instance, if the geometry is moved, the method recalculates Z values for each vertex.

• Modified 'Auto Compute Z' such that, when Auto Z is turned on with a conflation method selected and a set of vertices are modified, the conflation is executed only on those selected vertices. The unselected vertices remain the same.

• Implemented an interactive visual display of selected classification points. between the Map View, Profile View, and 3D Viewer.

• The "New" option on the Save/Update Stored Filter dialog, accessed through the Live View dialog, allows you to create additional filters based upon existing filters.

• The LAS Layer Properties window now indicates within the header which LAS Layer it is in reference to.

• When exporting point cloud tasks, an "Overwrite File" confirmation had been added.

• The Import Task command has been modified so that the imported point cloud task then becomes the current task.

• The "Select Feature" cursor has been changed to a cross-hair to clarify single-click selection.

• A new version of the OpenGL display has been designed and implemented to improve performance and to utilize the video card’s GPU where available.

• The “Window Center” and “Fit Selected” buttons on the Attribute Editor dialog have been changed from single-click buttons to toggle switches.

• An option has been added to set the Project Coordinate System on the Project Settings dialog.

• The “Name” attribute value is now added from the input layer/file to the output volume shapefile.

• When selecting features through the attribute editor, the 3D window syncs with the Map window.

• If a field exists in a shapefile called “Name” (case insensitive), the program will now default the labels to this field.

• In LP360 for Windows, there is now a show/hide labels option accessed by right clicking a feature layer in the Table of Contents.

• If an input geometry has an ID for a volumetric task, that ID value is then copied to the output volume shapefile.

• The Destination Flags button image on the Classify toolbars now shows a checkmark if any flags are set.

• Fields for “Direction” and “Points” have been added to the Identify dialog.

• An option to “Select Clockwise Features” has been added to the right-click Table of Contents menu.

• A Reverse Geometry command has been added to the right-click Table of Contents menu which works on lines and polygons.

• The Profile Window can now be driven like the 3D Window when enabled in the Attribute Editor.

• The profile right-click menu items “Persist Edit Geometry” and “Auto Commit” now work independently.

• The classify toolbar buttons now remember the destination classes set.

• On the LP360 Export Wizard dialog, the output folder now defaults to the “Project Path” when it is set. Browsing for a folder will also default to this location.

• Now you can press CTRL+R while opening LP360 to reset the application layout.

• There is now “Select Coordinate System” support for the LAS, raster, and feature Layer Properties dialogs.

• You can delete files by right clicking on a heterogeneous group of selected layers. If you multi-select layers in the Table of Contents (TOC) and at least one of those is a feature layer (.shp), then the Delete Files command enables on the right-click.  This command will not delete associated Raster or LAS files.

• In the 3D Window, the feature layer now overlays on top of the TIN display.

• A text box for Sun intensity has been added to the “3D View” tab of the 3D window’s Viewer Properties dialog, allowing you to input a percentage between 0 and 100%.

• New Options have been added to the Volumetric Analysis point cloud task allowing you to select “Cut,” “Fill,” and “Diagnostic” attributes to be outputted.

• The Run by Feature layer will default to the layer that has selected features when possible.

• The setting of profile graticules has been enabled for the viewer license.

• The contour string building algorithm has been improved such that the display performance of contours based on Model Key Points and TINs is much better.

• Multi-Select “Use” toggle capability has been added to the Control Points Report dialog. Also, all combinations have been added to the Quick Set box.

• The ability to set the path of a Feature Layer has been implemented as a right-click Table of Contents command.

• A right-click menu has been added to the Raster Files pane of the Table of Contents in LP360 for Windows, allowing for the selection and removal of files and the setting of paths.

• On the Control Points Report dialog, a “clear” option has been added to the Quick Set options.

• The ability to change license levels in the ArcMap extension has been added.

• The License Administrator runs under a non-administrator login.

• The Resolve Layer Selection dialog has been implemented to be used by commands that require that features be selected on a single layer only.

• An option has been added to enable or disable the logging of “System Events” to the Project Settings dialog.

• Shift and Control key behavior have been implemented for the selection of vertices and geometry.

• Added "Select/Unselect All Vertices" options to the menu when user right-clicks on a selected feature to edit.

• Added a right-click table of contents command for renaming a selected layer in LP360 for Windows.

• Identify is now defaulted to “All Layers” instead of “Top Most Layer”.

• You can still navigate in the map view after using shift override (pressing the Shift key), similar to the profile view.

• Display filters display red text if a filter is in play, applying to all “Viewer Properties” and “Source Points” dialogs.

• You are allowed to navigate in the profile window while using the shift key for any tool.

• Filter buttons now display “<<Source Points>>…” when a point filter is actually set.

• For the categories a user has selected in the Manual Classification Filter, points are displayed that fall into those categories while you are selecting points to classify.

• An option has been added to the profile window, allowing one to move vertices in the XY directions relative to the angle of the profile window.

• Total and selected vertex counts are now added to the status bar when a single feature is selected in LP360 for Windows.

• Breakline Enforcement now displays “<<Breakline Enforcement>>” when enabled and at least one layer is used.

• Surface buffer settings, used to buffer blocks in the export process, are added to the Project Path in Project Settings. Now, you can save buffer settings as settings unique to the currently opened project in both LP360 for Windows files and ArcMap project files.

• The project area has been added to the Project Settings dialog with selectable units open.

• On the Control Points Report dialog, the default selection order for a unique name attribute has been changed to the following order: 1. “Name,” 2. “ID,” and 3. “FID.”

• Increased the performance of LP360 for Windows in drawing shapefiles with thousands of polygons.

• In LP360 for Windows, renaming a feature layer in the Table of Contents automatically renames its associated SHP/DBF/PRJ/SHX/SBN/SBX files to match it.

• Added the Layer Name to the vertex totals for the selected feature(s) shown in the status bar readout.

• Improved 3D marker point symbols display feature to be scaled by the pixel size instead of the map unit size. This results in a more consistent and accurate viewing experience while rotating around the 3D View.

• Removed the Auto Z Modes and "Set Constant Z Value" items from the Feature Edit right-click menu. Auto Z modes are now toggled on the Feature Edit Toolbar and the Constant Z value is set in the Feature Edit Options dialog.

• Added a field "Auto-Z Constant Value" to the Feature Edit Options dialog's Auto-Z tab to replace the previous right-click menu item.

• Modified feature selection so users can select features in the Profile View as well as in the Map View.

• Added the ability to execute the Point Cloud Statistics Extractor for the whole project.

• Improved the performance of the Toe Extractor PCT by drastically reducing the amount of memory required for a single point. This allows the user to potentially extract much larger stockpiles with the available memory.

• Made modifications to the Classify by Features PCT to support all six (Within a Distance of, Completely Within, Within a Distance of Surface, On the Surface, Above Surface, Below Surface) spatial relationship options for 2D and 3D geometries.

• Removed Z-Aware from the Classify by Features PCT. All 2D geometries are now treated as 3D and the spatial relationship will adapt on-the-fly to the type of geometry being processed.

• Removed artificial TIN node points when using breaklines. They looked like LAS points when displayed and are identified as such by the Identify tool, but actually are not which could be confusing when classifying.

• When saving or discarding an edit session, the chosen feature layer still remains selected in the Feature Layer dropdown box on the Feature Edit toolbar.

• Removed from the applicable PCTs the ability to execute on 'Selected Features' only.

• Removed the Attribute Editor from the Table of Contents right-click menu. This is replaced by the editor on the Feature Analyst Dialog.

• Modified the method of computing the area of a project. Instead of taking the area of individual layers, the spatial area of the project is used.

• The right-click TOC and right-click Map menu commands have been modified to include the new Feature Analyst and Schema Editor tools.

• Changed the precision of the profile window measurement tool to 0.001 map units (3 decimal places).

• Made a modification to enable the graticules button on the Profile View for the Viewer License level.

• Made the Select and Identify tools work for shapefiles with mutipart geometries. Now all the separate parts of the geometry are accounted for in the shapefile.

• Improved performance by preventing raster images from being resampled to a size much larger than the device window size.

• Increased point size in the Map and Profile views to improve visibility when digitizing breaklines or elevation points in the Ground Cleanup PCT.

• Added an "Enable M-Values" checkbox on the Create Feature Layer dialog that, when checked, results in the creation of an M-Value supported SHP file.

• Added a "Grow/Shrink Size" to the Toe Extractor PCT, which draws the toe smaller or larger depending on the input value.

• The Downstream Constraint conflation option on the Conflation PCT is now fully supported in LP360 standalone.

• Made the default display background slightly darker for improved visibility when digitizing with the rubber band ad drawing temporary graphics.

• Changed the WKT under the TOC 'Map' Properties right-click menu to be more readable, instead of one long line of text.

• Added a 'Cancel' button to the Save Project dialog when exiting LP360 standalone. This allows the user to keep the application open if desired.

• Implemented in standalone LP360 the ability to quit drawing on a layer in all views by pressing Esc.

• In the Profile Window, changed keyboard shortcut for continuous zoom to Ctrl+D.

• Added a 'Pyramid Raster Files' command to the right-click TOC Raster Files pane.

• The Create Feature Layer dialog will create an associated PRJ file when the user selects a coordinate system.

• An undefined Project SRS will be automatically set by the Add Files dialog when only LAS, Raster, or Feature data is added. If all three times are simultaneously added, the priority of setting the SRS is: LAS, Raster, Feature.

• Improved LDExport to be able to export all export formats/types shown in the GUI after a license check.

• In LP360 for ArcGIS, change the airplane symbol for 3D viewing angle in the Map View to an arrow symbol.

• Made performance improvements in the layer display update mechanism as it was making unnecessary updates when the layer was not physically contained in the map display.

• Made a change so that the existing profile or 3D point cache is cleared and memory is freed when drawing a new 3D or Profile extent box.

Defect Fixes

• Fixed an issue where performance was poor on TIN Display in the 2D Map View due to contours always being built at startup even though they were turned off. (5614)

• Fixed an issue where all points being filtered out in the 2D Map TIN View caused the application to crash. (5621)

• Fixed an issue where failing to explicitly specify the .shp extension when creating a QA/QC shapefile prodcued an invalid file path (COM Exception) when saving the project. (5629)

• Fixed an issue where the User Specified Interval not being selected in Las Layer Properties -> Contours led to TIN contours being smoothed at wrong intervals. Now, the contour interval to smooth the TIN is automatically the same as the interval used to generate contours if the User Specified Interval is unselected. (5635)

• Added the missing 2013 Canadian Geodetic Vertical Datum to the Coordinate System dialog. (5643)

• Fixed an issue where LP360 for ArcMap was crashing without any warning or notice to the user during retrieval of Mass Point Breaklines. (5655)

• Fixed an issue where contour annotation underlines chosen on the Contour Properties page were not being displayed in the Map View. (4076)

• Feature Edit toolbar functions are now disabled unless the required license level is present. (5664)

• Fixed an issue where the classification selection was visible in the 3D window initially, however after that it only shows up if the user rotates/moves the display. Once the display is "still" again, the classification selection no longer shows. (5653)

• Fixed an issue where some remnants of the previous project were still present in view boxes (Map, 3D, and Profile) when changing projects via the File menu. Code was added to check for existing documents and clear the views. (5590)

• Fixed an issue where when browsing to the 'Set Selected Vertices Z To' dialog by right clicking a vertex in the Profile View, the X and Y fields were not active, only Z was active. (5669)

• Fixed an issue where Create Points from Selected Features was not applying Auto Z values to created points (automatically assigning Z values to features based on Auto Z settings). (5662)

• Fixed an issue where there was a crash when bringing in a 3D Polygon shapefile and running the Planar Statistics PCT. 3D boundaries are now converted to 2D in order to compute statistics. (5681)

• Fixed an issue where the Height Filter PCT was crashing when setting class flags on the source point filter. (5690)

• Fixed an issue where changing the active LAS layer to another layer with a known coordinate system did not update the units combo box in the status bar as it should. (5682)

• Fixed an issue in which the "save" and "load" buttons shown on the "DZ" tab under the Symbology tab on the Active LAS Layer Properties dialog were "hidden" in the English version of LP360 for Windows. (2200)

• Fixed an issue in which the cursor would disappear while digitizing using the conflation point cloud task on a TIN with points whose symbology were gray. (2209)

• The default color for the "High Noise" classification has been changed from black to purple to increase visibility. (2222)

• Fixed an issue where the statistics extractor PCT was allowing the user to run it without having a .SHP file extension on the output file and gives a warning. The PCT now appends the file extension. (2720)

• Fixed a bug where LP360 was crashing when loading a LAS file that required a large .qvr (pyramiding) file to be generated. (2983)

• Fixed an issue in which creating new macro tasks would make the properties pane display dysfunction, showing a blank task list in the upper section but displaying the bottom section of whatever the previous active point cloud task was before creating the macro. Selecting one of the buttons in the bottom section would crash the application. (2224)

• Fixed a bug where modifying classes on the Las Layer Properties Classification tab caused a crash when trying to 'Add Values'. It said that a value already exists in the list when it really doesn't. (2727)

• Fixed an issue in which the previously available export types in LP360 for Windows were hardly visible in the Windows version of LP360. (2225)

• Fixed an issue in which toggling between the advanced and standard modes for the Adaptive TIN Ground Filter would leave the "Use Automatic Parameters" option unselected. (2242)

• Fixed an issue in which the LAS files tab on the Table of Contents did not refresh until after a forced refresh. (2735)

• Fixed an issue in which the map view was not zooming the display to the control point profile location when selecting a control point from the control point report. (3089)

• Fixed a bug where running a macro PCT containing tasks requiring a higher license level than what the user possesses gives an error message, but then continued processing. This could potentially result in corrupted data. (3490)

• Fixed an issue in which points would not display in the 3D window in certain cases when displaying by elevation or intensity and drawing points on a TIN. (3832)

• A note has been added within the Attribute Editor dialog to clarify that a double-click within a cell is required to enable edit mode. (3950)

• Fixed an issue in which the legend would disappear from the Table of Contents. (4038)

• Fixed an issue in which the up-conversion of LAS version 1.2 files to version 1.4 would drop the scanner number from the user data. (4067)

• Fixed an issue in which inserting a new task into a copied macro would crash the application. (4079)

• Fixed an issue in which the Import command would only partially import something if it encountered blank spaces. (4328)

• Fixed an issue in which clicking between buttons on the Tool Palette drop-down menu would sometimes lock up LP360. (4411)

• Fixed an issue in which clicking the "Filter" icon on different views, while the Live View remained displayed, was not updating the "Apply" check-box. (4433)

• Fixed an issue in which the 3D view was not clipping vectors to the extents of LAS data and was showing all the vectors that were outside of the clipping box. (4434)

• Fixed an issue in which cursors in the Profile or 3D Windows were virtually invisible on a gray background. (4440)

• Fixed an issue in which both the 32 bit and 64 bit versions of the LDReorder executables were crashing. (2434)

• Fixed a bug where LAS points not open for read/write were being marked for classification when manually classifying points. (3094)

• Fixed an issue where when loading an ArcMap map document (.mxd), there was an incorrect error being thrown when no LP360 license was available. Now the appropriate error is sent. (3099)

• Fixed a bug where loading a bad LAS file did not produce a pyramiding error, but simply skipped creating the .qvr file entirely. Now, an error is given for files that fail to generate pyramids. (3172)

• Fixed an issue in which the Load Export Settings dialog said “Save” instead of “Open” when trying to read in a saved export settings XML file. (3759)

• Fixed an issue in which LDDump.exe would not display Well Known Text (WKT) info and instead showed "no overall EPSG code" for LAS v1.4 files. (4068)

• Fixed an issue with the Height Filter in which the decimal portion of a range value would get erased after restarting LP360 for ArcGIS. (4194)

• Fixed an issue with the Live View Returns tab, in which the Return Number/Number of Returns buttons were "sticking" in the "Hot Tracked" color giving a “pressed" look. (4445)

• Fixed an issue where the application was crashing when trying to run the “Volumetrics” point cloud task with a base shapefile. (4450)

• Fixed an issue in which the application was crashing when one would click on a preview window for a building macro. (4453)

• Fixed an issue in which the Basic Filter would not work if there were more points for the edit manager. (4456)

• Fixed an issue in which the distance reading was not disappearing from the profile window after the Measure tool had been exited. (4464)

• Fixed an issue in which the Modify Profile Depth dialog was cut off in the profile window when running LP360 on Windows 10. (4465)

• Fixed an issue in which the Attribute Editor dialog would display on top of other applications. (4474)

• Fixed an issue in which the Full Extent command would not work when there were empty feature layers. (4477)

• Fixed an issue in which duplicate measurement shapefiles were being created if there were no active project loaded. (4478)

• Fixed an issue in which when a measurement file was removed, an error message would display “Failed to get Use attribute index” instead of displaying that the measurement file was not found. (4479)

• Fixed an issue in which the application was crashing while adding LAS Layers. (4481)

• Fixed an issue in which the summarize conflation method was broken in the Conflation point cloud task using tool geometry. (4485)

• Fixed an error in which creating features was causing duplicate IDs to be generated on SHP file features. (4488)

• Fixed an issue in which volumetric analysis would fail if the “Name” attribute was not present in the input shape layer. (4490)

• Fixed an issue in which the application would crash if the Attribute Editor was closed by clicking the top right "X" during editing. (4494)

• Fixed an issue in which the Control Point Report would become corrupted due to the Control Points Report dialog exiting measure mode incorrectly. (4496)

• Fixed an issue in which polygon labels were sometimes either not drawing or they were drawing in the wrong place for feature layers. (4497)

• Fixed an issue in which users would occasionally get an Error Initializing dialog when trying to display the Live View dialog. (4502)

• Fixed an issue in which dynamic rotation and zoom in the 3D and profile windows were very slow when large SHP files were loaded in LP360 for Windows. (4503)

• Fixed an issue in which LDDump.exe was not displaying Extended Variable Length Records (EVLR) data. (4508)

• Fixed an issue in which the Export wizard allowed the writing of LAS 1.4 PDRF more than or equal to 6 with blank well-known text (WKT). (4509)

• Fixed an issue in which CRS WKT strings in LAS files output by GeoCue were not recognized by the LP360 Select Coordinate System dialog. (4514)

• Fixed an issue in which the Grid Size Eye Dropper on the Toe Extractor would display an error when the sample area was drawn in the counterclockwise direction. (4520)

• Fixed an issue in which exporting contours would fail if the LAS files were in a user defined coordinate system. (4521)

• Fixed a bug on the Export command where the "Finish" button would not enable when the "Cookie Cut" output files option was selected. (4523)

• Fixed an issue in which the “pure drape” option was broken in the Conflation point cloud task. (4524)

• Fixed an issue in which the Conflation point cloud task would not let you classify points within closed lines. (4525)

• Fixed an issue in which loading export settings, cancelling the Export Wizard, and then re-opening the Export Wizard would cause the application to crash. (4527)

• Fixed an issue with the Project Settings dialog, in which the Browse for Folder window would not start at the current folder. (4528)

• Fixed an issue in which the Points Statistics filter was returning “garbage” for standard deviations in areas with only 1 point. (4529)

• Fixed an issue in which there were errors writing a coordinate reference system to large LAS files. (4532)

• Fixed an issue in which LP360 was not reading the correct EPSG codes out of GeoTiff Headers. (4536)

• Fixed an issue in which the Ground Cleaner seed points did not snap to LAS points by default. (4539)

• Fixed an issue in which the Identify command would report negative areas for counterclockwise polygons. (4541)

• The destination classes are now remembered for each classify tool when selecting the class from the drop down menu. (4543)

• Fixed an issue in which thinning by stats was not classifying the pyramid points. (4546)

• Fixed an issue in which thinning by stats was very slow in writing shape files. (4547)

• Fixed an issue with the Control Points Report dialog, where sorting by any column would break measured points afterwards. (4548)

• Fixed an issue in which the Control Points Report dialog would corrupt measurements when duplicate control point names existed. (4550)

• Fixed an issue in which several error messages would occur when displaying the Export dialog if LAS 1.4 files were in the active layer. (4551)

• Fixed an issue with the Jump Map commands displaying the wrong tool tips. (4552)

• Fixed an issue in which drawing a new profile line while auto commit classify was enabled in the profile view would crash LP360. (4553)

• Fixed an issue in which the Low/Isolated Point Filter “Isolated Class” setting would always remember the “Rail” class. (4559)

•  Fixed an issue in which the Export dialog would not write the EPSG codes of selected coordinate reference systems when possible and selected. (4563)

• Fixed an issue in which the Control Points Report dialog was crashing while measuring points in LP360 for Windows. (4567)

• Fixed an issue on the LP360 Export Wizard dialog in which the “Add to Map” option would not work for inverse distance weighted (IDW) surfaces. (4570)

• Fixed an issue in which the application would crash if the layer was turned off and one was trying to do manual classification. (4571)

• Fixed an issue with the Import ASCII ‘XYZ+’ Point Files Wizard dialog in which the class combo was displaying when selecting the LAS version incorrectly. (4572)

• Fixed an issue in which the “Generate shape file” option on the Point Cloud Task dialog had synchronization issues. (4573)

• Fixed an issue in which the Classify by Statistics point cloud task would sometimes skip a cell and not classify all of the points. (4591)

• Fixed an issue in which the default preview window size was too narrow for tools. (4611)

• Fixed issues with the execution of the Ground Cleanup Filter. (4614)

• Fixed an issue in which the Classify by Statistics point cloud task would run very slowly if “Run by Polygon” was selected and the polygon was very complex. (4619)

• Fixed an issue in which the retaining wall method was not working in the Conflation point cloud task. (4620)

• Fixed an issue in which exiting ArcMap with the preview window displaying would prevent the preview window from displaying in the future. (4621)

• Fixed an issue with the Add Files dialog, which would crash when adding large (1500+) numbers of LAS files. (4622)

• Fixed an issue in which the application was crashing while updating a status message. (4635)

• Fixed an issue in which LP360 was exporting LAS files with the .las extension twice. (4640)

• Fixed an issue in which the coordinate reference system for LAS layers were not initialized with the first LAS file added to a layer. (4672)

• Fixed an issue in which the project coordinate reference system was not initialized with the coordinate reference system of the first LAS file added to the project. (4673)

• Fixed an issue in which the application was crashing while trying to get the context menu. (4674)

• Fixed an issue in which selection did not work on feature layers that had zero vertex shapes. (4675)

• Fixed an issue in which breakline enforcement was always set once you had it set on the Volumetric Analysis task. (4683)

• Fixed an issue in which Summarize Z with constant Z was not working with shape layers or files. (4700)

• Fixed an issue in which the unit combo was not initializing correctly with 1.4 LAS well-known text files. (4726)

• Fixed an issue in which the application was crashing while trying to update the LAS files window. (4727)

• Fixed an issue in which the application was crashing during contour generation for TIN surface. (4739)

• Fixed an issue in which multi patch shapefiles did not display in LP360. (4744)

• Fixed an issue in which the constant Z option was failing in interactive cases. (4750)

• Fixed an issue in which linear units were not set correctly in output .prj files if the LAS file had linear units in it apart from overall EPSG codes. (4757)

• Fixed an issue with the Attribute Editor dialog in which it would not sync selected records with new the “Select Feature TOC” commands. (4765)

• Fixed an issue in which the application would crash while trying to show labels. Crash reports would show that annotation text was null. (4766)

• Fixed an issue in which the Draw Profile command would stop responding if interrupted by another digitizing command. (4769)

• Fixed an issue in which LP360 was crashing when trying to run a project. (4770)

• Fixed an issue in which the profile was not centering correctly when selecting the first or last two vertices within a closed polyline. (4912)

• Fixed an issue in which raster images were misaligned with map data while zoomed in. (4921)

• Fixed an issue in which clipping plane lines were not showing up in the profile window when selecting the clipping plane button. (4922)

• Fixed an issue in which the zoom image would get “squeezed” on the 2D window. (4923)

• Fixed an issue in which the Japanese Add Files dialog would crash when adding LAS files into LP360. (4937)

• Fixed an issue in which the TIN code would crash with the Longview North data set. (4939)

• Fixed an issue in which the Add Class Values dialog was chopped off on the right side of the dialog. (4940)

• Fixed an issue in which LP360 was crashing when conflating in interactive mode. (4941)

• Fixed an issue which the application was crashing after pyramiding LAS files in standalone LP360 and the ArcMap extension. (4953)

• Fixed an issue in which the background color change was causing a color shift on the backing store image during pan and dynamic zoom. (4962)

• Fixed an issue in which raster images would sometimes look coarse when zoomed in. (4959)

• Fixed an issue in which the Web Map Service (WMS) was not displaying. (4989)

• Fixed an issue in which point cloud tasks that didn’t rely on point density would still spend time computing this information before starting to run, becoming time consuming. (4408)

• Fixed an issue in which the point dropper from the toe extractor property page was not using the toe extractor’s current point filter. (5024)

• Fixed an issue in which some Web Map Service Layers appeared to be upside down with inverted text. (5027)

• Fixed an issue in which the preview window was not displaying results from the building extraction point cloud task after a macro was run. (5049)

• Fixed an issue in which LP360 would fail to open some 1.4 LAS files with very large Extended Variable Length Records (EVLR). (5065)

• Fixed an issue in which attempting to check for updates from within the License Administrator would give an error saying “Unable to check for updates. Currently not licensed (24271)”, even if the software was licensed and able to run. (4799)

• Fixed an issue in which the ArcMap Point Cloud Task Preview dialog was not setting the map extents in its 3D window control so the display was blank. (5069)

• Fixed an issue in which the Point Cloud Statistics Extractor was failing while creating temporary filenames for appending. (5080)

• Fixed an issue in which the application was crashing when it was trying to set icons on the Live View. (5082)

• Fixed an issue in which there was a performance slowdown on Model Key Points with Dynamic Contours. (4969)

• Fixed an issue in which changing the “Quick Set” option on the Control Point dialog would cause multiple map updates for each point in the list. (5088)

• Fixed an issue with the Control Points dialog, where the windows didn’t drive when the “Use” check box was toggled. (5089)

• Fixed an issue in which running a ground classification routine in LP360 for Windows (64-bit) was resulting in an error message that said that there wasn’t enough memory resources available and to try using the 64-bit version. (1296)

• Fixed an issue with the Control Points Report dialog in which the arrow keys would not work and measurements would drive to the wrong point. (5103)

• Fixed an issue in which the “Set Paths” right-click table of contents command for LAS files did not work in LP360 for Windows. (5125)

• Fixed an issue in which when attempting to re-project LIDAR files, the files were not being written out. (4955)

• Fixed an issue in which the application would not add LAS Layers to the table of contents. (5140)

• Fixed an issue in which the application was crashing due to LAS files with zero points. (5197)

• Fixed an issue in which an exported hole on an export raster FLT file with Breaklines on a large data set was not correct. (5224)

• Fixed an issue in which you were allowed to digitize line polygon geometry for an unsaved point cloud task. (5257)

• Fixed an issue in which volumes were incorrectly computed for LAS files that did not contain CRS info. (5266)

• Fixed an issue in which the point dropper and draw window tools were not working. (5270)

• For classification within the profile window, the second mouse click to commit “Above/Below the line selection” has been removed. (5295)

• Fixed an issue in which there were funny characters in the license request form for e-mail IDs. (5299)

• Fixed an issue in which LP360 would fail to open Pix4D generated LAS files. (5303)

• Fixed an issue in which the profile line drape by point ID was not using the correct colors. (5304)

• Fixed an issue in which creating a DEM that was breakline enforced would result in "no data" values within the breakline. (1976)

• Fixed an issue in which one would lose the ability to scroll in the profile view and instead the map window would scroll. (3861)

• Fixed an issue in LP360 for ArcMap, in which the layer coordinate reference system would remain “Unknown” after importing a LAS file containing well known text coordinate reference system information. (5357)

• Fixed an issue in which the Add Files dialog would display “unknown coordinate system” for LAS 1.4 PDRF6 with a coordinate reference system in well-known text. (3038)

• Fixed an issue in which when using the ArcToolbox tool to define LAS file projection with a LAS v1.4 file, the well-known text would not be inserted into the header. (5292)

• Fixed an issue in which EPSG codes were not written correctly when exporting LAS v1.4 files. (4066)

• Fixed an issue in which scrolling in the profile window was very slow when the active control point layer contains a large number of points. (5405)

• Fixed an issue in which an incorrect value was assigned for GeoTiff key 2050. (5411)

• Fixed an issue in which NULL was written for the linear units GeoTIFF tag when exporting LAS files. (5412)

• Fixed an issue in which LP360 WKT was not version 1.4 compliant. (5426)

• Fixed an issue in which the application was crashing after running volumetric tasks and adding layers to the map. (5446)

• Fixed an issue in which the Add Files dialog was not displaying the vertical units tag. (5452)

• Fixed an issue in which exporting ASCII XYZ data from the Export Wizard while using class 11 would cause the progress bar to stall and nothing would happen. (1756)

• Fixed an issue where the 3D View in ArcMap was not displaying the fusion of LAS points on top of TIN correctly in either shader or wireframe modes. (5511)

• Fixed issue where context-sensitive help was not displaying correctly for most tools on the 3D Window toolbar. (5514)

• Fixed issue where incorrect context-sensitive help IDs were being requested for some tools on the Profile toolbar. (5518)

• Fixed an issue in which the Identify command was crashing on very large contour shape files. (5475)

• Removed the 100% point resolution restriction on breakline enforcement in the 2D and 3D displays. (5522)

• Fixed an issue where LP360 crashed during a point cloud task due to a bug in point density calculation code. (5553)

• Fixed an issue where zooming in the 3D Window was very slow due to a very small zoom scale factor in the 3D zoom code. (5557)

• Fixed six buttons on the Viewer Integration toolbar which were not mapped to context-sensitive help. (5560)

• Fixed an issue where context-sensitive help IDs did not exist in LP360 for 'Add WMS Layer', 'Copy to Clipboard', the entire Control Points toolbar, and the entire Display and Navigation toolbar. (5571)

• Fixed an issue where Visual Basic Command line tools LP360ExpLAS.exe, LP360PntDen.exe and LP360Stats.exe were not honoring wild cards (asterisks to save time in manually typing filepath) in the folder path. (5613)

• Fixed issue where the Resolve Selection dialog was changing the selection on each layer as the user moved their cursor over the layer in the dialog. When the dialog was dismissed positively, the selection on the layer was unrestored. Now the selection is restored after dismissing the dialog. (5687)

• Fixed an issue where file boundaries were flashing while panning in the Map View with certain notebook computer graphics cards. (5694)

• Fixed a bug where the Auto-select by CRS Name feature in the Select Coordinate System Dialog was behaving as case-sensitive. (5696)

• Fixed an issue where polygon text labels were showing up in the wrong place when zooming in 2D Map View and were missing entirely from 3D View. (5704)

• Fixed a problem where the Classify by Feature and Conflation PCTs, when using 3D polygon features, were treating the 3D polygon as a 3D linestring and causing a crash. Added 3D polygon support for PCTs and also fixed a problem where the progress bar was not updating when running them. (5722)

• Fixed issue where LP360 LDDump.exe improperly displayed the Reserved field of the Variable Length Record (VLR) and Extended VLR as '??' when it should be zero. (5731)

• Fixed an issue where Point Source IDs greater than 32765 were causing points not to display when toggling to 'Display by Point Source ID' and occasionally crashed the application. (5726)

• Fixed an issue where contours in the Map View were disappearing when the Map Interval was less than one. (5759)

• Fixed an issue where simply toggling the Read/Write status of a file forced a refresh of the display, which was unnecessary and could affect performance. (4170)

• Removed the possibility of outputting self-intersecting polygons from the toe extractor due to an increased potential for errors. (5757)

• Fixed an issue in Identify point selection where the application was crashing when attempting to identify points using a large selection area. (5809)

• Fixed an issue where the Ground Filter PCT was hanging and causing the application to crash. (5812)

• Fixed an issue where there was a crash during a TIN display update on a dataset due to a memory allocation issue. (5796)

• Fixed a problem where LP360 for ArcGIS was crashing when pyramiding LAS files through the Add Files dialog. (5814)

• Improved performance on the Feature Edit Dialog Attributes tab, where selecting thousands of rows in the list results in a long wait before those features are auto-selected in the Map View. (5839)

• Fixed a performance issue where exporting a TIN surface composed of point shapefiles with the default Surface Buffer setting of 100 was very slow. (5838)

• Fixed a performance issue where, with very large shapefiles, loading the Feature Analyst Dialog was very slow. (5837)

• Fixed a bug where exporting contours from the Export LIDAR Data tool was honoring the suppress points flag on normal contours as well as smooth contours. The flag should only be honored on smooth contours. (5834)

• Fixed a bug where the Re-path project command sometimes crashed LP360 when a project was reloaded after re-pathing it. (5849)

• Fixed a bug where the Classify By Feature .xml file output, when saving the task, was not compatible with older versions of LP360, causing a crash when attempting to open it with an older version. (5883)

• Fixed a performance issue where the Create Features from Selected Features command was very slow when checking for duplicates among a large number of points and also when starting with thousands of selected features. (5885)

• Fixed a crash caused by a memory allocation issue in 32-bit LP360 standalone with a large data set by resizing the raster cache. (5864)

• Fixed a bug in the Volumetric Analysis PCT where it was yielding a zero volume result in certain cases, such as constructing a TIN from very thin surfaces. (5895)

• Fixed a bug in the Japanese version of LP360 where adding raster data was causing the application to crash. (5902)

• Fixed an image scale computation bug affecting performance when zooming in extremely close on a raster image. (5917)

• Fixed a bug in density calculation for exported LAS data that was causing holes to appear and affecting performance. (5933)

• Fixed a bug in the Classify by Feature PCT, where if just one shape feature fell outside the LAS data extent, the PCT failed to process all of the other shape features as well. (5950)

• Fixed a bug in GIS fusion for the 3D and Profile windows where there was improper coloring of points. (5889)

• Fixed an issue where fitting the view with an WMS layer caused the view to zoom to the maximum WMS layer extents, which was usually the entire Earth extent. The result was oftentimes a blank display with no LAS data visible. Now, fitting with WMS layers no longer zooms to such a large extent. (5956)

• Fixed an issue where a crash could occur if there are multiple WMS layers actively loaded because of a GDAL threading problem. (5964)

• Fixed an issue in the Rail Extractor PCT where using the 'Extend Until Lost' option caused the extraction to sometimes stop unexpectedly. (5980)

• Fixed a bug which was causing a crash if there were no points and user chose to TIN the display at 100% resolution. (5981)

• Fixed a bug where large numbers of Variable Length Records (VLRs) and Extended VLRs in LAS files were creating huge tooltip windows and causing the Add LAS Files dialog to freeze up. (5993)

• Fixed a bug where the Add Files dialog was incorrectly overwriting the user-selected Layer Spatial Reference System (SRS). (6013)

• Fixed a bug where selecting a 2D polygon feature in the Map View with the Feature Analyst dialog displayed crashed LP360. (6016)

• Fixed a bug where LP360 gave a COM exception when adding LAS files when no license was available due to the user having multiple sessions of LP360 open while having only a single license. (4188)

• Fixed a bug where adding a LAS file with no Spatial Reference System information crashes LP360. (6024)

• Fixed a bug in the Ground Clean Up PCT where the PCT was allowed to execute, but failed in mid-execution because of a lack of proper licensing with no way to exit. (4686)

• Fixed a bug where the 3D TIN was not displaying in 'Display Points on the TIN Surface' mode when smooth contours were turned off. (6036)

• Fixed a bug where an unnecessary dialog message was appearing when starting up an existing project with an WMS Layer. (6043)

• Fixed a bug where LP360 was crashing when displaying the Source tab on the Layer Properties dialog for files with no coordinate system. (6047)

• Fixed a bug where a layer would "forget" and not maintain the coordinate system that was set on it. (6048)

• Fixed a bug in the PCT Conflation tools where the symbology shown in the TOC was wrong for the graphic type being digitized and could not be corrected. (6060)

• Fixed an issue where the Add Files dialog was not warning the user if adding duplicate files to the same layer. Now any duplicate files are displayed as such on the layer. (4613)

• Fixed a bug where the Control Points symbol was displaying incorrectly in the Profile view. (6054)

• Fixed a bug in the Jump command where the 3D View extents were not being drawn when the 3D View and map were moved together. (6057)

• Fixed an issue where the 64-bit license server could not be uninstalled due to not having a 64-bit uninstall script. (6073)

• Fixed a bug where the 3D Window was not displaying contour annotations correctly. (139)

• Fixed an issue where the Profile View keyboard shortcuts were not working correctly in standalone L360. (3827)

• Fixed a bug where the ECW (Enhanced Compression Wavelet) image format was not being supported in LP360. (4321)

• Fixed a bug where an exception was being thrown upon adding a LAS layer the first time, but then being loaded visually in the map view when trying it a second time. However, it does not show up in the LAS Files tab. (5276 and 6066)

• Fixed a bug where the Volumetric PCT was crashing if the layer name was changed. Now, there is no crash and an error message is displayed. (6105)

• Fixed a bug in the 2D Map View where some layers were being updated on a window resize while others were not. (6145)

• Fixed a bug on the ASCII XYZ Import dialog Field Mapping page, where columns were allowing two radio buttons to be selected simultaneously. (6157)

• Fixed a bug where adding a WMS layer when its Projection WKT did not contain an EPSG code was crashing LP360. (6160)

• Fixed a bug causing a crash when removing an inactive layer from the LAS tab, then deleting the same layer from the TOC tab. (6177)

• Fixed a display issue where certain dialogs and screens were not sized correctly when having the monitor magnification set to 125%. (4063)

• Fixed a bug where contour labels were not displaying in LP360 for ArcMap. (6197)

• Fixed a bug where the vertical reference system, even if defined, was not being displayed in the Add Files dialog. (3276)

• Fixed a bug where the scrollbar on some PCTs would not allow the user to scroll to the bottom-most items. (6220)

• Fixed a display issue in LP360 for ArcGIS where the 2D Map View was cancelling manual classification prematurely and causing the 3D View not to update and show the entire swath of classified points. (6221)

• Fixed a bug on the Add Files dialog where the Copy to Clipboard command was producing jumbled columns when pasting to Excel. (6236)

• Fixed an issue where LP360 was crashing while computing the length of a line string containing only one point. (6242)

• Fixed a bug where starting the Schema Editor with pending feature edits would prevent Schema Editor from modifying the schema with no explanation why. (6240)

• Fixed a bug where opening a LP360 project XML file with an existing project open caused an immediate crash after dismissing the "Invalid Project" error dialog. (6255)
