LP360 2013.2 Service Pack 1 (SP1) Release Notes
Modifications of Existing Features
- Performance improvements to for Export command
The performance of exporting the gridded outputs (through the Export command) has been improved. Depending upon the dataset size, the performance improvement can be 2 to 5 times the performance of the pre-SP edition. - This includes performance of Volumetric Analysis.
- Volumetric Analysis
- Added two new macros for Volumetric Analysis of pits and stockpiles. One macro makes “click and draw” Volumetric Analysis possible without requiring any user pre-configuration.The second macro supports input of volume boundaries via a 2D shapefile that you specify.
- Conflation task outputs of volumetric macros can now be added to the Table of Contents in the map.
- Added context help support to predefined Volumetric macros.
- Default Z Value Compute Method on Conflate Point Cloud Task
Changed the default Z value compute method on Conflate Point Cloud Task from “Mean Z” to “Closest Z”. -
- Context Help for Macros
Added the ability for the Point Cloud Task Table of Contents tab Help button to display macro specific help when available.
Defect Fixes
- Support for Windows 7 Aero Themes and Windows 8.1 Themes.
- LP360 for Windows now displays correctly when using Windows 7 Aero Themes as well as Windows 8/8.1.
- Fixed a problem in which a COM exception was displayed when opening ArcMap with Basic License Level.
- Fixed a problem in which running Point Cloud Statistics Extractors using a Basic License Level crashed ArcMap.
- Fixed a problem in which if EPSG code did not exist for a LAS file but other coordinate system information was present in the LAS file, then LAS file was placed at wrong location in ArcMap.
- Fixed a problem in which running Volumetrics in LP360 for Windows resulted in empty outputs if the the defining polygon was counter clockwise.
- Fixed a problem in which Volumetrics could terminate prior to processing all features in a 3D polygon shapefile.
- Fixed a crash when running Volumetrics on Complex Shapes.
- Fixed a problem in which the option to not to create Pyramid files still created the Pyramid files.
- Fixed a crash when selecting ‘None’ for the Conflation Method and clicking Apply on the Conflation Point Cloud Task would crash LP360.
- Fixed a crash where zooming in or out on the image layer would crash LP360 for Windows application.
- Fixed a problem in which the Retaining Wall method in the Conflation Point Cloud Task would not work.
- Fixed a problem in which the Elevation Difference did not work.
- Fixed a problem which if Volumetric cut-fill output directory did not exist, the cut-fill image was not created.
- Fixed a crash in which the input shapefile specified for the Conflation Point Cloud Task did not exist.
- Fixed a crash in IO Manager that when toggling input type from Tool Geometry to File would crash LP360.
- Fixed a crash in LP360 for Windows in which clicking Classify By Feature button would crash the application.
- Fixed a problem in which the Export Wizard Extent page would not display LAS layers in the combo box when the Layer Extent option was selected.
LP360 2013.2 Release Notes
New Features

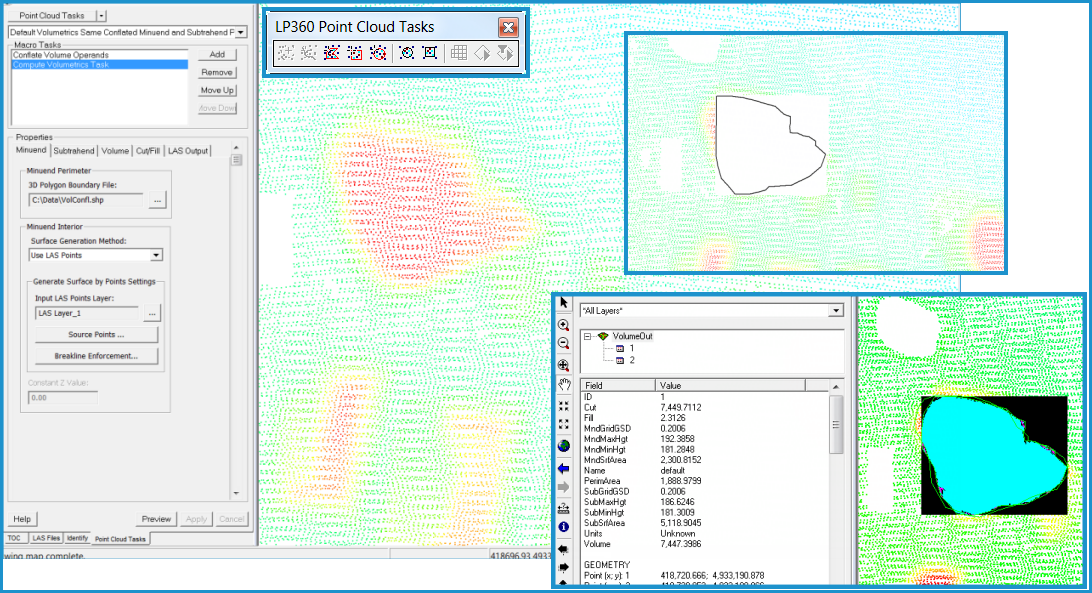

- Volumetrics Analysis
LP360’s new Volumetrics Analysis capability allows you to perform volumetric computations using combinations of 3D polygons and point clouds. Two polygons of the same area over an amount of time are compared, and the positive and negative values of the polygons are computed. You can choose the resulting output to be attributes in a data table, a Cut/Fill TIFF image, and/or an output LAS file. Predefined Volumetrics macros are also available for convenience. These macros include many of the parameters already set for a specific task, so that setup time is minimal.

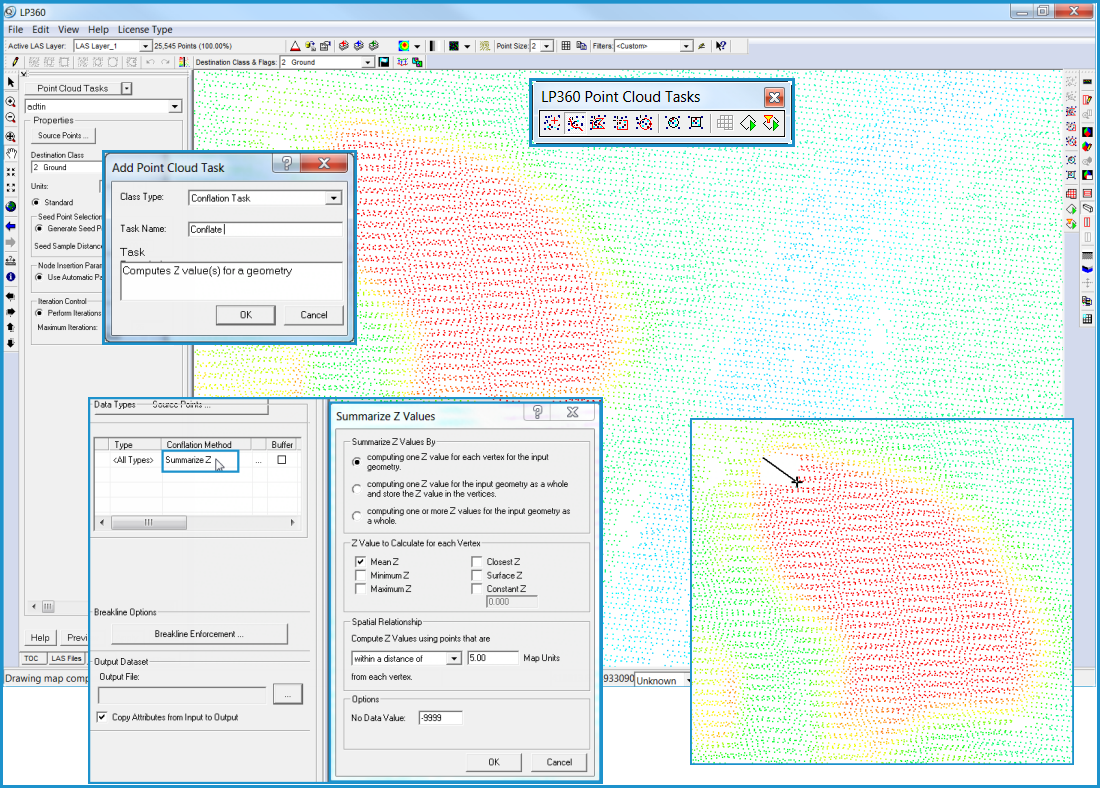

- Z Conflation
The new Z Conflation in Point Cloud Tasks allows you to compute a Z value for vector data from point clouds. Z Conflation already existed in LP360 prior to this release, but it is now available as a PCT. The implementation of Z Conflation as a PCT, however, now allows it to be chained as a macro.

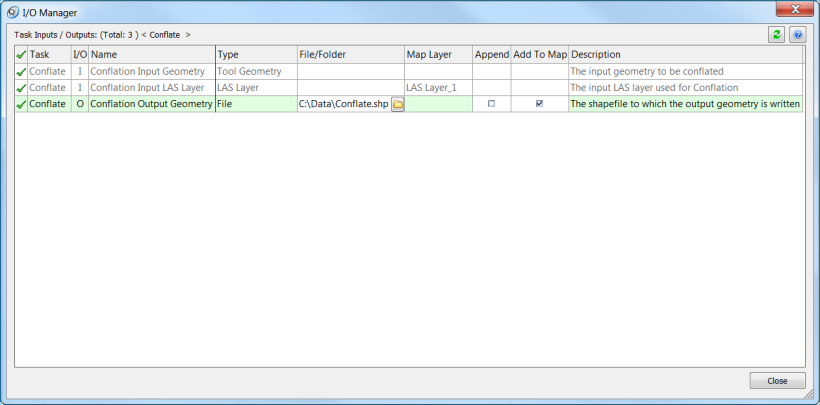

- I/O Manager
The new I/O Manager is the new efficient tool that you use to specify input and output files, in addition to other settings related to the inputs and outputs. This intuitive tool opens to the input/output setting you need to specify according to where you are in your workflow, while listing others you have already specified for the task you are doing. Currently, this tool is used with the Volumetrics Analysis, Z Conflation, and extractor PCTs, but the next release will include expanded use of it.
- New Point Cloud Task Drawing Tools
The new point cloud task drawing tools provide the ability to directly digitize points, lines, and polygons from the PCT toolbar. The Execute by Point and Execute by Line tools were added as a part of the new Z Conflation PCT functionality. These tools are currently only used in Z Conflation PCTs.
- New Point Cloud Task Rename and Copy Selected Commands
The new Rename Selected Task command allows you to change the name of the active point cloud task. The Copy Selected Task command allows you to copy the task selected in the task list.
- Japanese and Spanish versions of LP360
As a part of the ongoing work to internationalize LP360, Japanese and Spanish versions of LP360 are now available.

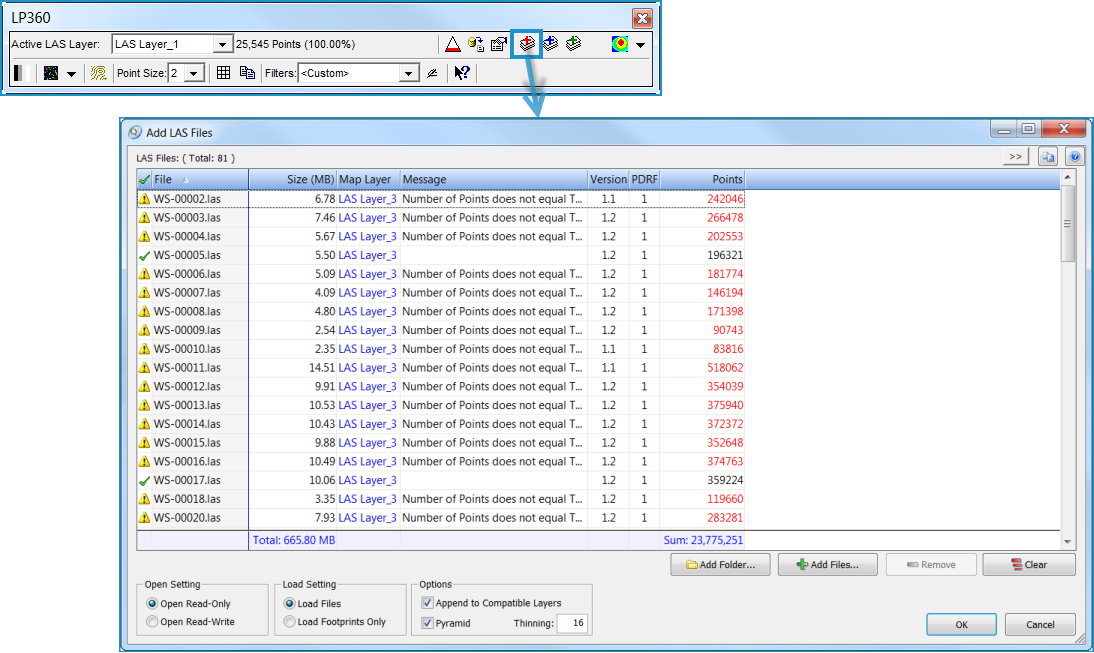

- Add Files Dialog Box
The new Add Files dialog gives you more control for opening files and managing layers at the time files are opened. You can also drag-and-drop from Windows Explorer into this dialog box.

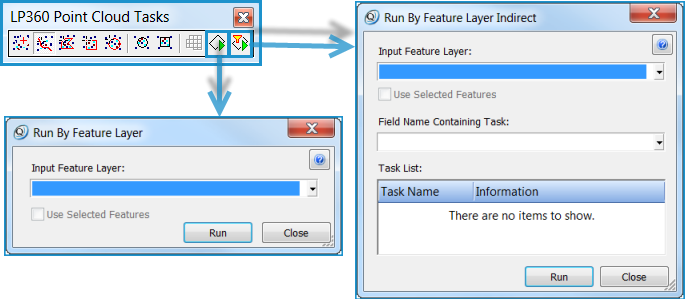

- Run by Feature Layer and Run by Feature Layer Indirect PCT Tools added as a replacement of the Execute Point Cloud Task Dialog
The Run by Feature Layer and Run by Feature Layer Indirect commands, available on the PCT toolbar, replace the Execute Point Cloud Task dialog. The new Run by Feature Layer command executes a task on a vector layer. The Run by Feature Layer Indirect command executes a task based on a field in the attribute table. As a part of these changes, the Run by Polygon command is used only by these two new commands, and the Project button (which previously opened the Execute Point Cloud Task dialog) now functions as a ‘run task’ button. It will operate on a task that has all inputs specified, even if that task does not operate on LAS data.
- New Auto-calculate Cell Size in Export
Cell size is now auto-calculated based on the density of the LAS data.
- Support for 256 classes for LAS 1.4
256 classes are now supported to coincide with LAS 1.4 format support.

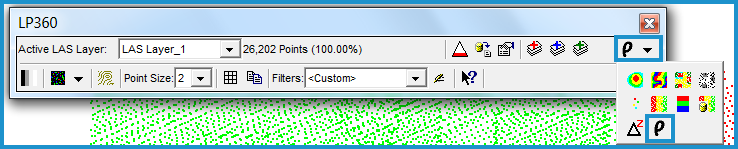

- Z (dz) Imagery Support
Real-time Delta Z (dz) imagery is now supported in real-time display in the map and can be exported from LIDAR data using the LP360 Export Wizard.
- Density Map Support
LP360 now includes support for real-time Density Map display. Density maps can also be exported using the LP360 Export Wizard.

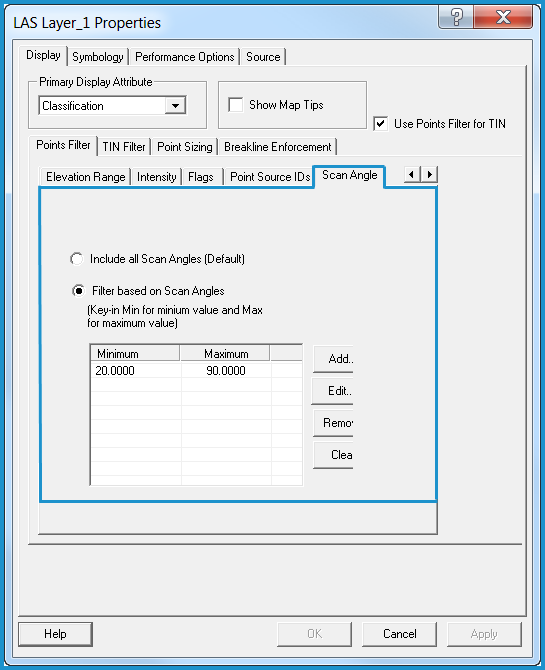

- Filter by Scan Angle Display Option
A new display option in the map is a Filter by Scan Angle option.
- Framing and Ladybug 360 Image Support
Support for framing cameras and Point Grey Research Ladybug images has been added. Note that this is an experimental feature that requires an image definition file. Geocue with the Mobile Mapping System (MMS) CuePac is currently required for creating this file. - Floating point and 32-bit per Channel support
Floating point and 32-bit per channel image display is now available. - ArcGIS Desktop 10.2 Compatible
This version of LP360 is compatible with ArcGIS Desktop version 10.2.
Modifications to Existing Features
- Point Cloud Task defaults to the active LAS Layer
The PCT now defaults to the active LAS Layer instead of having to choose it.
- Minimum cell size in LDExport is 0.25
The minimum cell size in LDExport is now 0. 25.
- LAS filenames included as an attribute in export
LAS filenames have been added as an attribute to index shapefile exports.
- Changed location of shape layer in TOC
The Shape layer in LP360 for Windows is now listed at the top of the TOC rather than the bottom of the TOC.
- LAS data now has recursive option to export
LAS data can now be read from a file or folder with a recursive option to export. Previously, only the active layer was used. Crash report availability
Crash reports are now available via LDExport. - Add Geometry Coordinates availability
The Add Geometry Coordinates are now available when using the Identify command in LP360 for Windows. - File boundary display default setting
The file boundary display is now turned off by default. - Display by Source ID command automatically populates symbology
The Display by Source ID command now automatically populates the symbology if it is the first time a user is running the command and sources have not yet been mapped. - Add to map option when exporting
A new check box on the last page of the Export Wizard allows you to add the outputs of an export to the map view after exporting the products. - Active point cloud tasks can now be run with Project button
The Execute by Project command on the Point Cloud Task toolbar now allows you to run the active point cloud task as long as all inputs and outputs of the task have been specified. - Ability to create ESRI Spatial Reference object
The ability to create an ESRI Spatial Reference object from an LP360 Spatial Reference object has been added. - Intensity min and max can now be equal
The min and max values on the Point Source ID tab, Intensity tab of the Properties dialog can now be equal. - Constant Z option for Summarize Z
A Constant Z option is now available for the Summarize Z Conflate method. - Extractor Point Cloud Tasks modification
All extractor point cloud tasks were modified so that output datasets are specified on the task itself.
Defect Fixes
The following defects have been corrected in this release:
- Significantly enhanced robustness for using large performance parameters in the 64-bit version (for workstations equipped with > 4GB of physical memory).
- Fixed an issue in which holes appeared in exported surface models if the convex hull boundaries for each LIDAR tile did not touch one another despite the use of breaklines.
- Fixed an issue in which the Drape command in the Profile window caused the control point to disappear or take a very long time to display.
- Fixed the tooltips that were not working in the 3D window.
- Fixed the Treat closed lines as polygons option to be unavailable if classification is not used.
- Fixed an issue in which contours were not clipping to boundaries.
- Fixed an issue in which digitizing a downstream constrained conflation task would produce an error message for editing points even though the conflation task does not classify points.
- Fixed an issue in which the LAS file remains open in LP360 for ArcGIS when the layer has been removed in the map.
- Fixed an EQC system error regarding an “unrecognized coordinate system.”
- Fixed an error in which user-selected features were enabled in LP360 for Windows when the features should not have been available for selection.
- Fixed an issue in which the control point name was not displayed correctly in the Control Point Report.
- Fixed an issue in which the annotation shape contained points rather than numbers.
- Fixed an issue on the Summarize Z dialog box that will now allow you to keep the Spatial Relationship option selected when you select Computing one or more Z values for the input geometry as a whole and other Z options (Mean, Minimum, Maximum, etc.)
- Fixed an issue in which some edge pixels were missing when exporting a binary raster.
- Fixed an error in which the License Administrator had incorrect captions on the buttons.
- Fixed an error that occurred when using the View Mapfile command when no project was selected.
- Fixed an issue in which projection information of data was displayed incorrectly when the Edit Project command was used.
- Fixed an issue in which running Ground Classification would leave gaps at processing tile edges.
- Fixed an issue in which the Import ASCII XYZ dialog box contained incorrect information.
- Fixed an issue in which appending QA/QC issues to a selected target shapefile, pre-existing issues would not show up until refreshing the map.
- Fixed an issue on the QA/QC toolbar that prevented users from selecting the swipe tool after using the jump tool without first selecting a different tool on the toolbar.
- Fixed an issue that occurred when using the QA/QC toolbar that prevented users from using shortcut keys, when the jump tool was selected, in the profile view by hovering over the profile window.
- Fixed an issue in which the flags option was not working correctly in the profile window.
- Fixed an issue in which the Class value in Symbology was reset to 3 for all classes.
- Fixed an issue in which the status message reported incorrectly while pyramiding.
- Fixed an issue for invalid files loading.
- Fixed an issue in which pyramiding crashed if the ESC key was pressed.
- Fixed an issue in which the Height above surface option would crash in the height filter when processing with large datasets.
