Customize Ribbon Menu – LP360

To customize the ribbon in LP360, you have several options depending on your version and the level of customization you need.

Access the Customize Ribbon Menu:
- Go to Options → Customize Ribbon Menu from the LP360 main interface.
- You can add new tabs, groups, and commands to tailor the ribbon to your workflow.
Add or Remove Tools:
- Use the built-in dialog to drag and drop commands into your custom ribbon.
- You can create new groups and assign tools to them.
Hide/Show Ribbon Tabs:
- If the ribbon tab has a checkmark next to its name it is currently active and displayed.
Switching Ribbon Modes:
- If you're using a viewer-level license, the Simplified Viewer Ribbon is displayed by default.
- To access full customization, check in your full license via the License Manager and restart LP360.
Support Resources:
- The ribbon includes direct links to the LP360 Knowledge Base, Online Help, and License Manager for quick assistance.

Custom Tool Limitations:
- Some tools like Active LAS Layer/Filter Combos are not yet available in the customization dialog due to their complexity.
- Toolbars in 3-D and Profile Views are still based on older frameworks and cannot be customized yet. These will eventually be replaced with Immersive View-based versions.
Button Size and Layout:
- Currently, LP360 dynamically determines button size and caption placement. Customizing button size (e.g., making a “Save As” button large) is not yet supported.
Group Rearrangement Bug:
- Moving groups within the ribbon customization dialog may not work as expected. T

Navigate to the Options menu.
Select Customize Ribbon Menu. This opens the customization interface where you can modify the ribbon layout.

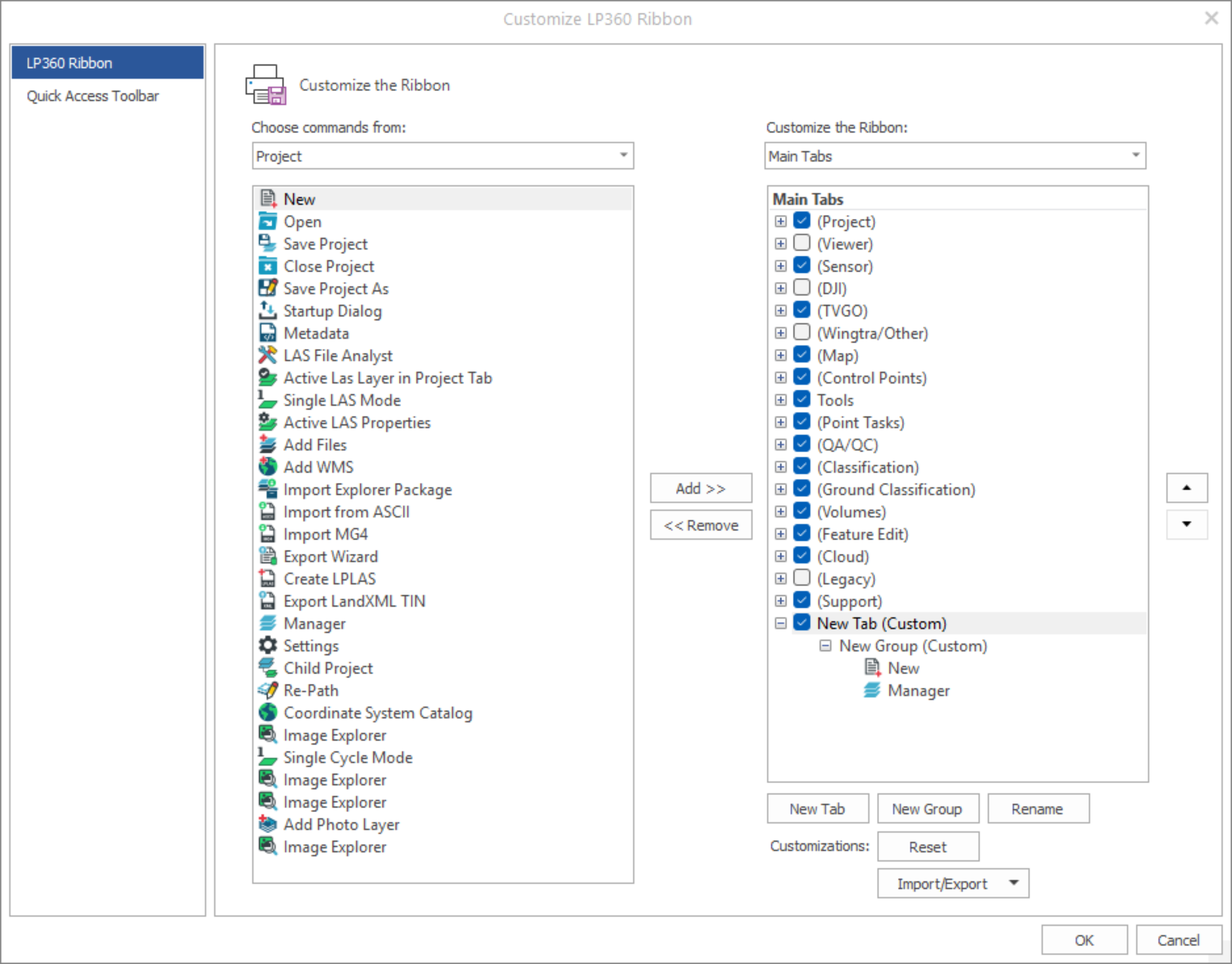

In the customization dialog:
- Click New Tab to create a blank tab.
- Rename the tab to something meaningful (e.g., “My Tools” or “QA Tools”) by right-clicking on it and selecting Rename.

Within your new tab, click New Group to organize tools into categories (e.g., “Import Tools”, “Analysis”, “Export”).
Rename each group as needed.

On the left side of the dialog, browse or search for commands you want to add.
Select a command and click Add to place it into the selected group on your custom tab.
Repeat this for each tool you want to include.

Use the Up and Down arrows to reorder tabs, groups, or commands.
Note: There is a known issue where moving groups may not always behave as expected. If you encounter problems, save your changes and reopen the dialog to retry.
