The Live View Point Source ID Tab

*Live View is available in all license levels of LP360.

Point Source ID is a data field on each point.  It is a 16 bit unsigned integer field (so can represent 0 to 65,535) that is typically used to indicate the flight line for LIDAR data.  It is usually populated with a value of zero for point clouds derived from imagery.

Point Source ID is not enforced in the LAS standard and therefore is sometimes used for proprietary purposes.

LP360 provides a display mode to display by Point Source ID.

The Point Source ID tab on Live View is used to color the display characteristics.

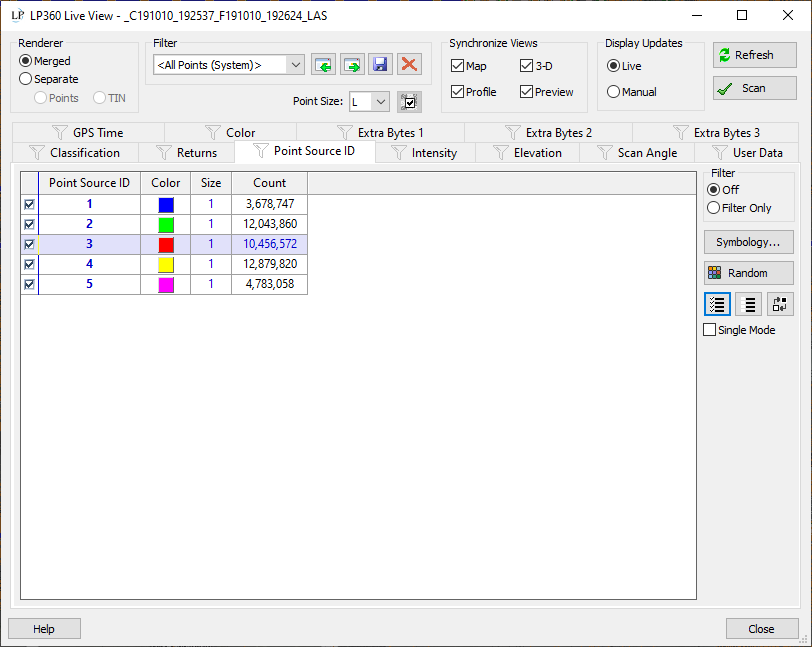

Overview of the Live View Point Source ID Tab

Point Source ID Columns

The Point Source ID tab column definitions are:

• • • Check – When set, allows points have this Point Source ID to pass through the filter (turns these points on)

    • Point Source ID – The number value of the Point Source ID.  This is typically zero for point clouds derived from Structure from Motion (SfM) data such as drone camera derived point clouds

    • Color – The color that will be displayed for this Point Source ID when the row is on and the View display mode is set to Display by Point Source ID

    • Size – The size this Point Source ID will be rendered when the Point Size selector is set to Legend

    • Count – The number of points in the Active LAS Layer that have this value of Point Source ID

Symbology

You can invoke the Symbology dialog by selecting one or more rows and pressing the Symbology tool or by double clicking a row.

Single Mode

Single Mode insures that only one row will be checked an a time.
