Intensity Filter Property Page
The Intensity Filter allows you to filter the points based on their intensity values. This can be done simply for display purposes and also for performing point cloud tasks. A point filter is defined using the Display Filter Property Pages.

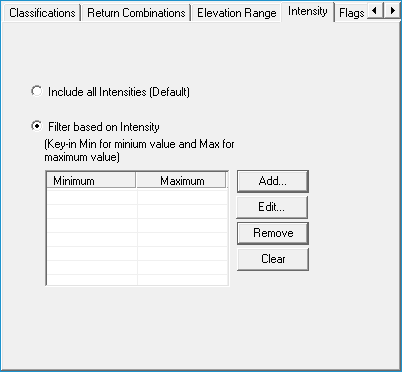

How to Modify the Intensity Filter Property Page
Option 1: Include all the Intensities (Default)
Selecting this option includes all the points to display or to process a point cloud task. This is the default option. When this option is selected, the "Add", "Edit", "Remove" and "Clear" buttons will be disabled.
Option 2: Filter Based on Intensity
This option lets you key-in the ranges of minimum and maximum intensity values to consider for display or to process a point cloud task.
When this option is selected, the "Add", "Remove" and "Clear" buttons will be enabled. The description of each button is given below.
Add - Clicking this button adds a new row in the adjacent list view for entering a minimum and maximum value.
Edit - Clicking this button allows you to edit the values within a row from the adjacent list view.
Remove -Clicking this button removes a row from the adjacent list view. This means the minimum and maximum values present in the row are removed from the Intensity Filter.
Clear - Clicking this button removes all the rows from the adjacent list view. This results in a filter with no minimum and maximum values.
Guidelines
You can enter any valid integer as a minimum value.
You can enter the word "Min" (not case sensitive) to set the minimum value of all points.
If a maximum value is already entered, then minimum value should be less than maximum value.
You can enter a valid integer as maximum value.
You can enter a word "Max" (not case sensitive) to set the maximum value of all the points.
If a minimum value is already entered, then the maximum value should be greater than the minimum value.
You can specify any number of minimum and maximum value pairs.
