How to display multiple LAS in a profile view

Problem

It is not possible to display two or more LAS layers in the Profile Window for comparing across LAS Layers.

Probable Resolution#1

It is possible to view multiple LAS Layers for comparison using the Immersive View .

How to view multiple LAS Layers using the Immersive View as a Profile View

1. Draw a Profile in the area of interest.
2. Make sure to have the Single LAS Mode  disabled.
3. In the Table of Contents (TOC), toggle On the LAS Layers for point clouds you wish to compare.
4. Open the Immersive View .
5. Select Clip to Profile Extent , which will then display in the IV only the point cloud contained in the Profile View.
6. Change the Immersive View to Display by File .
7. Rotate the Immersive View so the viewer is perpendicular to the profile line (i.e. to see it in the same way as the profile view).

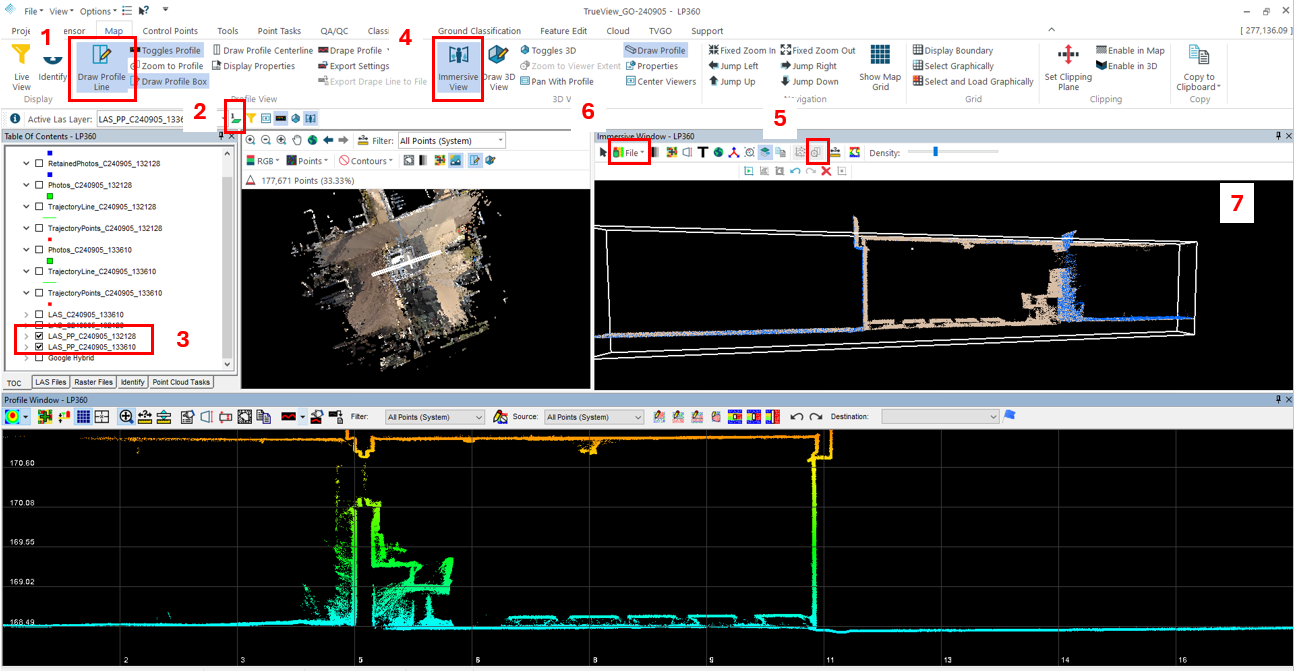

Figure 1: Using Clip Immersive View to Profile Extent
