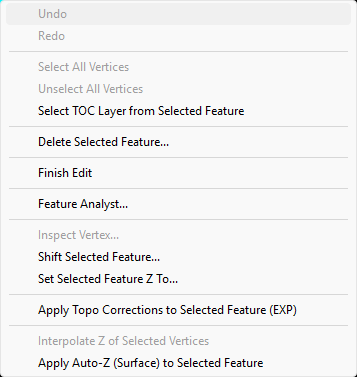

The Feature Edit right-click menu contains commands associated with feature manipulation. The Feature Edit right-click menu is opened by selecting one or more features in the Map View or Profile View and right-clicking.

Select/Unselect All Vertices - Allows the user to Select/Unselect all the feature's vertices when in Edit mode.

Finish Edit - Completes the edit operation and unselects features

Shift Selected Vertex - Opens the Shift Selected Vertex dialog (shown below) where you can shift selected vertices in the x, y, and z directions.

Shift Selected Vertices dialog

Inspect Vertex - This is enabled when one vertex is selected. Opens the Inspect Vertex dialog (shown below) where you can see the x, y, and z location of the selected vertex.

Inspect Vertex dialog

Set Selected Vertex To - Opens the Set Selected Vertex dialog (shown below) where you can set selected vertices in the x, y, and z directions.

Shift Selected Vertices dialog

Apply Topo Corrections to Selected Feature (EXP) - Applies Topological Corrections set in Feature Edit Options to the one selected feature.

Apply Auto-Z to Selected Vertex - Applies an automatic z value to selected vertices. The Auto Z mode shows in parenthesis here when turned on.

Interpolate Z of Selected Vertices - Applies interpolated values for selected vertices.

Undo / Redo

Delete Selected Vertex

How to Use the Feature Edit Right Click Menu

1. With a feature edit tool selected, right-click with the map window.

2. Select a command from the Feature Edit right-click menu.
