Quick Set for the Control Points List

The Quick Set control on the Control Points Report dialog box lets you select points in the table based on type. It is simply a quick way to select All points, if they are not already selected; Control to select all control points only; or Check to select all check points only. You will see the points checked in the very left column of the table based on your selection.

Learn more about the control points list

How to Use Quick Set

1. Click the Control Point Report command on the Control Points toolbar.

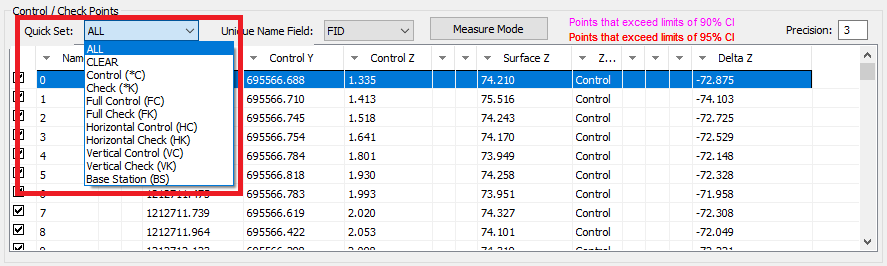

2. On the Control Points Report dialog, click the arrow next to the Quick Set list.

3. Select either ALL, CLEAR, Check, Control, Full Control, Full Check, Horizontal Control, Horizontal Check, Vertical Control, Vertical Check to specify which points are selected in the control point list.
