Calculating Delta Z for Control Points

The Delta Z value is calculated by probing X and Y points, either the control X,Y or the measured X,Y set in the Z Probe Location setting. The results are displayed in the control point table.

Learn more about Delta Z imagery

How to Calculate Delta Z

1. Click the Control Point Report command on the Control Points toolbar.

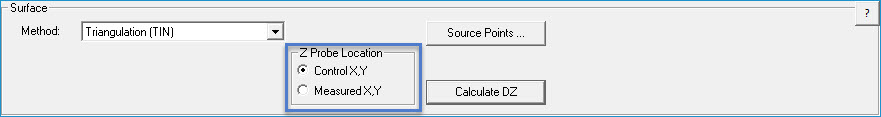

2. On the Control Points Report dialog, select the Z Probe Location. See Z Probe Location for more information.

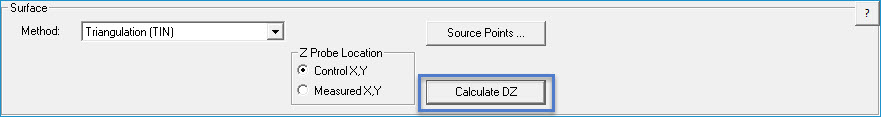

3. Click Calculate DZ. The results will be displayed in the control point table.
