Displaying the Profile in the 3D Window

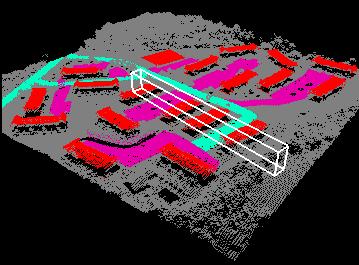

The profile is displayed in the 3D window as a wire frame box representing the three dimensional volume occupied by the profile window. The bottom and top of the box are defined by the bottom and top elevations displayed in the profile window.

How to Display the Profile in the 3D Window

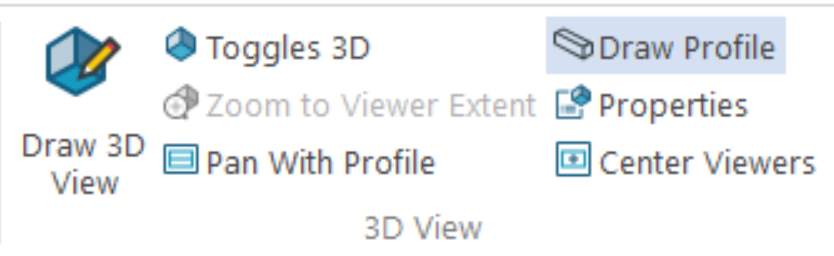

1. Click the Draw Profile Box command to toggle the setting.

2. If the button stays pressed, the wire frame box will be displayed in the 3D window.
