Drawing the Profile Centerline in 2D View

After a profile line has been established using the Draw Profile Line tool in LP360 Standalone for Windows, you may display or hide the resulting profile centerline from the 2D map view.

How to Draw the Profile Centerline in 2D View

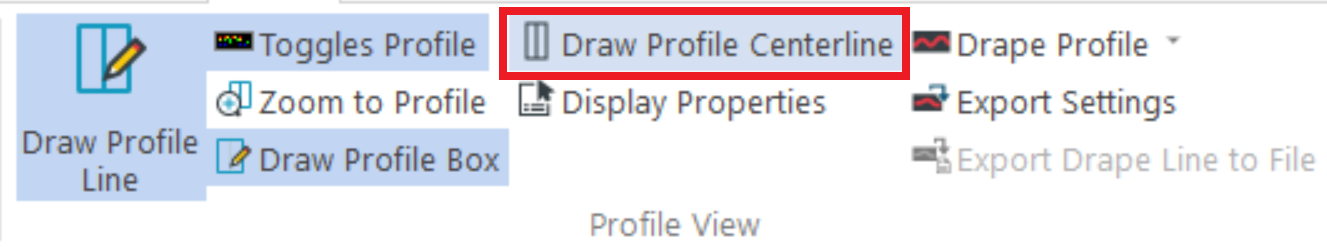

1. Click the Draw the Profile Centerline in 2D View tool (LP360 Standalone) on the Viewer Integration toolbar. (If the tool is not selectable, make sure that the Draw the Profile Box in 2D View tool on the Viewer Integration toolbar is selected first.)

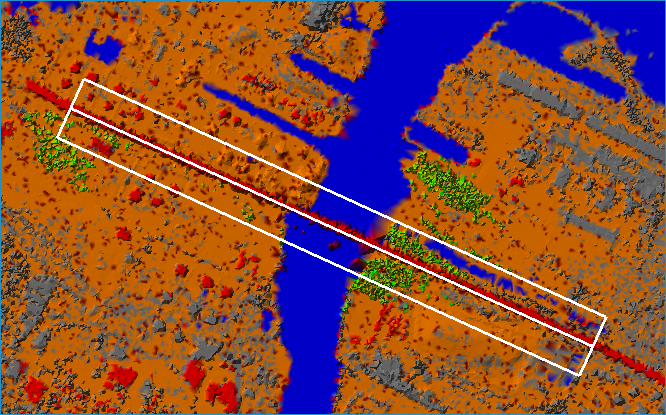

2. If the button is pressed, the profile centerline is displayed on the 2D map view.

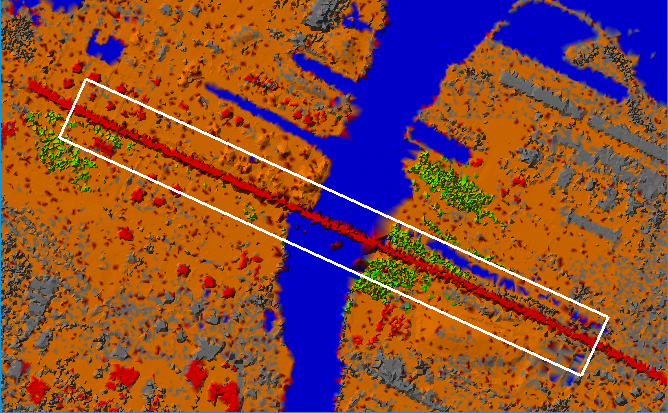

If the button is not pressed, the profile centerline is hidden.
